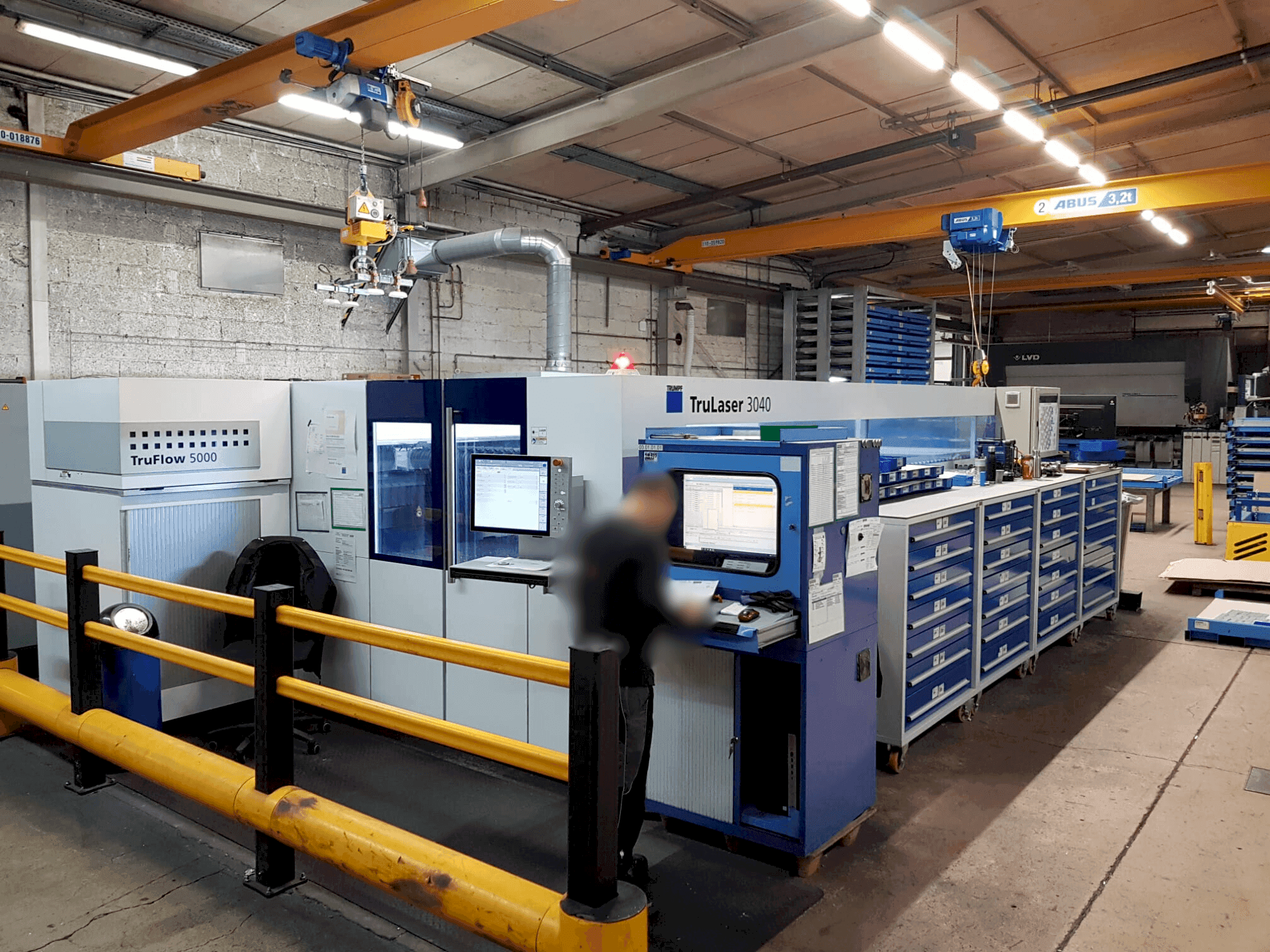

Front view of TRUMPF TruLaser 3040 5kW CO2 machine
Front view of TRUMPF TruLaser 3040 5kW CO2 machine

TRUMPF - TruLaser 3040 5kW CO2DE-LAS-TRU-2019-00001

Rs. 24,516,800
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This TRUMPF TruLaser 3040 5kW CO2 Laser cutting machine was manufactured in 2019 in Germany. It is equipped with a 5kW CO2 laser and can process a max. sheet size of 4000 x 2000 mm. In total it has 8,116 cutting hours.

Overview

  • brand: TRUMPF
  • year: 2019
  • MODEL: TruLaser 3040 5kW CO2
  • production hours: 8116
  • application type: Cutting
  • Location: Germany
  • machine type: CO2 Laser Cutting Machine
  • availability: Immediately
  • control unit brand: SIEMENS

Technical Information - TRUMPF TruLaser 3040 5kW CO2

Control Unit

  • Model: SINUMERIK 840D SL
  • Brand: SIEMENS

Main drive

  • Laserpower: 5 KW
  • Laser type: CO2

Machine specific data

  • Laser Cutting Head: Lens cutting head with 250mm focal length

    Additional equipment

    • - TruFlow 5000 with optimized standby
    • - Nozzle changer
    • - Beam adjustment
    • - Smart Collision Prevention
    • - BrightLine // DetectLine
    • - Integrated camera 1 for process monitoring
    • - Drop & Cut
    • - Mobile Control App
    • - CoolLine
    • - Crosswise conveyor + container

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Resonator: 5. 0kw co2
        • - Max sheet size: 4000x2000mm
        • - Maintenance-free radial turbine blower // radio-frequency excitation
        • - Laser power control // logbook function laser
        • - Lens cutting head with 250mm focal length
        • - Universal quickchange device for cutting head (uti)
        • - Lensline with status check
        • - Controlline: automatic height control and sheet edge detection
        • - Lens with rfid chip

      Extra information

      • - USB - interface // RJ45 network connection // Wireless Operation Point (base for Visual Online Support) // CE label // Light barriers // Multi chamber exhaust system // Compact dust extractor // Machine enclosure with Macrolon panels

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
