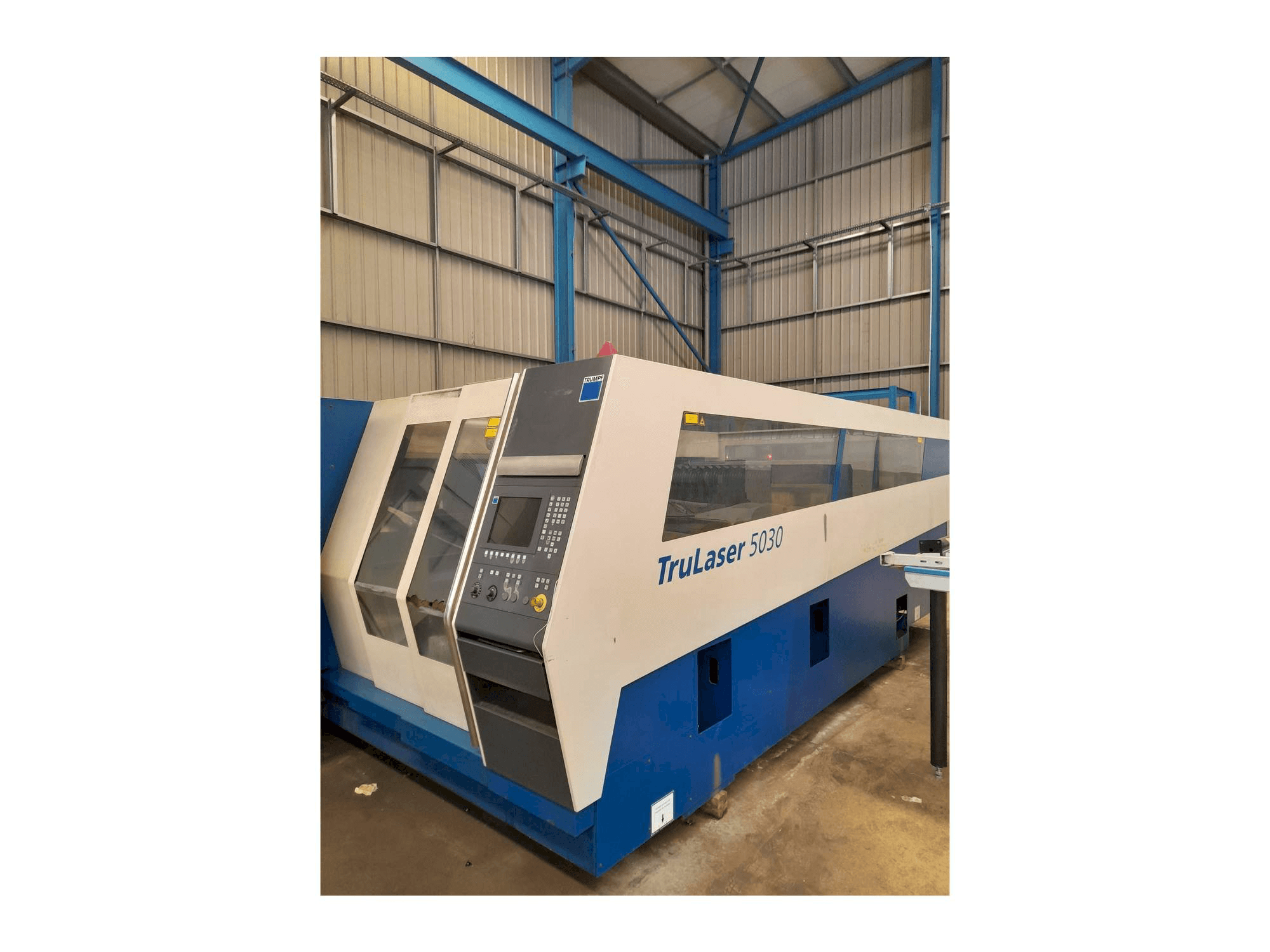

➤ Pre-Owned Trumpf TruLaser 5030 Laser Cutting Machine

Show in original language

This Trumpf TruLaser 5030 Laser cutting machine was made in 2007 in Switzerland and has 55015 production hours. It is equipped with a SIEMENS SINUMERIK 840D control unit. The machine has a laser power of 6 kW.

Overview

brand: TRUMPF
year: 2007
MODEL: TruLaser 5030
production hours: 55015
application type: Cutting
Location: Spain
machine type: CO2 Laser Cutting Machine
availability: Sold
control unit brand: SIEMENS

Technical Information - TRUMPF TruLaser 5030

General Data

Measurements width: 11250 MM
Measurements depth: 4600 MM
Measurements height: 2400 MM
Machine weight: 12500 KG

Control Unit

Model: SINUMERIK 840D
Brand: SIEMENS

Main drive

Laserpower: 6 KW
Laser type: CO2
Laser brand: TRUFLOW

Movement

X-AXIS Movement: 3000 MM
Y-AXIS Movement: 1500 MM
Z-AXIS Movement: 115 MM

Workpiece

Workpiece x: 3000 MM
Workpiece y: 1500 MM
Workpiece weight: 900 KG

Max Material thickness

Steel: 25 MM
Stainless steel: 20 MM
Aluminum: 15 MM

Media

Main electronic connection: 400 V / 50 HZ
Air pressure: 7-10 BAR

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
