➤ Pre-Owned Trumpf TruLaser 5040 Laser Cutting Machine

Show in original language

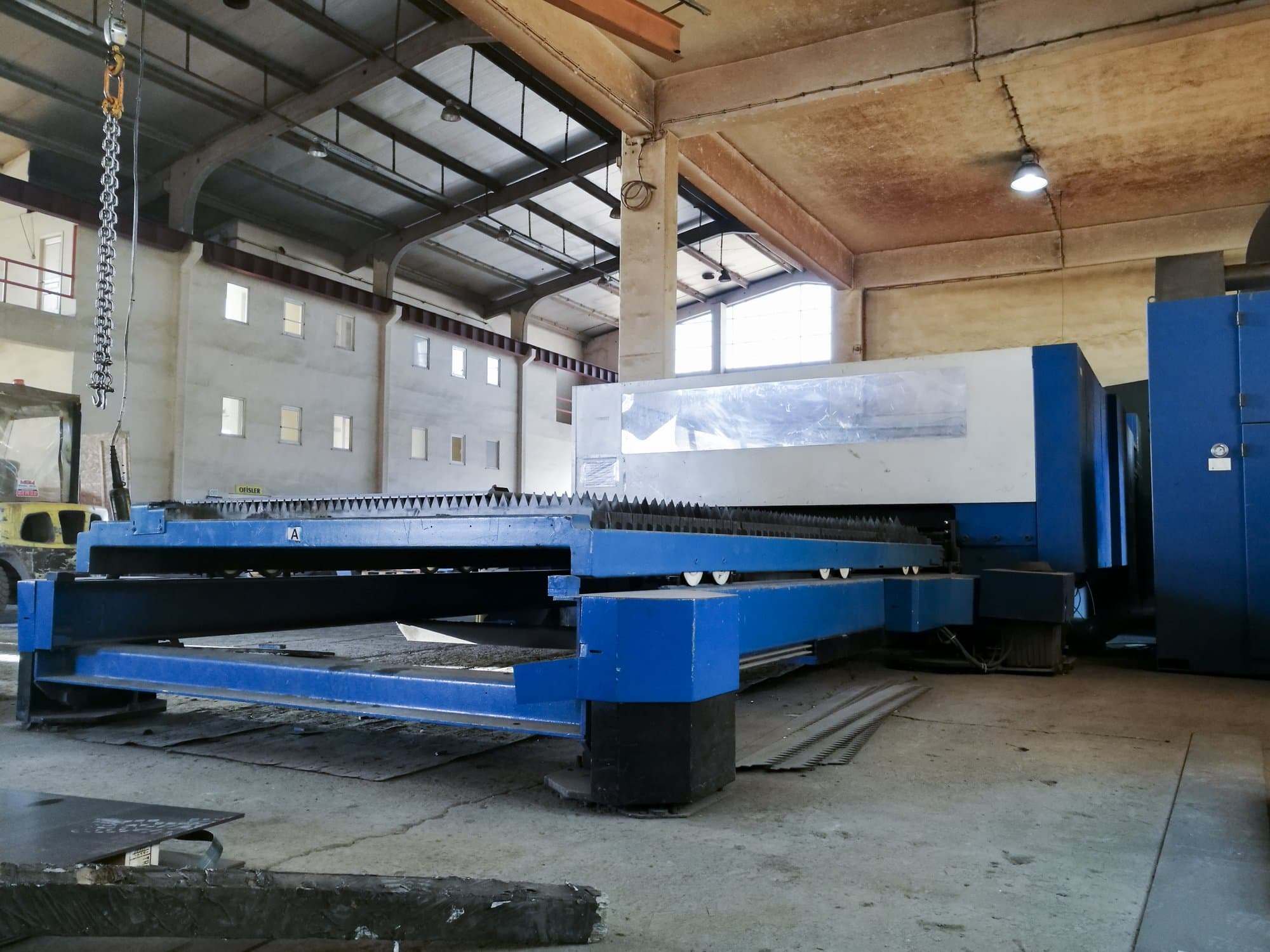

This Trumpf TruLaser 5040 Laser Cutting Machine from 2007 is a perfect equipment for heavy metal work. With a production record of 57734 hours, the machine is operated through a SIEMENS SINUMERIK 840D Control unit and stands out for its high-power German-manufactured quality laser. Its high Axis speed (measurable in a Working feed of 200 m/min on the Y, X and Z Axis) and positioning dynamics result in an increased productivity and a minimal downtime.

Overview

brand: TRUMPF
year: 2007
MODEL: TruLaser 5040
production hours: 57734
application type: Cutting
Location: Turkey
machine type: CO2 Laser Cutting Machine
availability: Sold
control unit brand: SIEMENS

Technical Information - TRUMPF TruLaser 5040

General Data

Measurements width: 13000 mm
Measurements depth: 5400 mm
Measurements height: 2400 mm
Machine weight: 14000 kg

Control Unit

Model: SINUMERIK 840D
Brand: SIEMENS

Main drive

Laserpower: 5 kW
Laser type: Co2

Movement

X-AXIS Movement: 4000 mm
X-AXIS Working Feed: 200 m/min
Y-AXIS Movement: 2000 mm
Y-AXIS Working Feed: 200 m/min
Z-AXIS Movement: 115 mm
Z-AXIS Working Feed: 200 m/min
X-Y-Simultaneous Working Feed: 300 m/min
Pa Accuracy: 0.1
Ps Accuracy: 0.03

Workpiece

Workpiece weight: 1700 kg

Max Material thickness

Steel: 25 mm
Stainless steel: 20 mm
Aluminum: 12 mm

Media

Main electronic connection: 400 V / 50 Hz
Power consumption: 105 kVA
Air pressure: 7-10 bar
Chip conveyor: Yes

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
