TRUMPF - TruLaser L3030CN-LAS-TRU-2009-00002
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Sheet Metal Machinery
- ➤ Trumpf TruLaser L3030 Laser Cutting Machine - Used

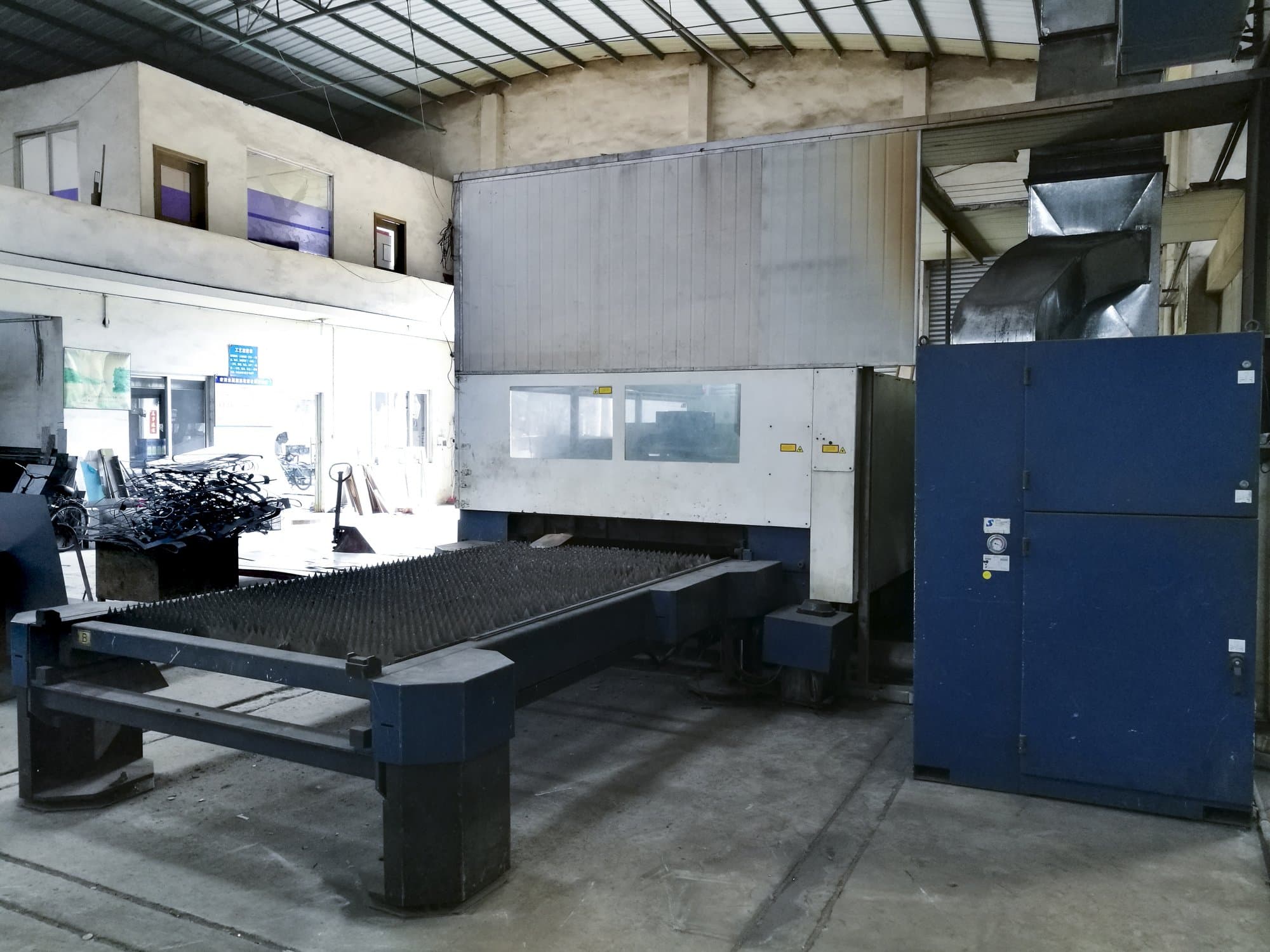

This Trumpf TruLaser L3030 Laser Cutting Machine was produced in 2009 and holds a record of approximately 30660 working hours. This real all-rounder equipment is operated through a SIEMENS SINUMERIK 840D Control unit and features a highly-reliable laser of German manufacture. As additional pieces, cutting nozzles and two laser-cutting heads (f=130 and f=250) are included.
Overview
- brand: TRUMPF
- year: 2009
- MODEL: TruLaser L3030
- production hours: 30660
- application type: Cutting
- Location: China
- machine type: CO2 Laser Cutting Machine
- control unit brand: SIEMENS
Technical Information - TRUMPF TruLaser L3030
Control Unit
- Control Brand: SIEMENS
- Control Model: SINUMERIK 840D
Dimensions
- Machine Depth: 3400 mm
- Machine Height: 2200 mm
- Machine Weight: 12000 kg
- Table Length: 3000 mm
- Table Width: 1500 mm
Movement
- X-axis Travel: 3000 mm
- Y-axis Travel: 1500 mm
- Z-axis Travel: 115 mm
Technical Specification
- Laser Power: 3.2 kW
Additional Information
Additional equipment
- Laser cutting head f = 130
- Laser cutting head f = 250
- Cutting nozzles
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
