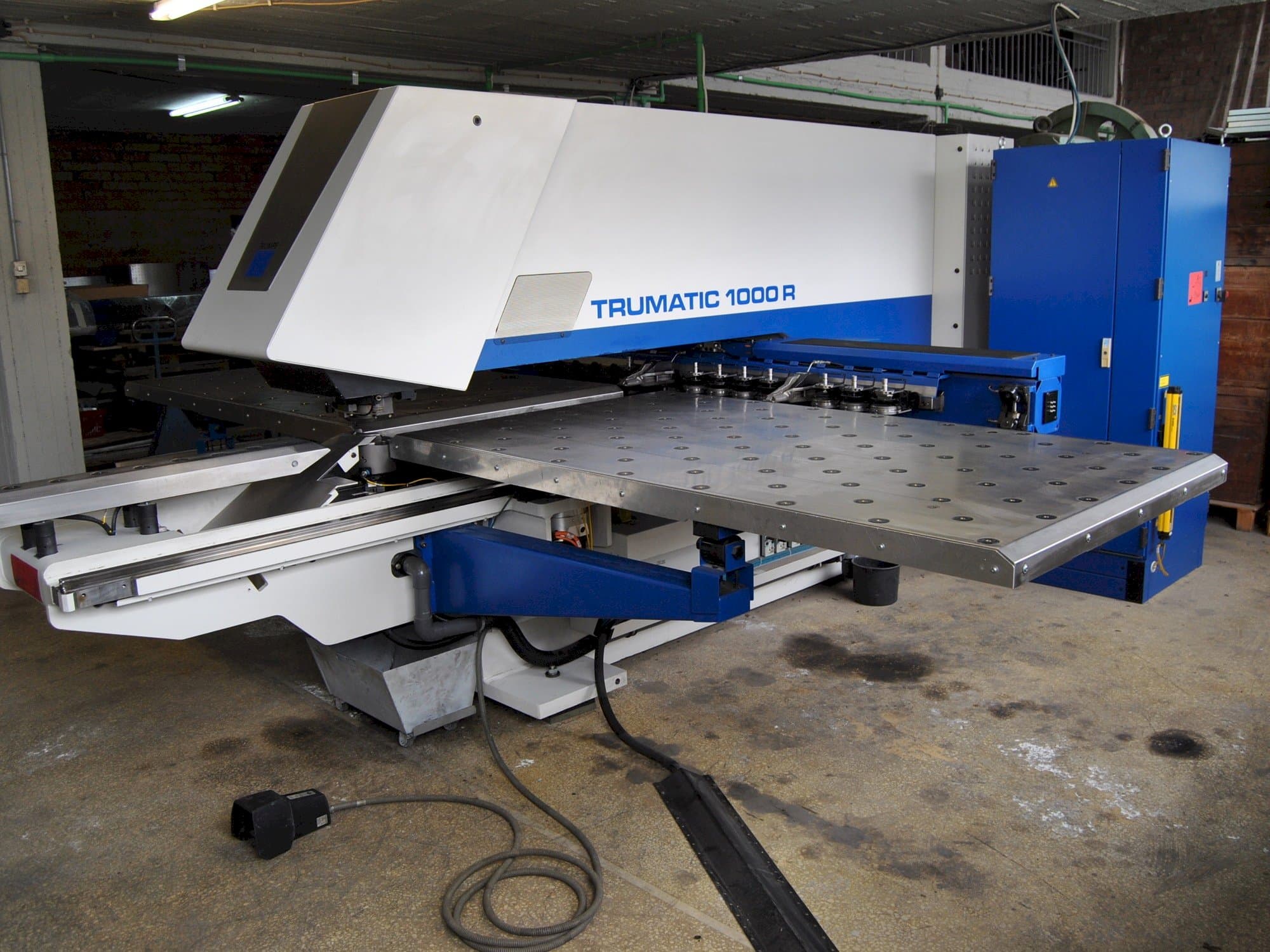

Front view of Trumpf Trumatic 1000 R machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

TRUMPF Trumatic 1000 R

Photo Gallery

TRUMPF - Trumatic 1000 RGR-PUN-TRU-2007-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
Trumpf Trumatic 1000 R Punching Machine

Show in original language

This Trumpf Trumatic 1000 R Punching Machine from 2007. It counts with approximately 3900 production hours since then. It is operated through a BOSCH PNC-P control unit. This machine includes a punching force of 165 kN.

Overview

brand: TRUMPF
year: 2007
MODEL: Trumatic 1000 R
production hours: 3900
application type: Punching
Location: Greece
machine type: CNC Punch Press
control unit brand: BOSCH

Technical Information - TRUMPF Trumatic 1000 R

General Data

Measurements width: 6000 mm
Measurements depth: 5825 mm
Measurements height: 2155 mm
Machine weight: 8000 kg

Control Unit

Model: PNC-P
Brand: BOSCH

Main drive

Punching force: 165 kN
Maximum sheet thickness: 6,4 mm

Movement

X-AXIS Movement: 2070 mm
Y-AXIS Movement: 1280 mm

Workpiece

Workpiece weight: 150 kg

Tools

Number of stations: 15
Number of clamps: 2
Max tool diameter: 76,2 mm

Media

Power consumption: 14 kVA

Additional Information

Machine history

Material thickness: 6,4 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
