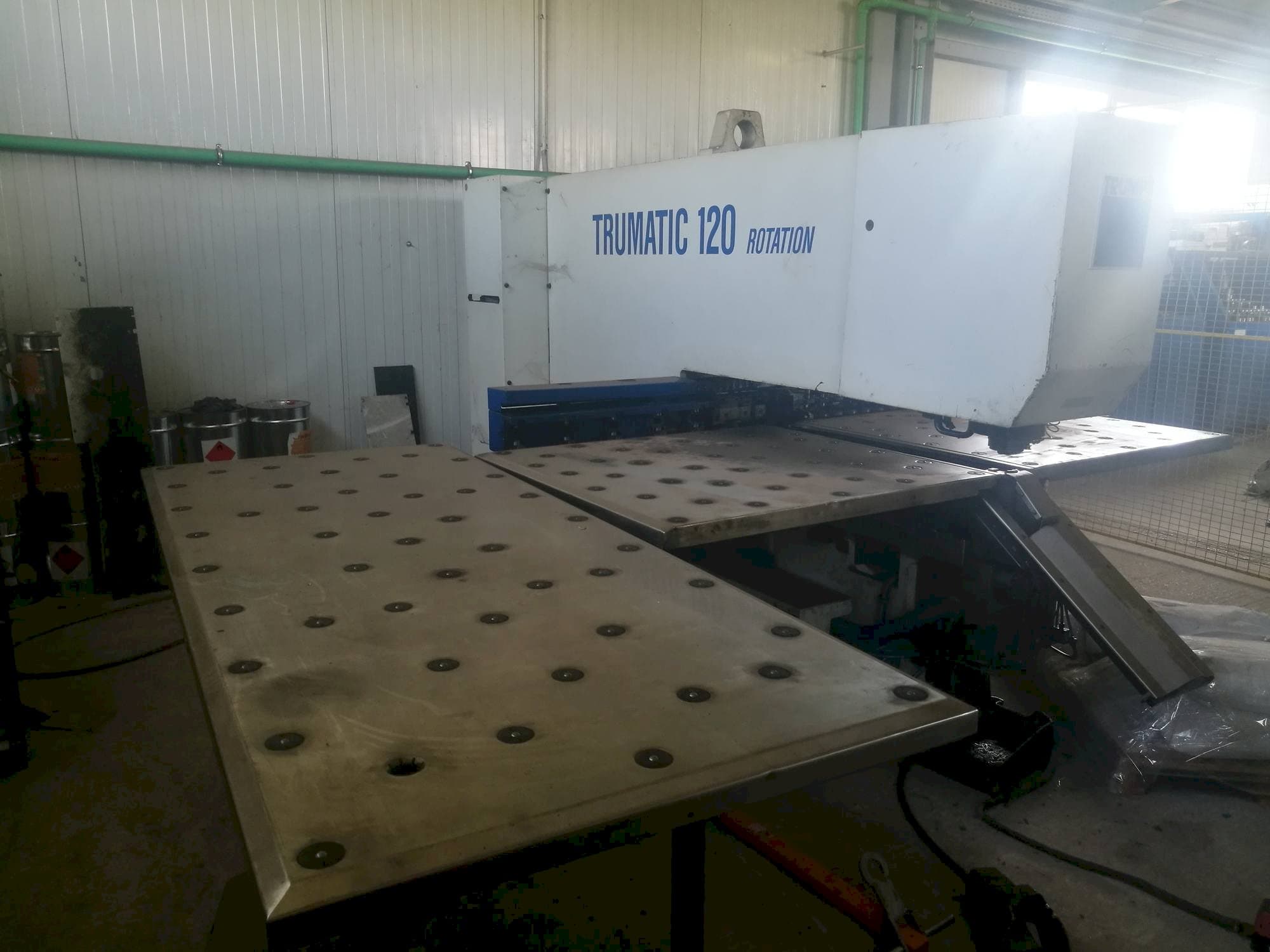

Front view of Trumpf Trumatic 120R machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

TRUMPF Trumatic 120R

Photo Gallery

TRUMPF - Trumatic 120RHR-PUN-TRU-1992-00002

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
➤ Pre-Owned Trumpf Trumatic 120R Punching Machine

Show in original language

This Trumpf Trumatic 120R Punching Machine from 1992 was made in Germany. It counts with 32000 production hours since then. Operated through a BOSCH 220 control unit. This machine includes a punching force of 150 kN. During the past, it has mainly worked with steel up to 4 mm of thickness. Additional tools of 20 pcs and an extra side table.

Overview

brand: TRUMPF
year: 1992
MODEL: Trumatic 120R
production hours: 32000
application type: Punching
Location: Croatia
machine type: Turret Punch Press
availability: Sold
control unit brand: BOSCH

Technical Information - TRUMPF Trumatic 120R

General Data

Measurements width: 3800 mm
Measurements depth: 3500 mm
Measurements height: 2000 mm
Machine weight: 4300 kg

Control Unit

Model: 220
CNC main language: English
CNC language customizable: Yes
Brand: BOSCH

Main drive

Punching force: 150 kN

Movement

X-AXIS Movement: 1000 mm
Y-AXIS Movement: 1000 mm

Tools

Number of index: 1
Number of stations: 1
Slots in storage: 9+2

Max Material thickness

Steel: 4 mm
Stainless steel: 2 mm

Media

Main electronic connection: 380V 50Hz
Pump drive power: 9 kVA

Additional Information

Machine history

Material type: Steel
Material thickness: 1 mm
End product: Metal cabinets
Industries: Industrial interiors

Machine Benefits

Technical Machine Benefits:
- - Tool 20 pcs
- - Extra side table 2200x900mm
- - Fast sheet perforation
- - Have repositioning in x axis

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
