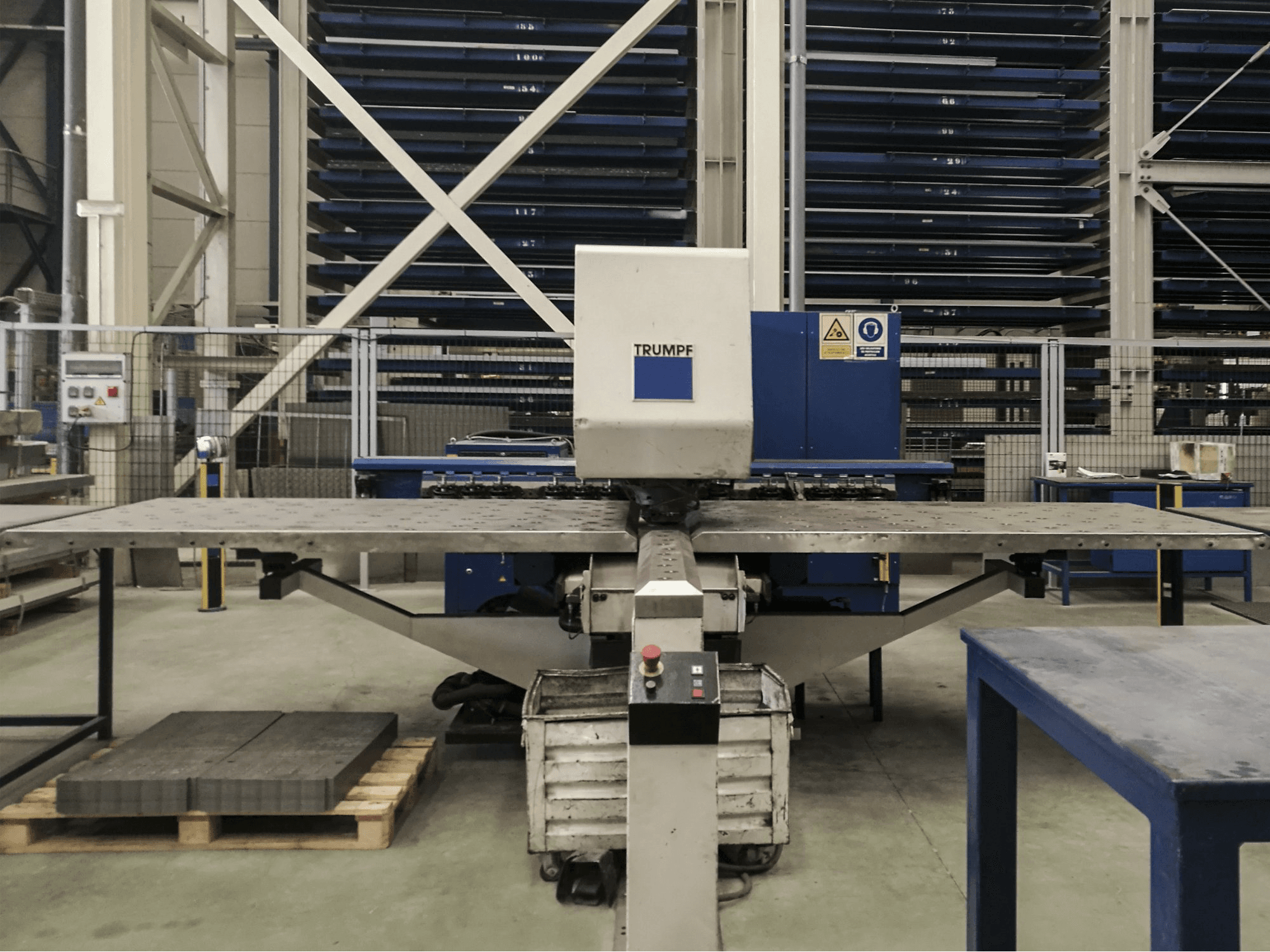

Front view of Trumpf Trumatic 200 Machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

TRUMPF Trumatic 200

Photo Gallery

TRUMPF - Trumatic 200ES-PUN-TRU-2001-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
Trumpf Trumatic 200 Turret Punching Machine

Show in original language

This Trumpf Trumatic 200 Turret Punching Machine was manufactured in the year 2001 in Germany and has a working record of 24998 production hours. Equipped with a Bosch Trumagraph CC220 Control unit, this machine stands out due to its versatility and agility and comes with a wide selection of additional tools. In the past, this unit has mainly processed metal sheets up to 4 mm of thickness.

Overview

brand: TRUMPF
year: 2001
MODEL: Trumatic 200
production hours: 24998
application type: Punching
Location: Spain
machine type: CNC Punch Press
control unit brand: BOSCH

Technical Information - TRUMPF Trumatic 200

General Data

Measurements width: 2440 mm
Measurements depth: 2670 mm
Measurements height: 2080 mm
Machine weight: 8000 kg

Control Unit

Model: Trumagraph CC220
Brand: BOSCH

Main drive

Punching force: 165 kN
Maximum sheet thickness: 6.4 mm

Movement

X-AXIS Movement: 2070 mm
Y-AXIS Movement: 1280 mm

Workpiece

Workpiece weight: 150 kg

Table

Max punching diameter: 76.2 mm

Tools

Number of stations: 15+2

Media

Main electronic connection: 400 V / 50 Hz / 3 P
Power consumption: 14 kVA
Air pressure: 6

Additional equipment

- Tools

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
