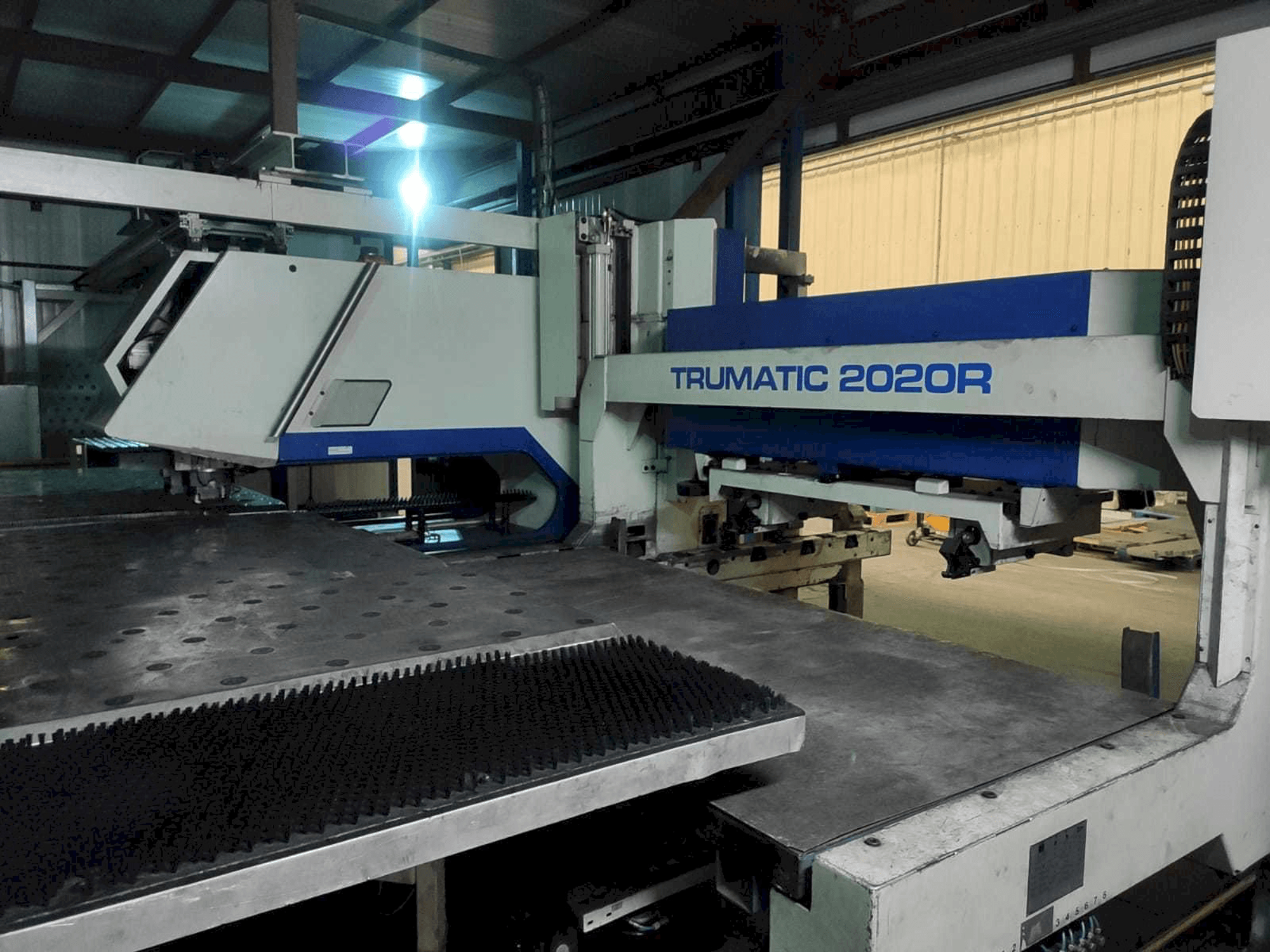

Front view of Trumpf Trumatic 2020R machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

TRUMPF Trumatic 2020R

Photo Gallery

TRUMPF - Trumatic 2020RES-PUN-TRU-2003-00002

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
Trumpf Trumatic 2020R Punching Machine

Show in original language

This Trumpf Trumatic 2020R Punching Machine was built in Germany in the year 2003. It has been working for 46233 production hours since then. It is equipped with a Bosch Type 3 control unit. This machine has a punching force of 180 kN, and can works with a max sheet thickness of 6,4mm. It includes a sheet master.

Overview

brand: TRUMPF
year: 2003
MODEL: Trumatic 2020R
production hours: 46233
application type: Punching
Location: Spain
machine type: Punch-Laser Combination
availability: Sold
control unit brand: BOSCH

Technical Information - TRUMPF Trumatic 2020R

General Data

Measurements width: 7400 mm
Measurements depth: 6400 mm
Measurements height: 2600 mm
Machine weight: 15000 kg

Control Unit

Model: Type 3
CNC main language: Spanish
CNC language customizable: Yes
Brand: BOSCH

Main drive

Punching force: 180 kN
Maximum sheet thickness: 6,4 mm

Movement

X-AXIS Movement: 2500 mm
Y-AXIS Movement: 1250 mm

Tools

Number of stations: 19

Additional equipment

- SheetMaster

Additional Information

Machine Benefits

Qualitative Machine Benefits:
- - Good conditions

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
