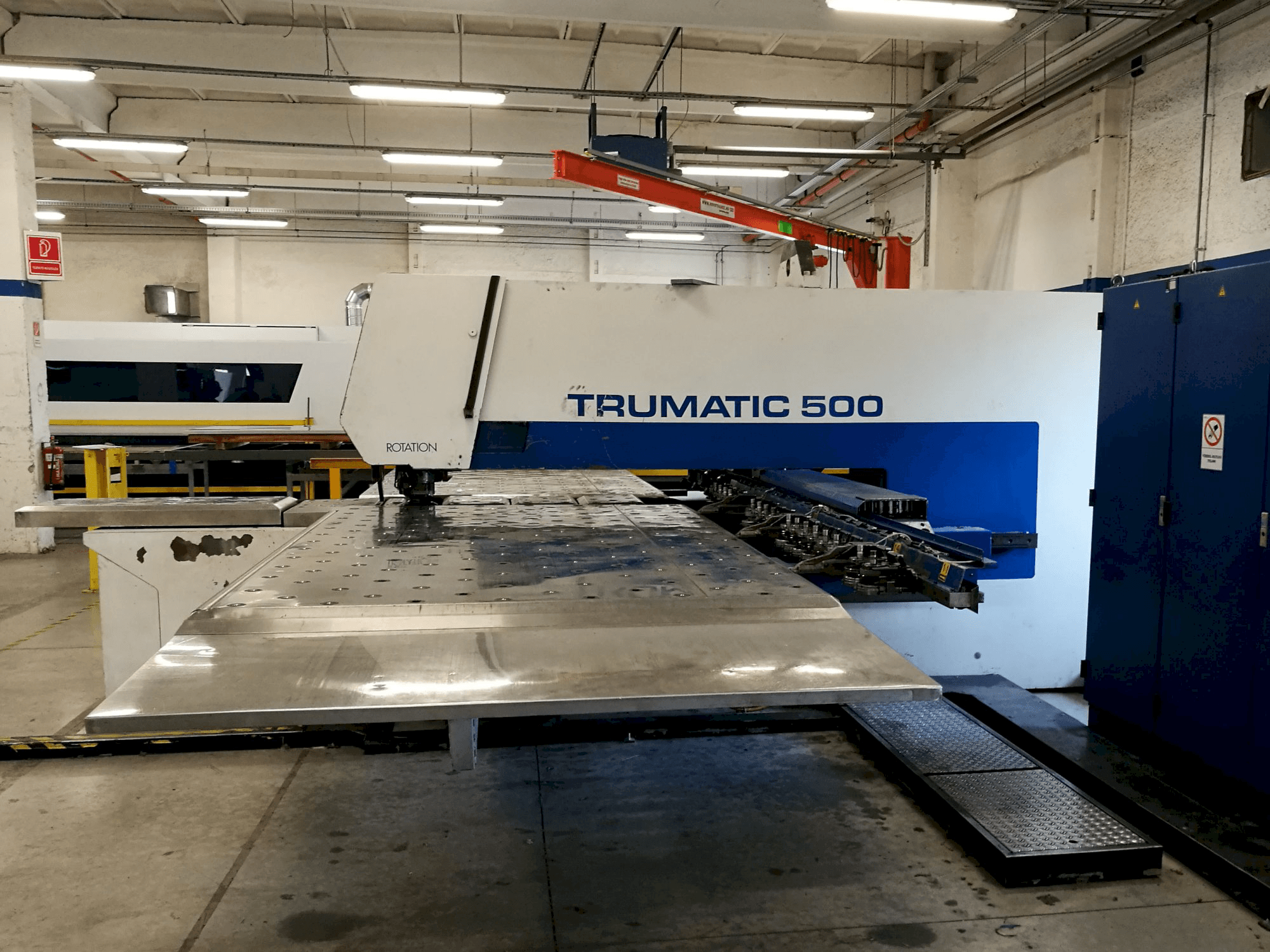

Left side view of Trumpf Trumatic 500 R Machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

TRUMPF Trumatic 500 R

Photo Gallery

TRUMPF - Trumatic 500 RHU-PUN-TRU-1994-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
➤ Used Trumpf Trumatic 500 R Turret Punching Machine

Show in original language

This Trumpf Trumatic 500 R Turret Punching Machine was manufactured in 1994 in Germany and has an overall working time of 110000 production hours. Operated through a Bosch CC220 Control unit, this machine has mainly worked with 1 mm steel and stainless steel sheets during the past. This model is equipped with a large table ( 3000 x 1600 ) and it incorporates a multitool function, as well as a range of movements. It stands out due to its air pressure of 6 bar and its well maintained status, as it was regularly inspected.

Overview

brand: TRUMPF
year: 1994
MODEL: Trumatic 500 R
production hours: 110000
application type: Punching
Location: Hungary
machine type: Punch-Laser Combination
control unit brand: BOSCH

Technical Information - TRUMPF Trumatic 500 R

General Data

Measurements width: 6900 mm
Measurements depth: 5900 mm
Measurements height: 2200 mm
Machine weight: 11050 kg

Control Unit

Model: CC220
CNC main language: English
Brand: BOSCH

Main drive

Punching force: 220 kN
Maximum sheet thickness: 6 mm

Movement

X-AXIS Movement: 3000 mm
Y-AXIS Movement: 1500 mm

Workpiece

Workpiece x: 3000 mm
Workpiece y: 1500 mm
Workpiece z: 8 mm
Workpiece weight: 150 kg

Tools

Number of stations: 21

Max Material thickness

Steel: 6 mm
Stainless steel: 3 mm
Aluminum: 2 mm

Media

Main electronic connection: 400 V
Power consumption: 19 kVA
Internal cooling: Yes

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
