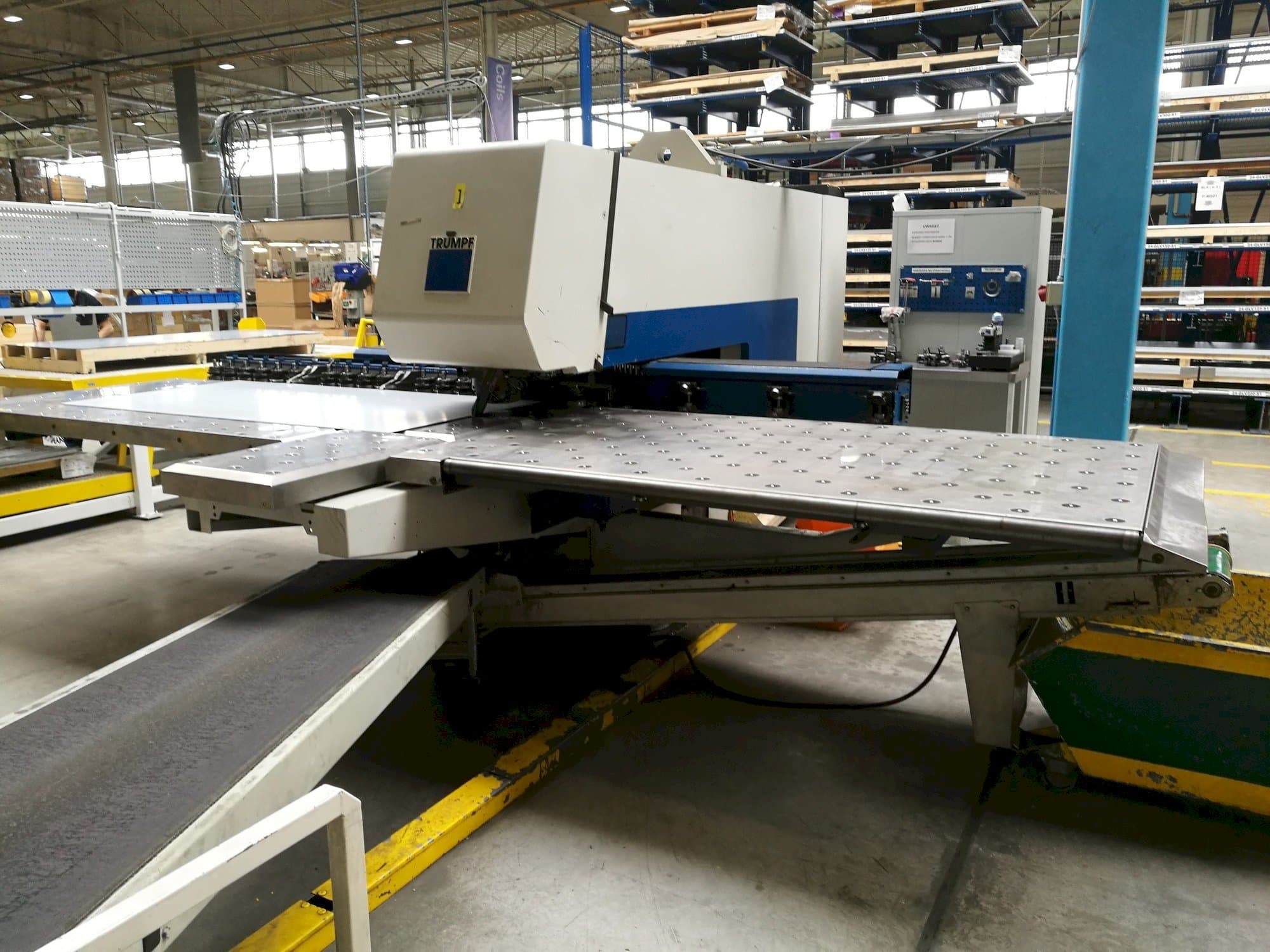

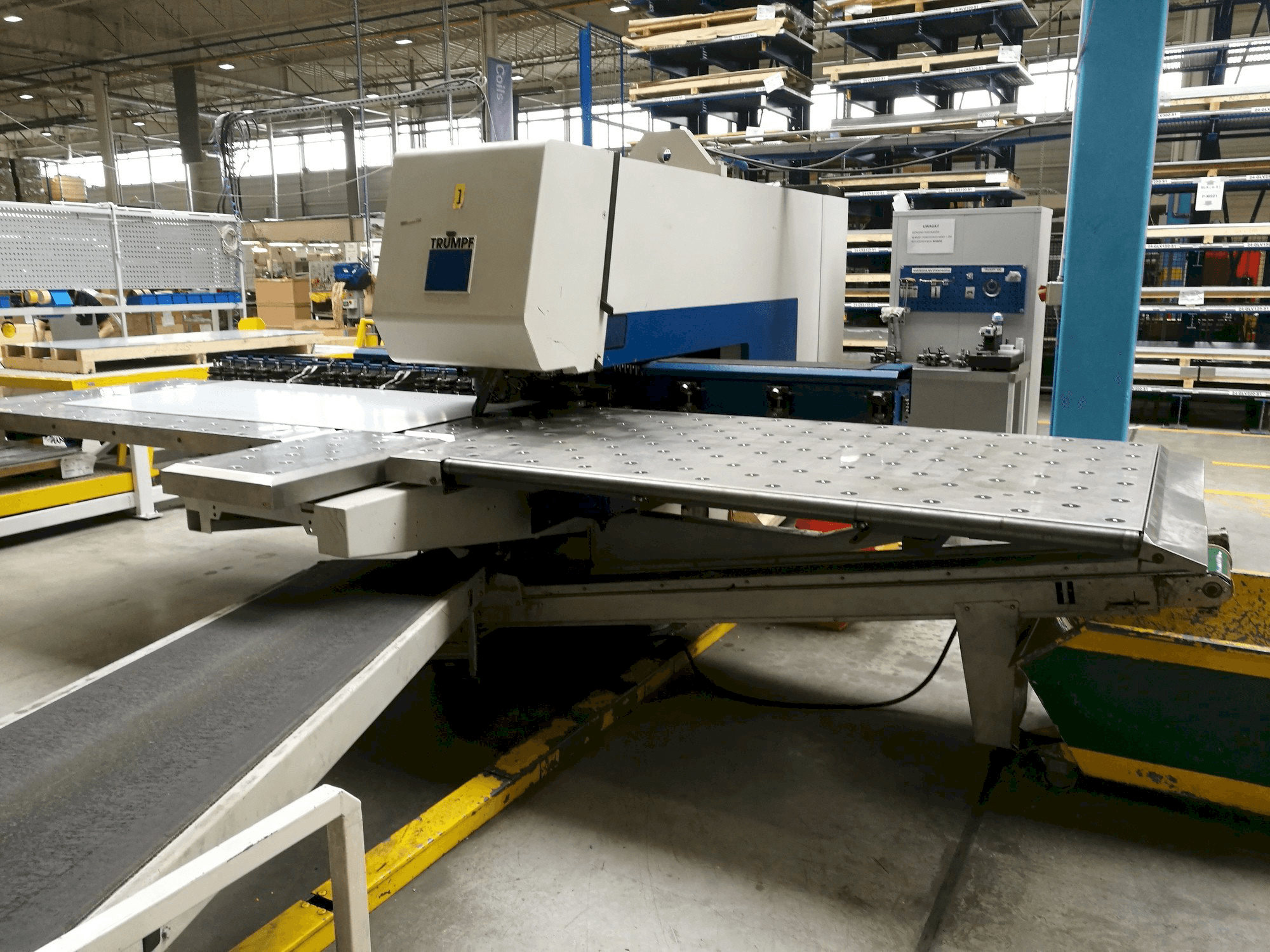

Front view of Trumpf Trumatic 500 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

TRUMPF Trumatic 500

Photo Gallery

TRUMPF - Trumatic 500PL-PUN-TRU-1999-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
➤ Trumatic 500 by Trumpf - Pre-Owned Punching Machine

Show in original language

This Trumpf Trumatic 500 Punching Machine was built in 1999 in Germany and has been working for 49900 hours since then. Operated through a Bosch TRUMAGRAPH Control unit, this machine incorporates a punching force of 220 kN.

Overview

brand: TRUMPF
year: 1999
MODEL: Trumatic 500
production hours: 49900
application type: Punching
Location: Poland
machine type: CNC Punch Press
control unit brand: BOSCH

Technical Information - TRUMPF Trumatic 500

General Data

Measurements width: 5200 mm
Measurements depth: 5200 mm
Measurements height: 2200 mm
Machine weight: 11050 kg

Control Unit

Model: TRUMAGRAPH
Brand: BOSCH

Main drive

Punching force: 220 kN

Movement

X-AXIS Movement: 2500 mm
Y-AXIS Movement: 1250 mm

Workpiece

Workpiece x: 2500 mm
Workpiece y: 1250 mm
Workpiece weight: 150 kg

Tools

Number of index: 18

Max Material thickness

Steel: 8 mm
Stainless steel: 3 mm

Media

Main electronic connection: 400V / 50Hz
Power consumption: 17 kVA
Chip conveyor: Yes
Internal cooling: Yes

Additional Information

Machine Benefits

Qualitative Machine Benefits

Machine was always inspected by trumpf service

Technical Machine Benefits

Very good technical conditions

Machine History

End product

Hvac

Material thickness

2 mm

Material type

Galvanized ms

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
