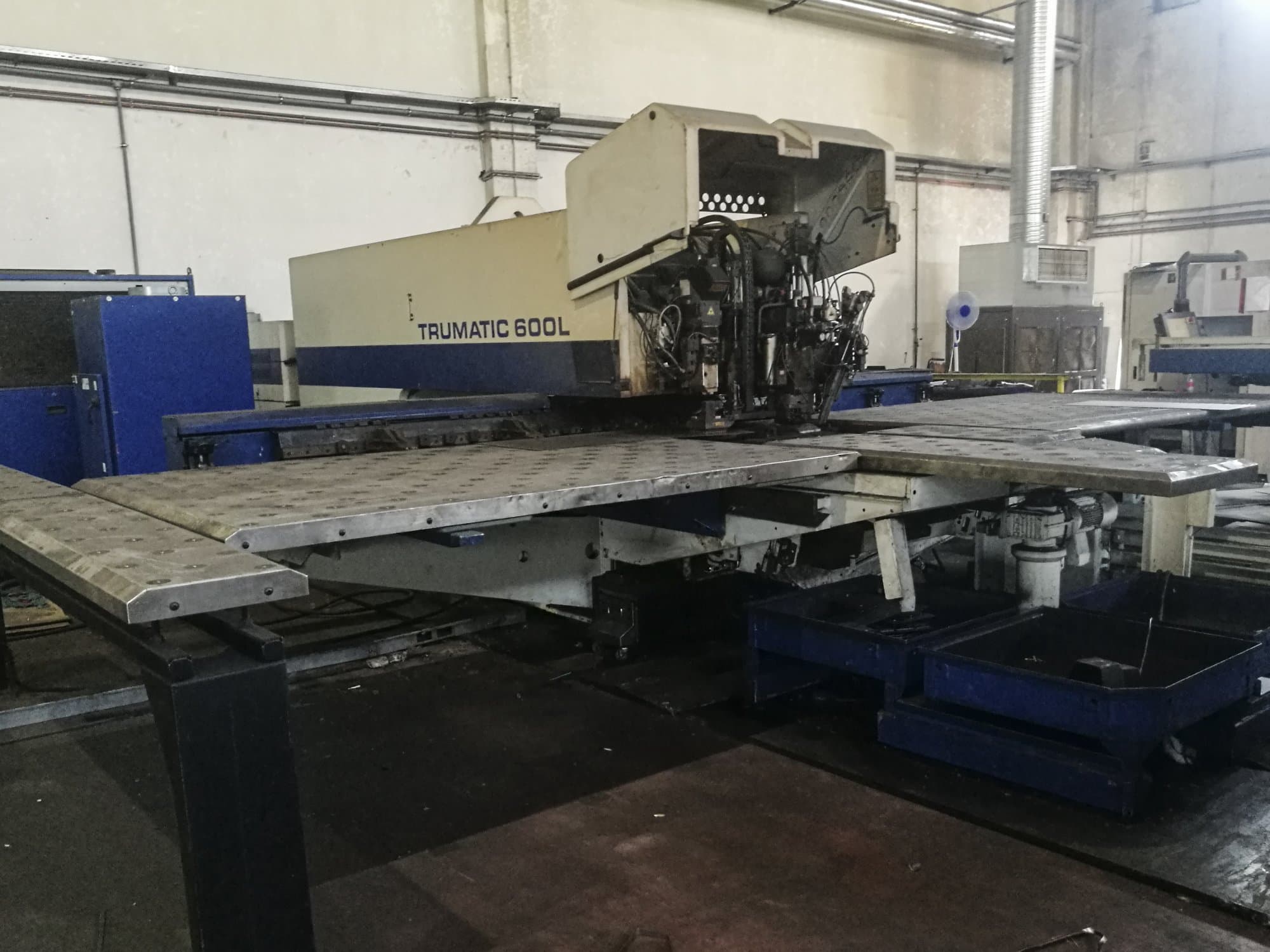

Left view of Trumpf Trumatic 600L Machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

TRUMPF Trumatic 600L

Photo Gallery

TRUMPF - Trumatic 600LHR-PUN-TRU-2001-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
➤ Used Laser Punch Combination Machine - Trumpf Trumatic 600L

Show in original language

This Trumpf Trumatic 600L Laser Punch Combination Machine from 2001 was manufactured in Germany and has a production time of 30600 working hours. Operated through a SIEMENS SINUMERIK 840D Control unit, this fast machine with long Y axis has mainly worked with 5 mm steel sheets during the past and comes with genuine additional equipment from Trumpf. For this machine optics were replaced in June 2018 and it was frequently inspected and maintained by official Trumpf service.

Overview

brand: TRUMPF
year: 2001
MODEL: Trumatic 600L
production hours: 30600
application type: Punching
Location: Croatia
machine type: Punch-Laser Combination
availability: Sold
control unit brand: SIEMENS

Technical Information - TRUMPF Trumatic 600L

General Data

Measurements width: 8000 mm
Measurements depth: 8000 mm
Measurements height: 2500 mm
Machine weight: 23000 kg

Control Unit

Model: SINUMERIK 840D
Brand: SIEMENS

Main drive

Laserpower: 2.4 kW
Laser type: TLF2400t
Punching force: 220 kN
Maximum sheet thickness: 8 mm
Laser brand: Trumpf

Movement

X-AXIS Movement: 3000 mm
Y-AXIS Movement: 1600 mm

Tools

Number of index: 21
Number of stations: 2

Max Material thickness

Steel: 6 mm
Stainless steel: 4 mm
Aluminum: 4 mm

Media

Main electronic connection: 400 V / 50 Hz
Power consumption: 70 kVA
Chip conveyor: Yes

Additional equipment

- Trumpf SheetMaster
- Trumpf GripMaster
- 30x Tools
- Trumpf TruTops 6.4 with license (upon request)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
