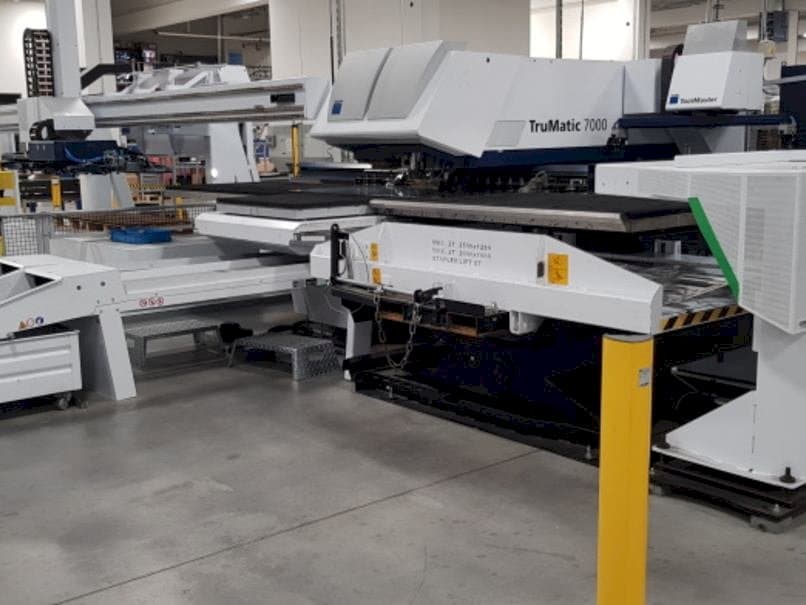

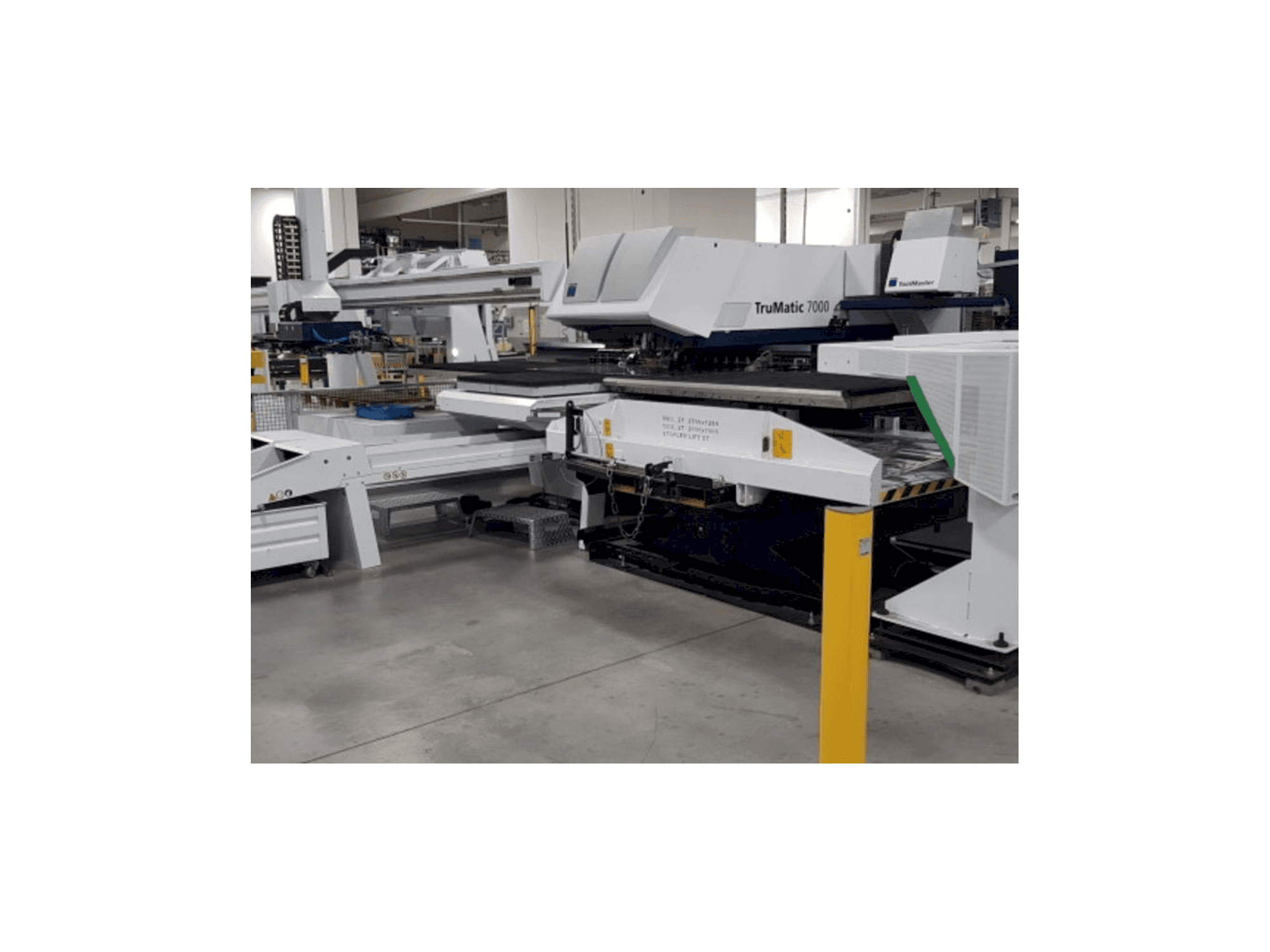

Front view of Trumpf Trumatic 7000 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

TRUMPF Trumatic 7000

Photo Gallery

TRUMPF - Trumatic 7000CZ-PUN-TRU-2016-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
Trumpf Trumatic 7000 Laser Punch Combination

Show in original language

This Trumpf Trumatic 7000 Laser Punch Combination Machine was manufactured in Germany in the year 2016. This machine can work with a punching force of 220 kN and a laser power of 3,2 kW. It includes a software options, and tooling.

Overview

brand: TRUMPF
year: 2016
MODEL: Trumatic 7000
application type: Punching
Location: Czech Republic
machine type: Punch-Laser Combination

Technical Information - TRUMPF Trumatic 7000

Main drive

Laserpower: 3,2 kW
Laser type: CO2
Punching force: 220 kN
Maximum sheet thickness: 8 mm

Movement

X-AXIS Movement: 2500 mm
Y-AXIS Movement: 1250 mm

Workpiece

Workpiece weight: 200 kg

Tools

Slots in storage: 22

Max Material thickness

Steel: 8 mm
Stainless steel: 8 mm
Aluminum: 6 mm

Media

Main electronic connection: 400 V 50 Hz
Power consumption: 82 kVA

Additional Information

Additional equipment

Software options
Tooling

Machine Benefits

Qualitative Machine Benefits

Very good condition

Technical Machine Benefits

Tool master
Sheet master
Max. Stroke rate: punching 1200 1/min; marking 3000 1/min
Active die
Automatic nozzle changer

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
