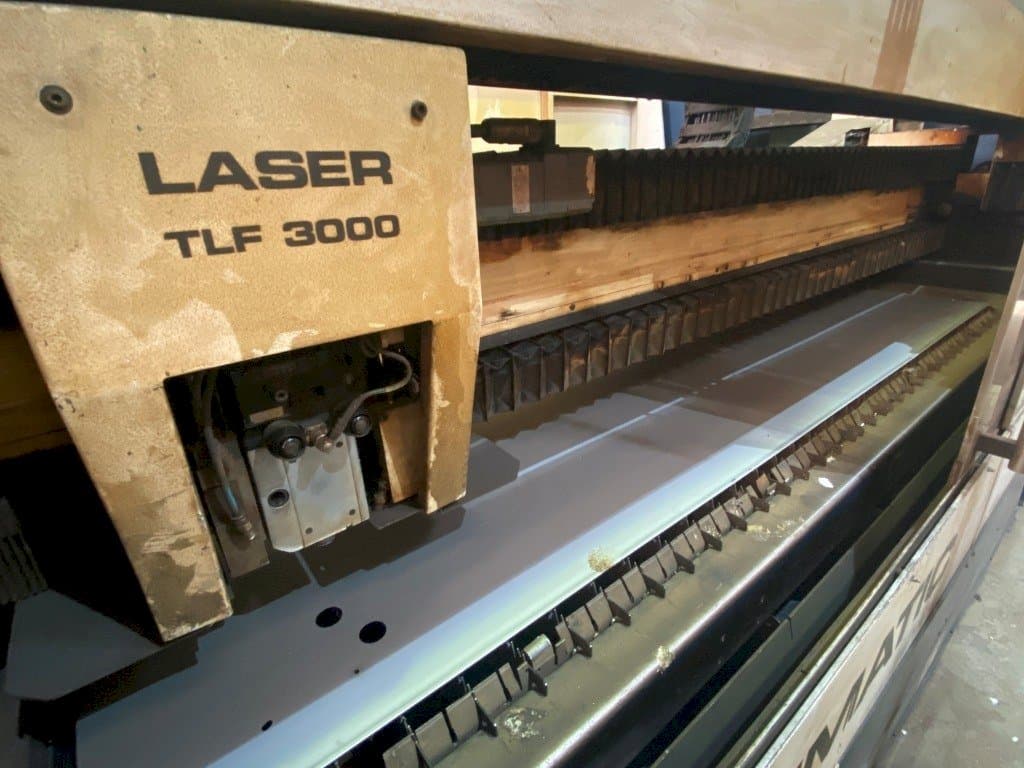

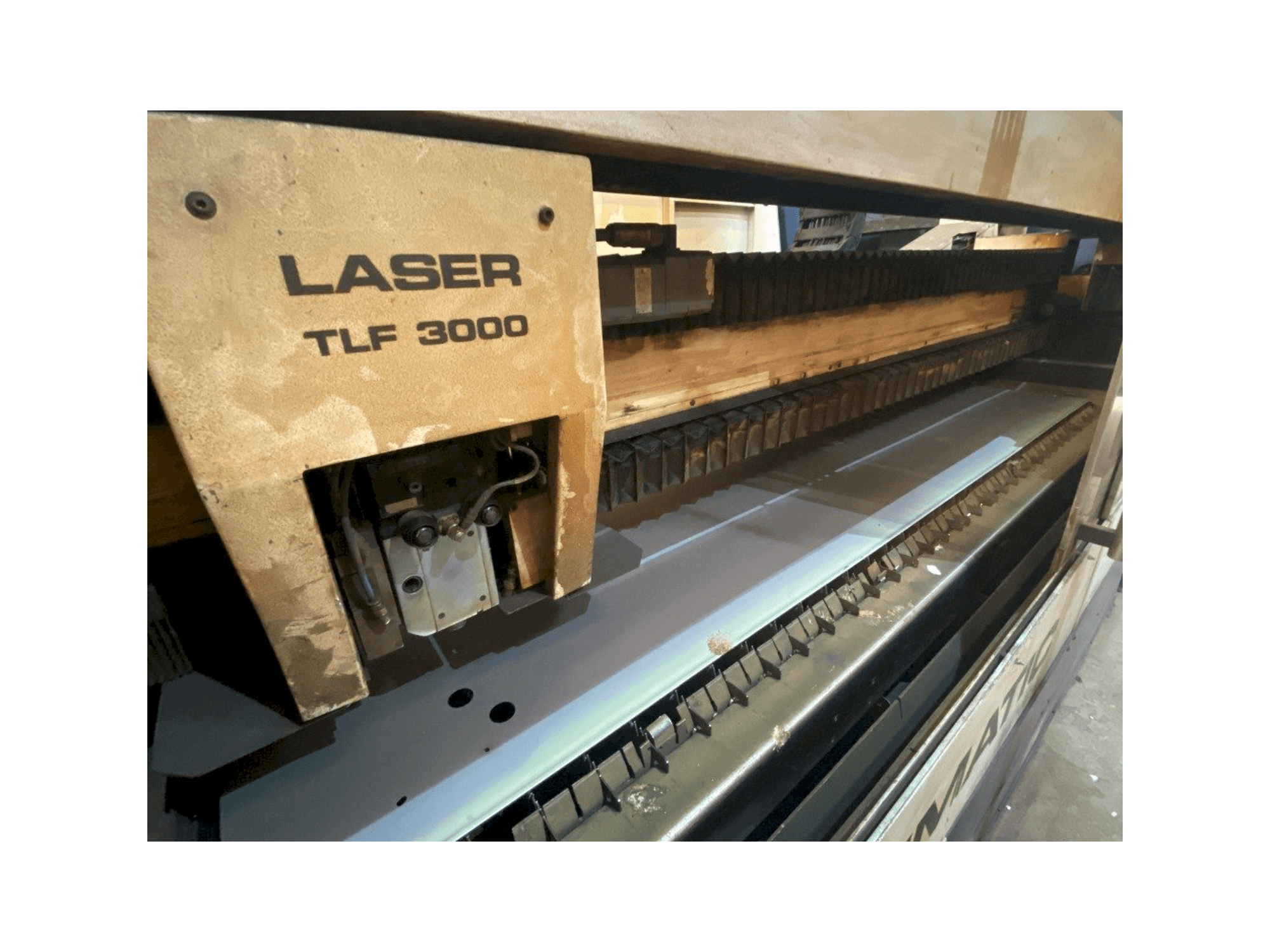

This Trumpf TRUMATIC L2530 Laser Cutting Machine was manufactured in the year 2000 in Germany. This 2 axis machine is equipped with a control unit of the same brand. It works with a CO2 laser power 3000 kW. In the past, this machine has been working in the agri industry. It includes a manual sheet loader.

Overview

brand: TRUMPF
year: 2000
MODEL: TRUMATIC L2530
application type: Cutting
Location: Ireland
machine type: CO2 Laser Cutting Machine
availability: Sold
control unit brand: TRUMPF

Technical Information - TRUMPF TRUMATIC L2530

General Data

Measurements width: 7100 mm
Measurements depth: 5900 mm
Measurements height: 2000 mm
Machine weight: 7900 kg

Control Unit

CNC main language: english
CNC language customizable: Yes
Brand: TRUMPF

Main drive

Laserpower: 3000 kw
Laser type: co2
Laser brand: Trumpf TLF 3000 Turbo
Number of axis: 2

Movement

X-AXIS Movement: 2500 mm
Y-AXIS Movement: 1250 mm
Z-AXIS Movement: 115 mm

Workpiece

Workpiece x: 2500 mm
Workpiece y: 1250 mm
Workpiece z: 115 mm
Workpiece weight: 500 kg

Max Material thickness

Steel: 20 mm
Stainless steel: 12 mm
Aluminum: 8 mm

Machine specific data

Laser Cutting Head: trumpf

Media

Main electronic connection: 400 v
Power consumption: 65 kva

Additional equipment

- manual sheet Loader

Additional Information

Machine history

Material type: Mildsteel
Material thickness: 10 mm
End product: Machine parts
Industries: Agri industry

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
