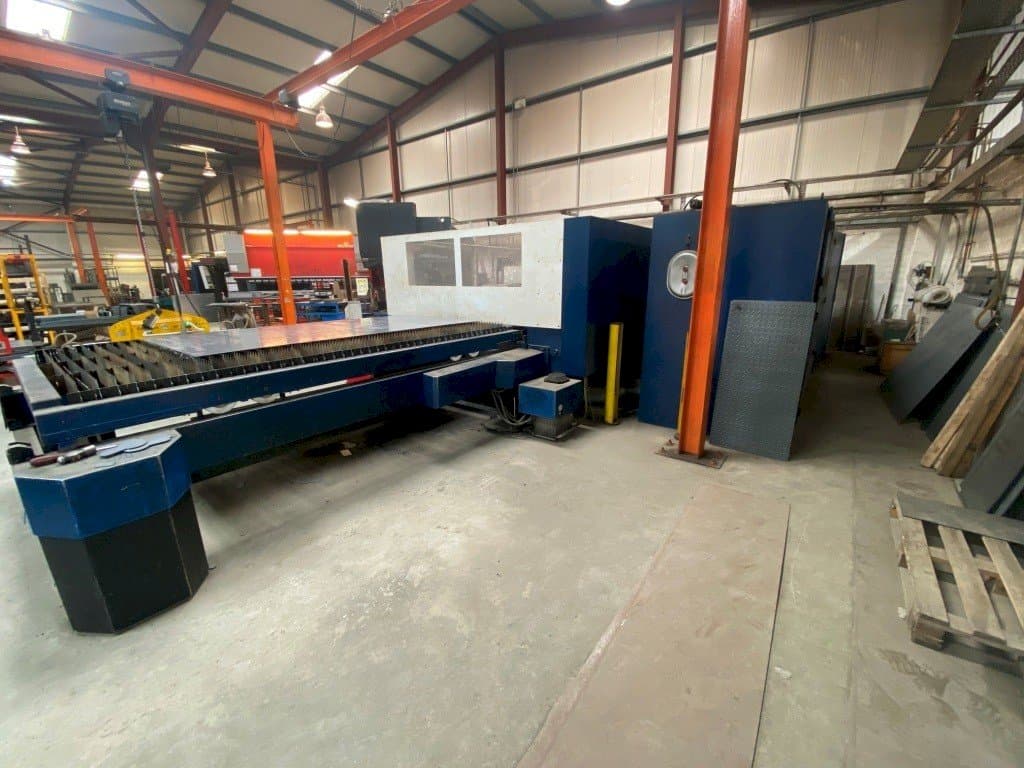

Front view of Trumpf TRUMATIC L3030 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

TRUMPF TRUMATIC L3030

Photo Gallery

TRUMPF - TRUMATIC L3030IE-LAS-TRU-2006-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

Show in original language

This Trumpf TRUMATIC L3030 Laser Cutting Machine was made in the year 2006 in Germany. It has a record of 16964 production hours. This 2 axis machine is operated through a control unit of the same brand. It works with a CO2 laser power 3200 kW. In the past, this machine has mainly processed mildsteel to produce machine parts of about 10 mm thickness.

Overview

brand: TRUMPF
year: 2006
MODEL: TRUMATIC L3030
production hours: 16964
application type: Cutting
Location: Ireland
machine type: CO2 Laser Cutting Machine
availability: Sold
control unit brand: TRUMPF

Technical Information - TRUMPF TRUMATIC L3030

General Data

Measurements width: 9300 mm
Measurements depth: 4600 mm
Measurements height: 2000 mm
Machine weight: 11500 kg

Control Unit

CNC main language: ENGLISH
CNC language customizable: Yes
Brand: TRUMPF

Main drive

Laserpower: 3200 KW
Laser type: CO2
Laser brand: Trumpf TLF 3200
Number of axis: 2

Movement

X-AXIS Movement: 3000 MM
Y-AXIS Movement: 1500 MM
Z-AXIS Movement: 115 MM

Workpiece

Workpiece x: 3000 MM
Workpiece y: 1500 MM
Workpiece z: 115 MM
Workpiece weight: 710 KG

Max Material thickness

Steel: 20 MM
Stainless steel: 12 MM
Aluminum: 8 MM

Machine specific data

Laser Cutting Head: TRUMPF

Media

Main electronic connection: 400 V
Power consumption: 73 KVA

Additional Information

Machine history

Material type: Mildsteel
Material thickness: 10 mm
End product: Machine parts
Industries: Agri industry

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
