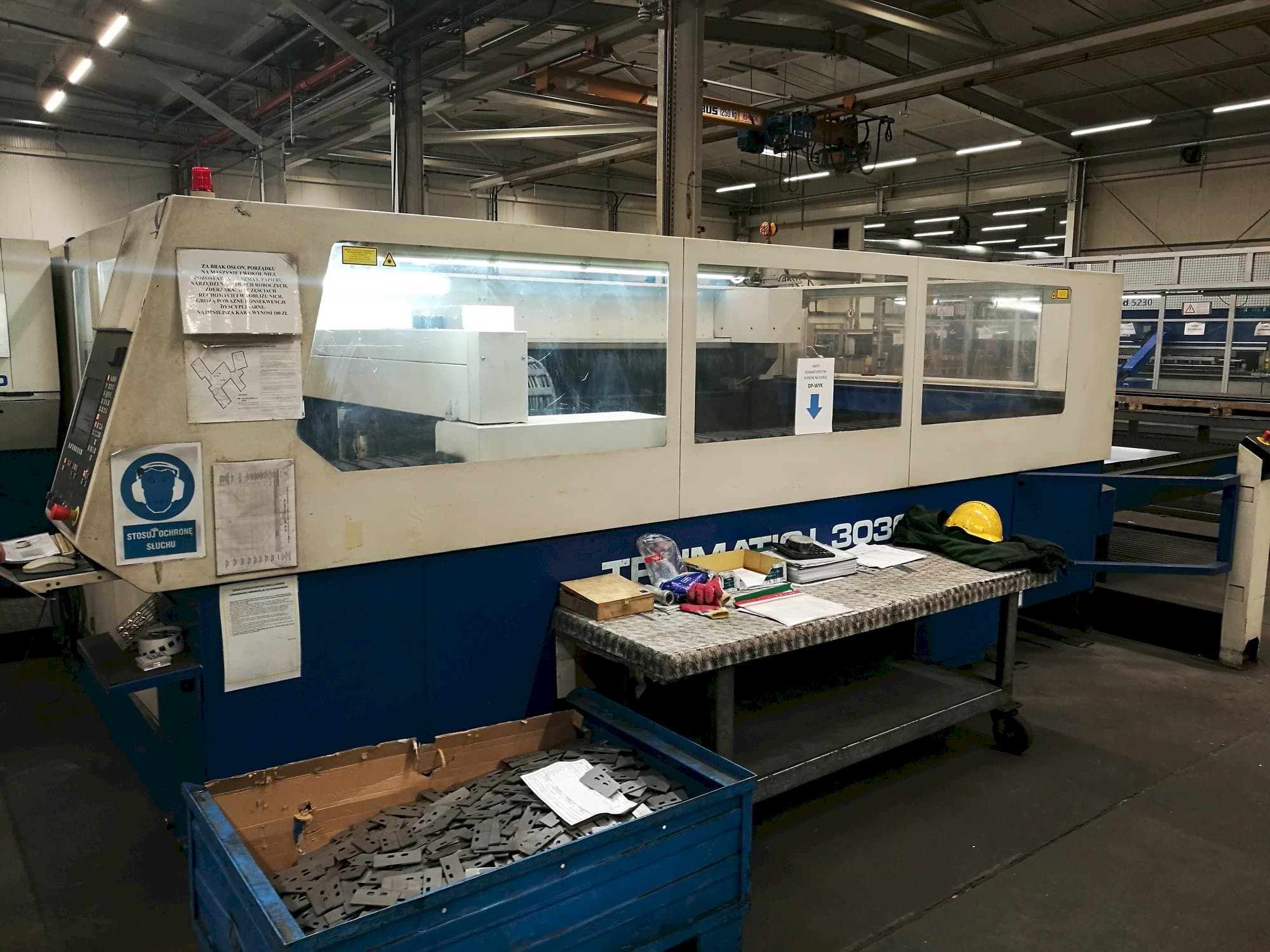

Front view of Trumpf Trumatic L3030 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

TRUMPF Trumatic L3030

Photo Gallery

TRUMPF - Trumatic L3030PL-LAS-TRU-2001-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
➤ Trumpf L3030 Trumatic - Laser Machine Used

Show in original language

This Trumpf Trumatic L3030 Laser Cutting Machine from 2001 was manufactured in Germany and has a production history of 43565 hours. Equipped with a control unit of the same brand, this machine can cut a maximum sheet thickness of 20 mm.

Overview

brand: TRUMPF
year: 2001
MODEL: Trumatic L3030
production hours: 43565
application type: Cutting
Location: Poland
machine type: CO2 Laser Cutting Machine
control unit brand: TRUMPF

Technical Information - TRUMPF Trumatic L3030

General Data

Measurements width: 9300 mm
Measurements depth: 4700 mm
Measurements height: 2200 mm
Machine weight: 12000 kg

Control Unit

Brand: TRUMPF

Movement

X-AXIS Movement: 3000 mm
Y-AXIS Movement: 1500 mm
Z-AXIS Movement: 115 mm

Workpiece

Workpiece weight: 3000 kg

Max Material thickness

Steel: 20 mm

Media

Main electronic connection: 400V 50Hz
Power consumption: 73 kVA
Chip conveyor: Yes
Internal cooling: Yes

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
