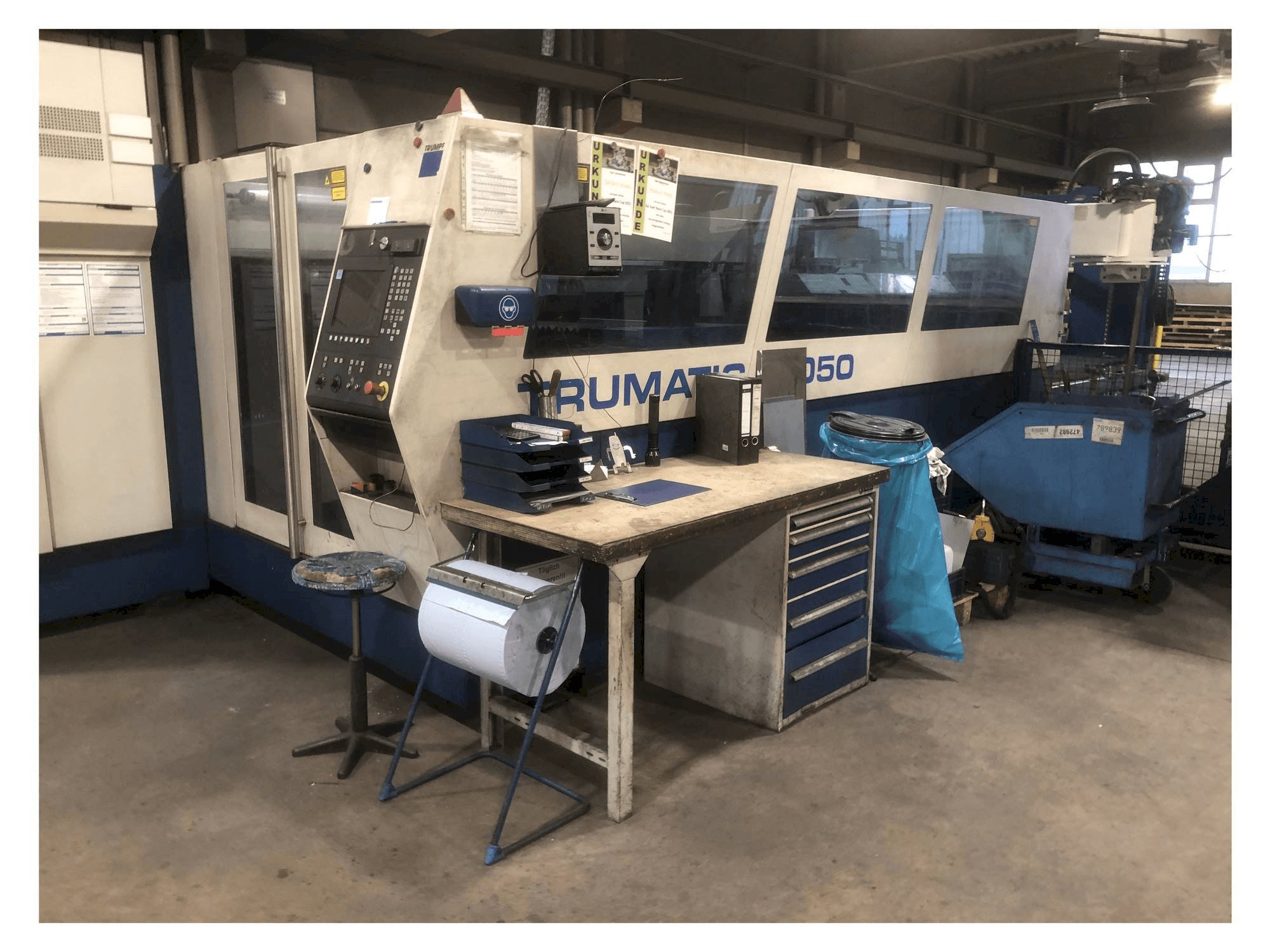

Front view of TRUMPF Trumatic L3050 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

TRUMPF Trumatic L3050

Photo Gallery

TRUMPF - Trumatic L3050DE-LAS-TRU-2003-00004

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
Trumpf Trumatic L3050 with Liftmaster Laser Cutting machine

Show in original language

This Trumpf Trumatic L3050 with Liftmaster Laser Cutting machine was manufactured in the year 2003. It is equipped with a TRUMPF CNC SIEMENS SINUMERIK 840 D control unit and has 3 axis. The machine has a maintenance contract with Trumpf and is consequently in good condition. A quartz tube replacement was carried out in 2022/2023.

Overview

brand: TRUMPF
year: 2003
MODEL: Trumatic L3050
production hours: 0
application type: Cutting
Location: Germany
machine type: CO2 Laser Cutting Machine
control unit brand: TRUMPF

Technical Information - TRUMPF Trumatic L3050

Control Unit

Model: Sinumerik 840D
Brand: TRUMPF

Main drive

Number of axis: 3

Movement

X-AXIS Movement: 3000 mm
Y-AXIS Movement: 1500 mm
Z-AXIS Movement: 100 mm

Additional equipment

- 1x double trolley
- 1x storage platform

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Automatic pallet changer
- - Laser unit: c02 laser, high-frequency excited, cooling unit,
- - Longitudinal conveyor belt for small parts/waste
- - Compressed air cutting
- - Laser power control
- - Drives: gantry drive in combination with linear direct drives
- - Contourlas for the production of small holes
- - Microweld
- - Liftmaster
- - Hl-las high-pressure cutting
Qualitative Machine Benefits:
- - Cutting gas pressure setting programmable laser cutting head with 5" lens and laser cutting head with 7. 5" lens
- - Plasma sensor system pms
- - Cutting head quick-change device
- - 7. 5" lens
- - Fast processing with sprint lasers
- - Automatic sheet outer edge detection
- - Capacitive height control (dias)
- - Programmable power cycles
- - Process control system (pcs)
- - Workshop programming tops 100 lite

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
