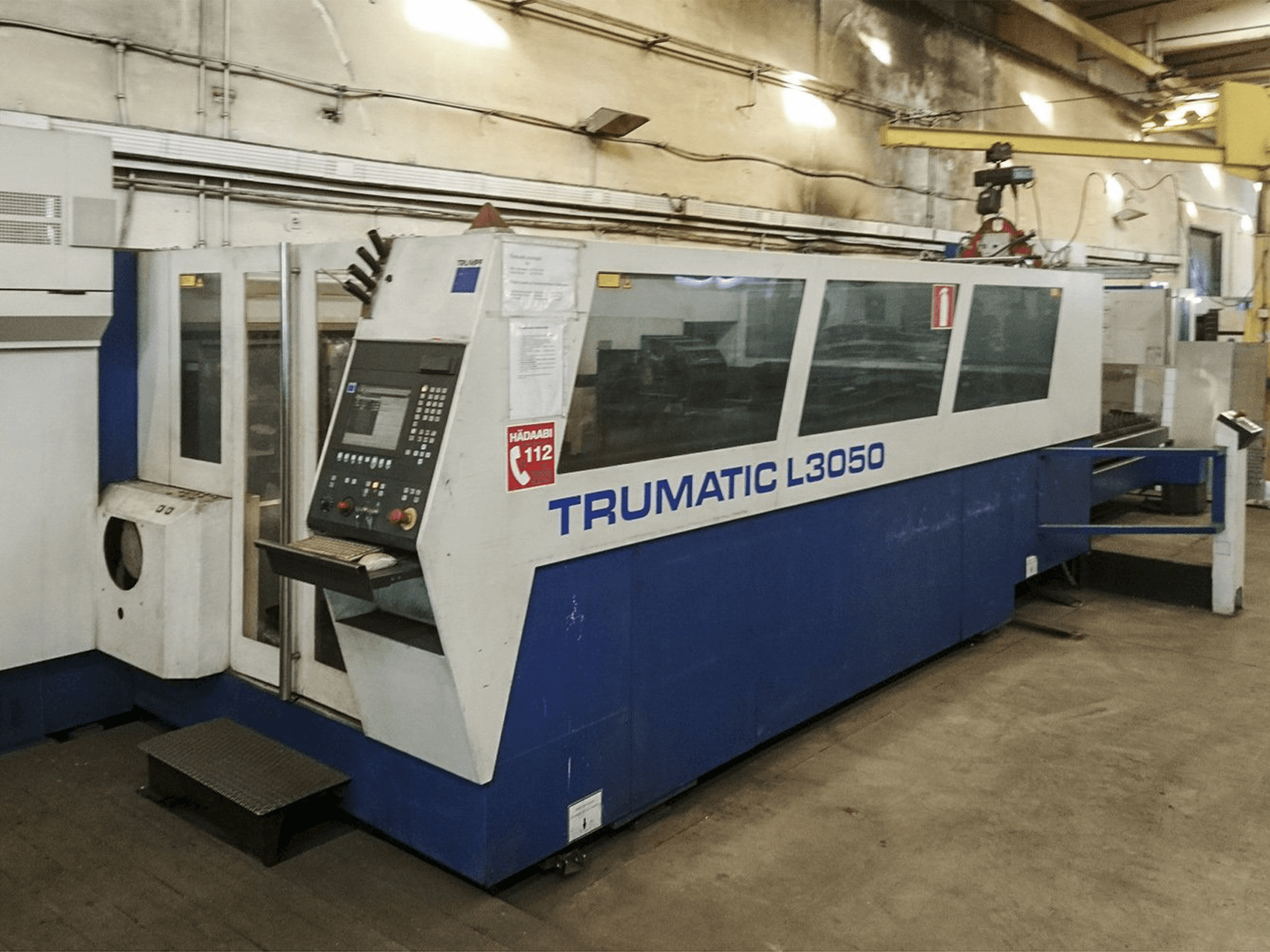

This Trumpf Trumatic L3050 Laser Cutting Machine from 2005 was manufactured in Germany and has a working record of 37620 laser hours respectively 12319 beam hours. Equipped with a SIEMENS SINUMERIK 840D Control unit, this machine comes in a very good condition as it was regularly inspected. As an extra feature, this machine comes with a Trumpf RotoLas device, allowing to cut tubes and profiles. In the past, this machine has mainly worked with steel sheets up to 25 mm of thickness, as well as with tubes and profiles. As additional equipment, this machine comes with four different sized laser cutting heads and an automatic pallet changer for loading and unloading.
Overview
- brand: TRUMPF
- year: 2005
- MODEL: Trumatic L3050
- production hours: 37620
- application type: Cutting
- Location: Estonia
- machine type: CO2 Laser Cutting Machine
- control unit brand: SIEMENS
Technical Information - TRUMPF Trumatic L3050
Control Unit
- Control Brand: SIEMENS
- Control Model: SINUMERIK 840D
Dimensions
- Machine Depth: 11250 mm
- Machine Height: 2400 mm
- Machine Weight: 12500 kg
Movement
- X-axis Travel: 3050 mm
- Y-axis Travel: 1550 mm
- Z-axis Travel: 115 mm
Technical Specification
- Laser Power: 6 kW
Additional Information
Additional equipment
- Laser cutting head f = 3.5"
- Laser cutting head f = 5"
- Laser cutting head f = 7"
- Laser cutting head f = 9"
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
