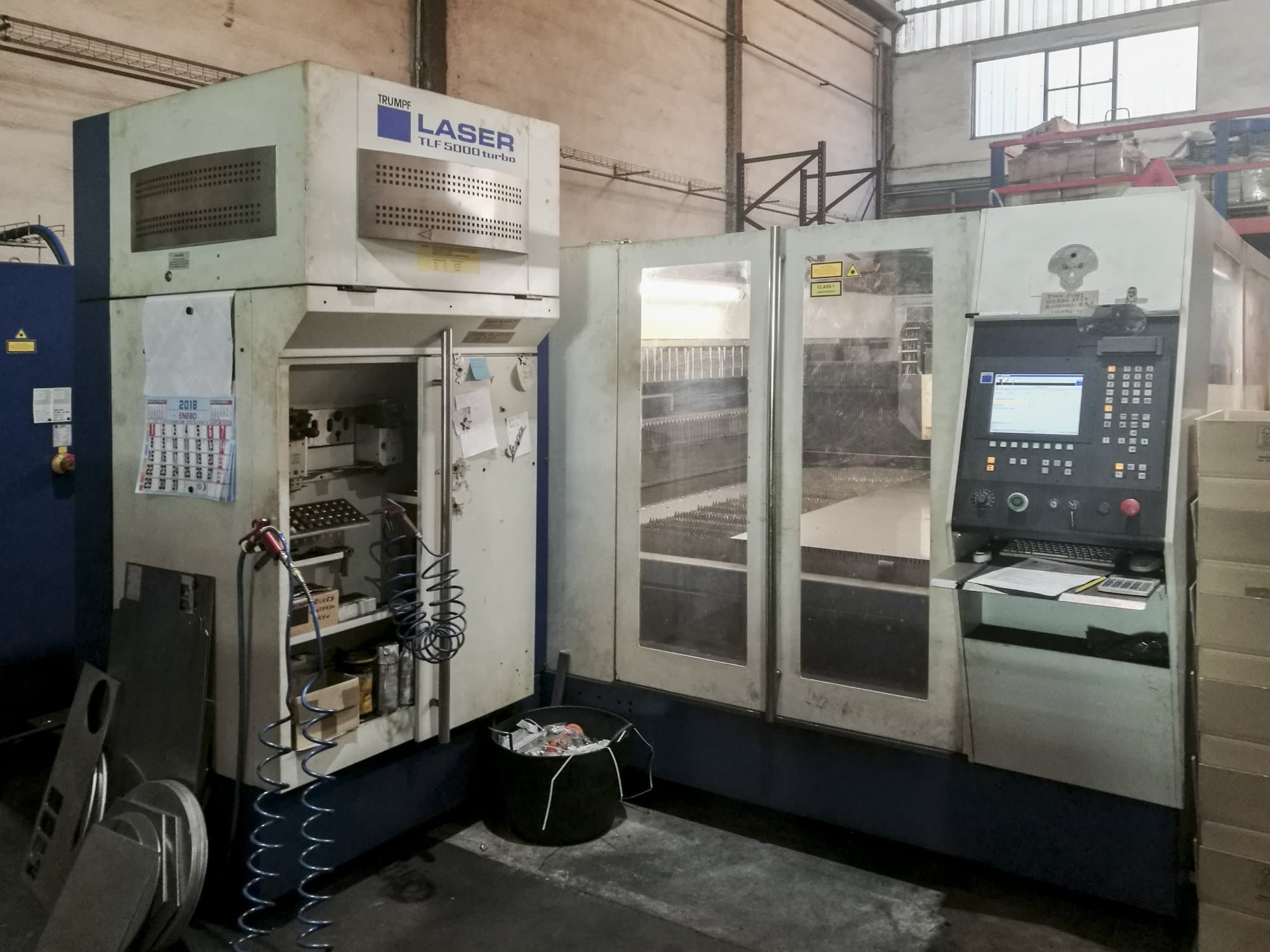

Front view of Trumpf Trumatic L3050 Machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

TRUMPF Trumatic L3050

Photo Gallery

TRUMPF - Trumatic L3050ES-LAS-TRU-2002-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
➤ Used Laser Cutting Machine - Trumpf Trumatic L3050

Show in original language

This Trumpf Trumatic L3050 Laser Cutting Machine from 2002 was manufactured in Germany and has a working record of 51731 laser hours. Equipped with a SIEMENS SINUMERIK 840D Control unit, this machine comes in a very good condition as it was regularly inspected. The big working table size as well as the powerful laser make this machine a strong system, able to cut metal sheets up to 25 mm of thickness.

Overview

brand: TRUMPF
year: 2002
MODEL: Trumatic L3050
production hours: 51731
application type: Cutting
Location: Spain
machine type: CO2 Laser Cutting Machine
control unit brand: SIEMENS

Technical Information - TRUMPF Trumatic L3050

General Data

Measurements width: 11100 mm
Measurements depth: 4600 mm
Measurements height: 2400 mm
Machine weight: 12000 kg

Control Unit

Model: SINUMERIK 840D
Brand: SIEMENS

Main drive

Laserpower: 5 kW
Laser type: CO2
Laser brand: TLF 5000T

Movement

X-AXIS Movement: 3130 mm
Y-AXIS Movement: 1580 mm
Z-AXIS Movement: 123 mm

Workpiece

Workpiece x: 3000 mm
Workpiece y: 1500 mm
Workpiece z: 100 mm
Workpiece weight: 900 kg

Media

Main electronic connection: 3x 400V
Power consumption: 105 kVA
He consumption: 780 l/h
CO2 consumption: 60 l/h
N2 consumption: 360 l/h

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
