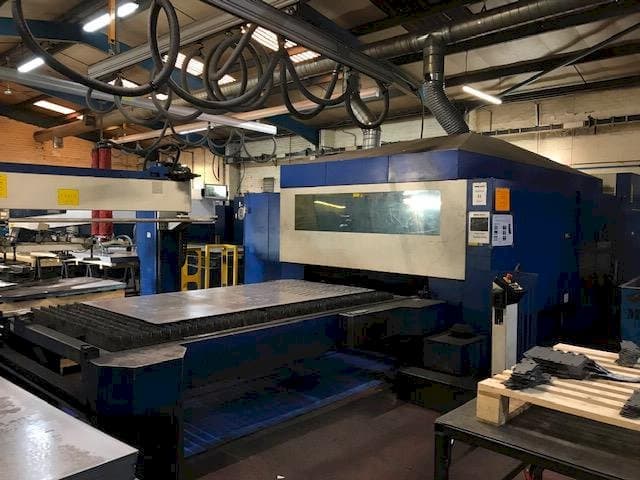

Front view of Trumpf Traumatic L 3050 machine
Front view of Trumpf Traumatic L 3050 machine

Thank you for your visit

This machine was recently sold.

Browse similar machines

TRUMPF - Trumatic L3050GB-LAS-TRU-2005-00001

Sold

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This Trumpf Trumatic L3050 Laser Cutting Machine was built in 2005 in Germany and has been working for 61150 hours, from which 19500 are laser beam hours. Equipped with a SIEMENS SINUMERIK 840 D Control unit, this machine can perform with a laser power of 5 kW. A load master is included additionally.

Overview

  • brand: TRUMPF
  • year: 2005
  • MODEL: Trumatic L3050
  • production hours: 19500
  • application type: Cutting
  • Location: United Kingdom
  • machine type: CO2 Laser Cutting Machine
  • availability: Sold
  • control unit brand: SIEMENS

Technical Information - TRUMPF Trumatic L3050

General Data

  • Measurements width: 6500 mm
  • Measurements depth: 5900 mm
  • Measurements height: 2000 mm
  • Machine weight: 7100 kg

Control Unit

  • Model: SINUMERIK 840 D
  • CNC language customizable: Yes
  • Brand: SIEMENS

Main drive

  • Laserpower: 5 kW
  • Laser type: TLF 5000
  • Laser brand: Trumpf

Movement

  • X-AXIS Movement: 3000 mm
  • Y-AXIS Movement: 1500 mm

Workpiece

  • Workpiece weight: 500 kg

Media

  • Power consumption: 105 kVA

    Additional equipment

    • - Load Master

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - X speed max. : 100 m/min
        • - Y speed max. : 60 m/min
        • - Z speed max. : 60 m/min
        • - X-y speed simult, max: 60-85 m/min

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
