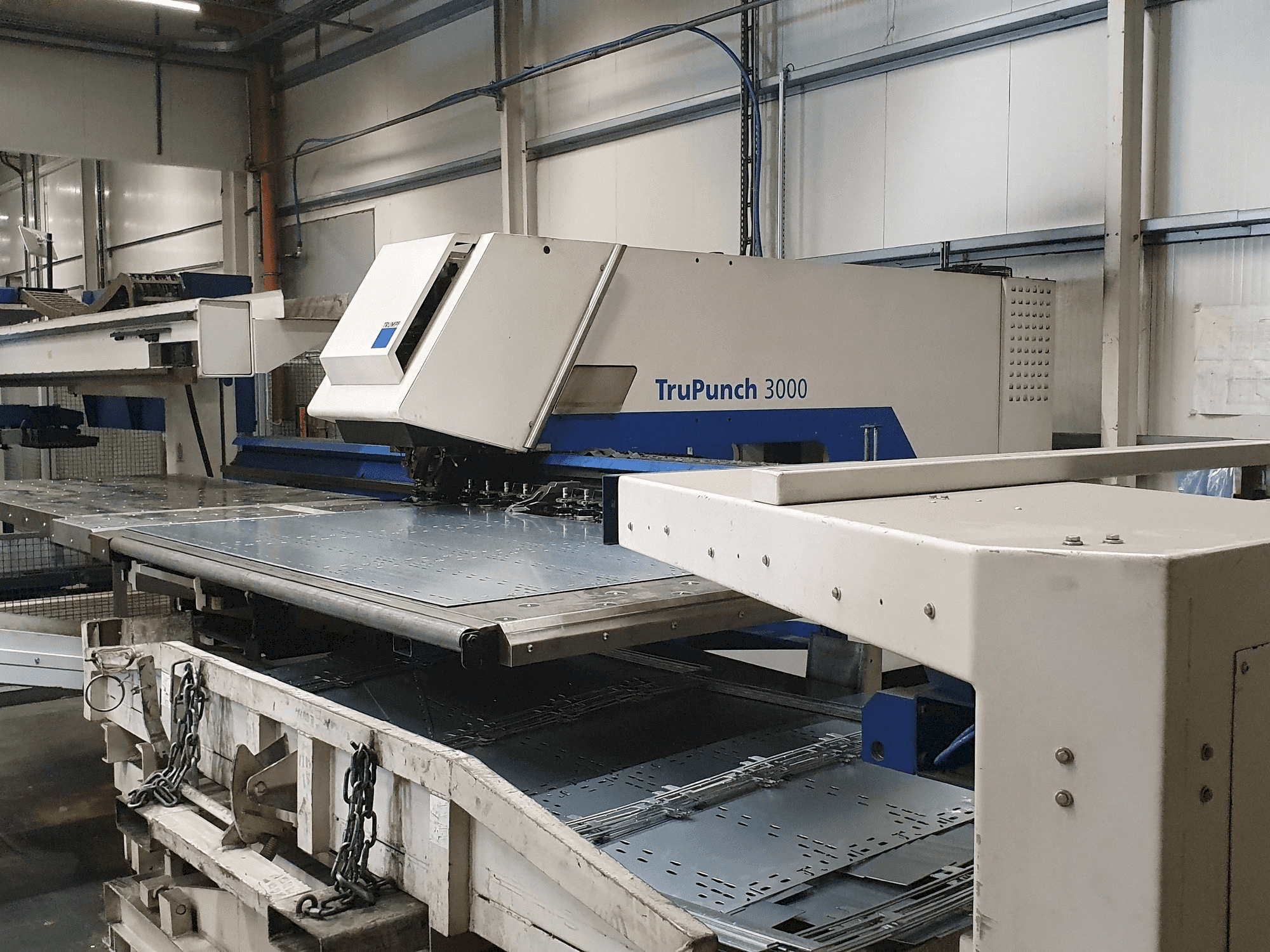

Front view of Trumpf TruPunch 3000 Sheet Master machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

TRUMPF TruPunch 3000 Sheet Master

Photo Gallery

TRUMPF - TruPunch 3000 Sheet MasterPL-PUN-TRU-2008-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
Trumpf TruPunch 3000 Sheet Master Punching Machine

Show in original language

This Trumpf TruPunch 3000 Sheet Master Punching Machine was made in Germany in the year 2008. It has 59704 working hours. It is cotrolled with a control unit of the same brand. This machine perform with a punching force of 180 kN. It include a sheet master, a double carriages for sheet master for sheets: 1250x2500mm, a sort master, a grip master, a chip conveyor with tipping container, and a conveyor for finished parts as additional equipment.

Overview

brand: TRUMPF
year: 2008
MODEL: TruPunch 3000 Sheet Master
production hours: 59704
application type: Punching
Location: Poland
machine type: CNC Punch Press

Technical Information - TRUMPF TruPunch 3000 Sheet Master

General Data

Measurements width: 6282 mm
Measurements depth: 6548 mm
Measurements height: 2200 mm

Main drive

Punching force: 180 kn

Table

Outer length: 2500 mm
Outer width: 1250 mm
Table load: 150 kg

Additional Information

Additional equipment

Sheet Master
Double carriages for Sheet Master for sheets: 1250x2500mm
Sort Master
Grip Master
Chip conveyor with tipping container
Conveyor for finished parts

Machine Benefits

Technical Machine Benefits

Max number of strokes per min 800 1/min
Max marking speed 1000 1/min
Number of tools: 18 pcs
Tool change time 0. 5 sec.
Max thickness of processed sheet metal 6. 4 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
