Trumpf Tubematic Laser Cutting Machine

Show in original language

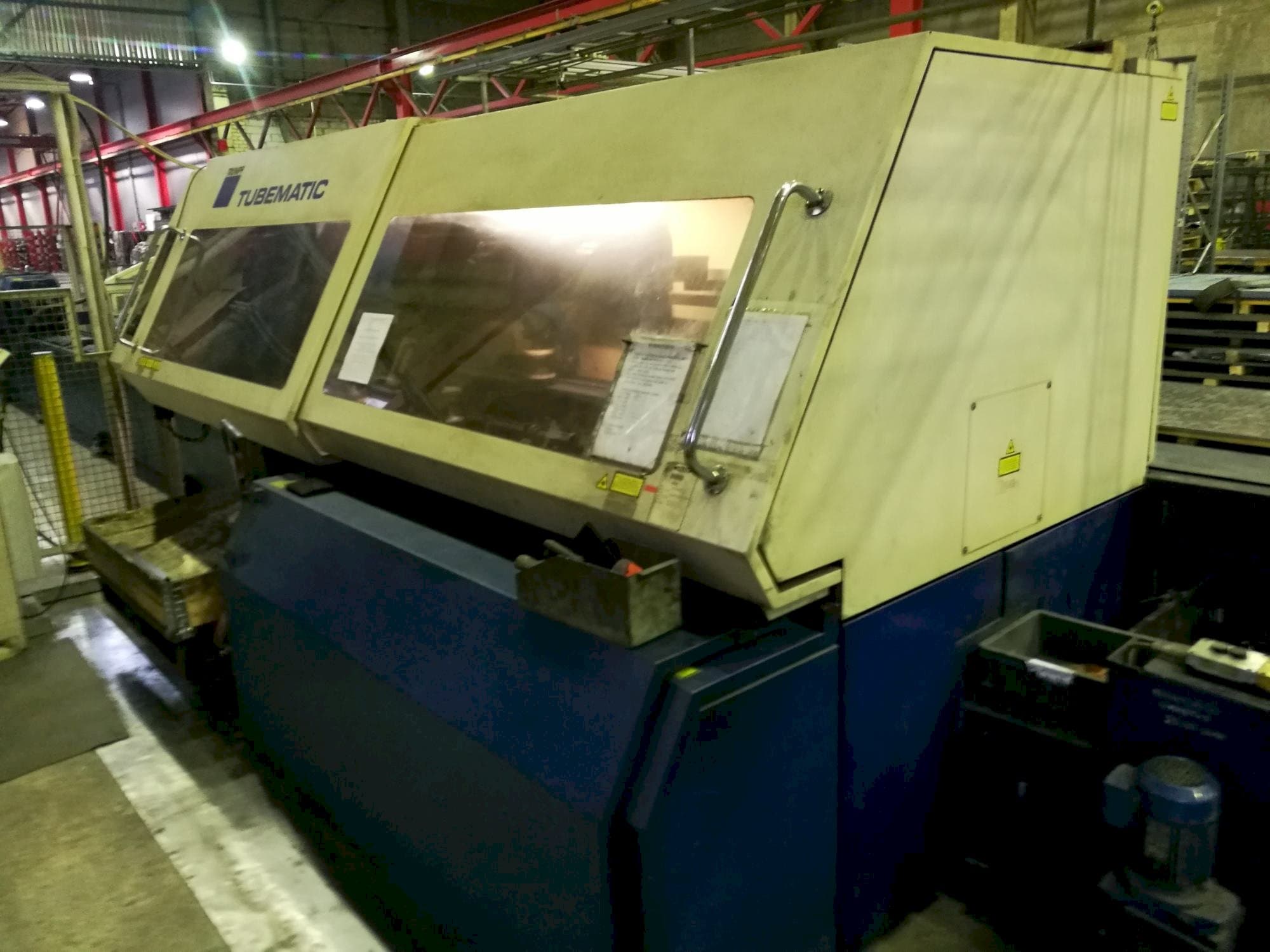

This Trumpf Tubematic Laser Cutting Machine was manufactured in the year 2000 in Germany and has been working for 98664 hours. Equipped with a control unit of the same brand, this machine can perform with a laser power of 2.4 kW. During the past, it has mainly been used for tube laser cutting.

Overview

brand: TRUMPF
year: 2000
MODEL: Tubematic
production hours: 98664
application type: Cutting
Location: Estonia
machine type: Tube Cutting Machine
availability: Sold
control unit brand: TRUMPF

Technical Information - TRUMPF Tubematic

General Data

Measurements width: 1550 mm
Measurements depth: 2950 mm
Measurements height: 2400 mm
Machine weight: 18500 kg

Control Unit

CNC main language: English
CNC language customizable: Yes
Brand: TRUMPF

Main drive

Laserpower: 2.4 kW
Laser type: TLF 2400
Laser brand: Trumpf

Movement

X-AXIS Movement: 6500 mm

Workpiece

Workpiece drm: 20-150 mm
Workpiece x: 3000-6500 mm
Workpiece y: 2000-3000 mm
Workpiece z: 141 mm
Workpiece weight: 120 kg

Max Material thickness

Steel: 4 mm
Stainless steel: 3 mm
Aluminum: 2 mm

Media

Main electronic connection: 400 V / 50 Hz
Power consumption: 72 kVA
Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Loading unit
- - Gas unit
- - Cooler

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
