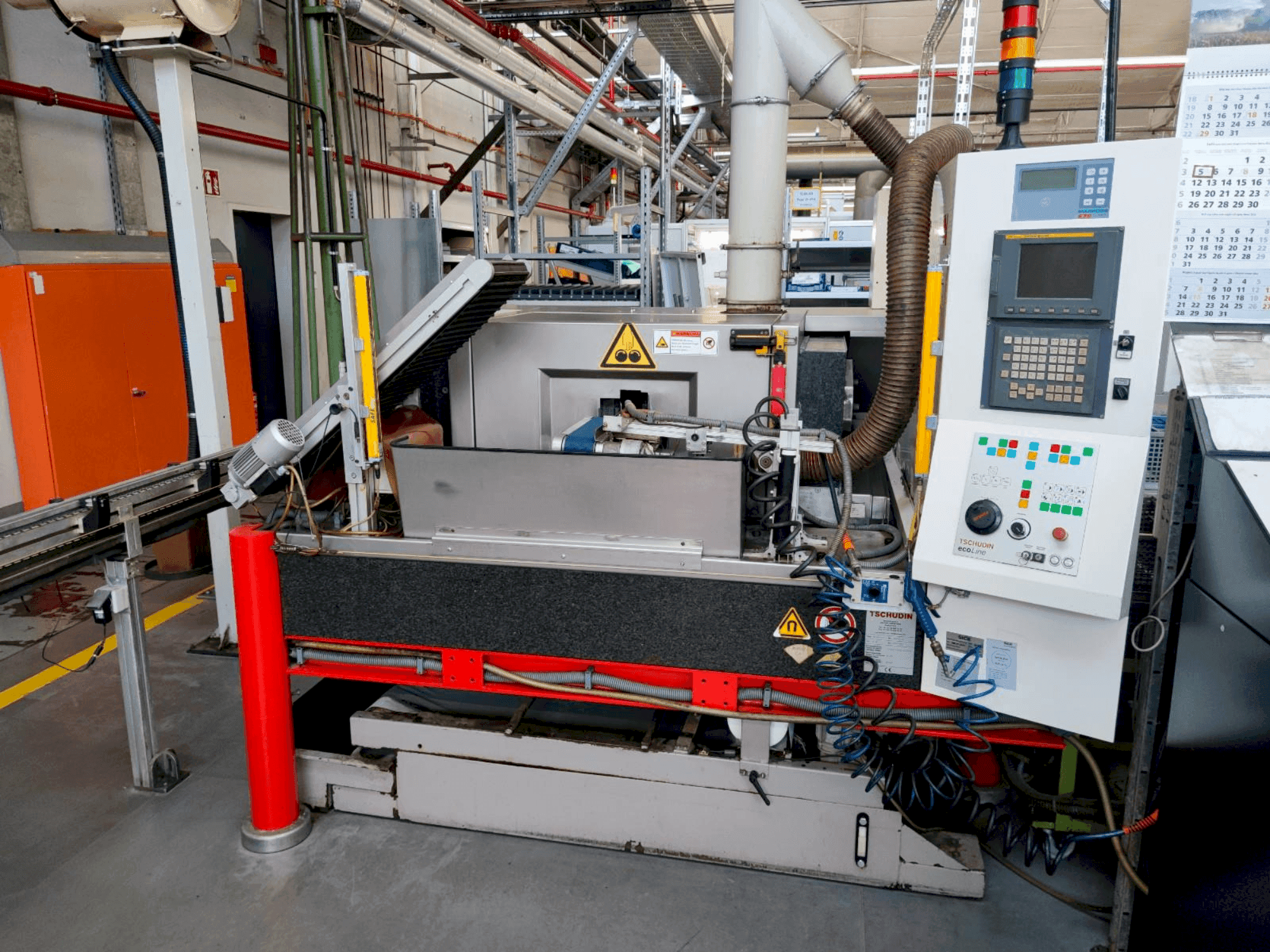

Front view of TSCHUDIN ecoLINE 400 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

TSCHUDIN ecoLINE 400

Photo Gallery

TSCHUDIN - ecoLINE 400DE-GRI-TSC-2004-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
TSCHUDIN ecoLINE 400 Centerless Grinding Machine

Show in original language

This TSCHUDIN ecoLINE 400 Centerless Grinding Machine was manufactured in 2004 in Switzerland. It is designed for the highest possible process stability and machine reliability. The machine is special for machining workpieces with diameters up to 100 mm. It is operated with a FANUC 21i-MB control. Due to a project it was extended with a customized system for automated loading and unloading. In addition there are conveyor belts controlled via PLC control Tschudin. The machine is still under power and can be inspected at any time.

Overview

brand: TSCHUDIN
year: 2004
MODEL: ecoLINE 400
application type: Grinding
Location: Germany
machine type: Centerless Grinding Machine
availability: Sold
control unit brand: FANUC

Technical Information - TSCHUDIN ecoLINE 400

General Data

Measurements width: 2000 mm
Measurements depth: 2400 mm
Measurements height: 1900 mm
Machine weight: approx. 6000 kg

Control Unit

Model: 21i-MB
Brand: FANUC

Workpiece

Workpiece drm: 1.5 - 100 mm

Media

Main electronic connection: 3x400 V / 50 Hz +N+E

Additional equipment

- Conveyor belts (controlled via Tschudin PLC control system)

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Throughfeed grinding // workpiece diameter: 1. 5-100 mm
- - Plunge grinding // workpiece diameter: 1. 5-100 mm, maximum sanding length: 250 mm
- - Grinding wheel // max. Outer diameter: 400 mm, inner diameter: 203. 2 mm, max. Width: 250 mm, peripheral speed (max. 8600 rpm): 50 m/s, drive power/ with balancing device: 11 kw
- - Regulating disk // max. Outer diameter: 225 mm, inner diameter: 127 mm, max. Width: 250 mm, speed range: 0-265 rpm, max. Tilt angle: ±5°, drive power: 3. 7 kw
Qualitative Machine Benefits:
- - Ideal for cylindrical grinding in series production
- - Partially customized as part of a project: equipped with a system for automated loading and unloading.
- - Serviced by the operator's maintenance department in accordance with the manufacturer's maintenance specifications

Extra information

- Control voltage: 24 V DC // Connected load: 25 kVA

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
