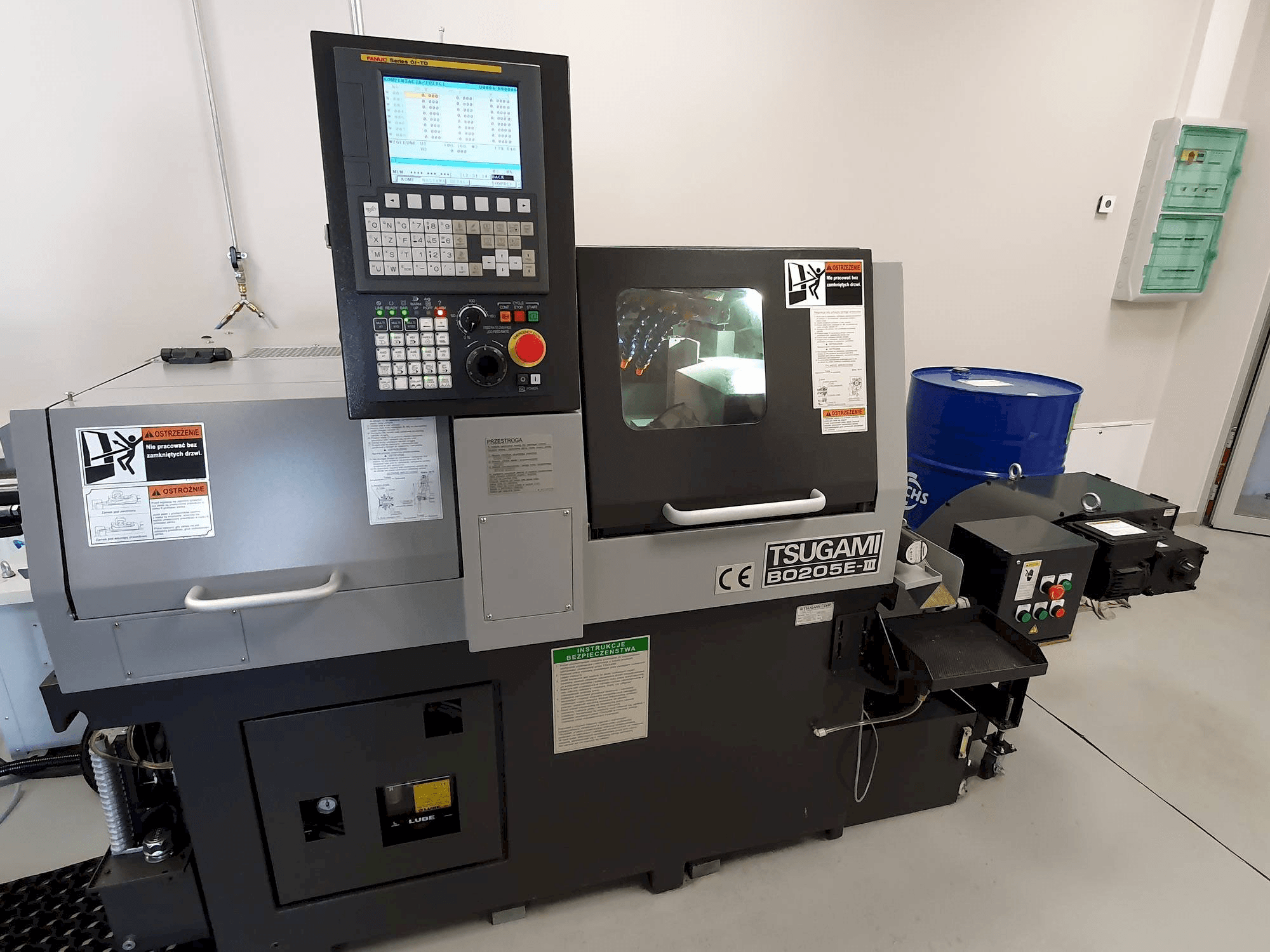

This Tsugami B0205E-III lathe machine was built in 2016 in Japan. This 5 axis machine is operated through a FANUC Oi-TD control unit. It has a record of only 289 hours of which 177 are cutting hours. This machine works with a spindle speed range 200 - 10.000 rpm. It is like new, in a perfect condition and ready for tests. This machine includes several options
Overview
- brand: TSUGAMI
- year: 2016
- MODEL: B0205E-III
- production hours: 289
- application type: Turning
- Location: Poland
- machine type: Swiss Type Turning Machine
- control unit brand: FANUC
Technical Information - TSUGAMI B0205E-III
Control Unit
- Control Brand: FANUC
- Control Model: Series oi-TD
Dimensions
- Machine Depth: 1135 mm
- Machine Height: 1700 mm
- Machine Weight: 2000 kg
Movement
- Number of Axes: 5
Technical Specification
- Spindle Speed: 10000 RPM
Additional Information
Additional equipment
- Automatic chip collection
- Bar feeder 3 meters with interface
- Automatic receiving of parts
- Workpiece ejector
- Illumination lamp
- High pressure pump
- Guide Bush
- 2 fixed stations for the counter spindle
- Option of entering the part through the counter spindle
Machine Benefits
Qualitative Machine Benefits
- The machine is in a perfect condition, like a new.
- Full documentation in english and polish
- Ready for tests
Technical Machine Benefits
- C axis on the main spindle - c axis on counter spindle
- Max speed for back spindle: 200-12. 000 rpm / max speed for tools: 200 - 5000 rpm
- Rapid traverse rate: 32m/min (x1: 24m/min)
- Max length for the workpiece: 170 mm
- Front and back overlapped machining is possible with the back spindle and the back tool post
- Pursuing operability, improving machining accuracy and reducing cycle time thanks to the newly developed software
- Realizing complex workpiece machining by the cross drill and the main spindle
- C-axis control
- Guide-bush type or guide-bushless type is selectable according to workpiece
- Automatic programming system prepared as standard
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
