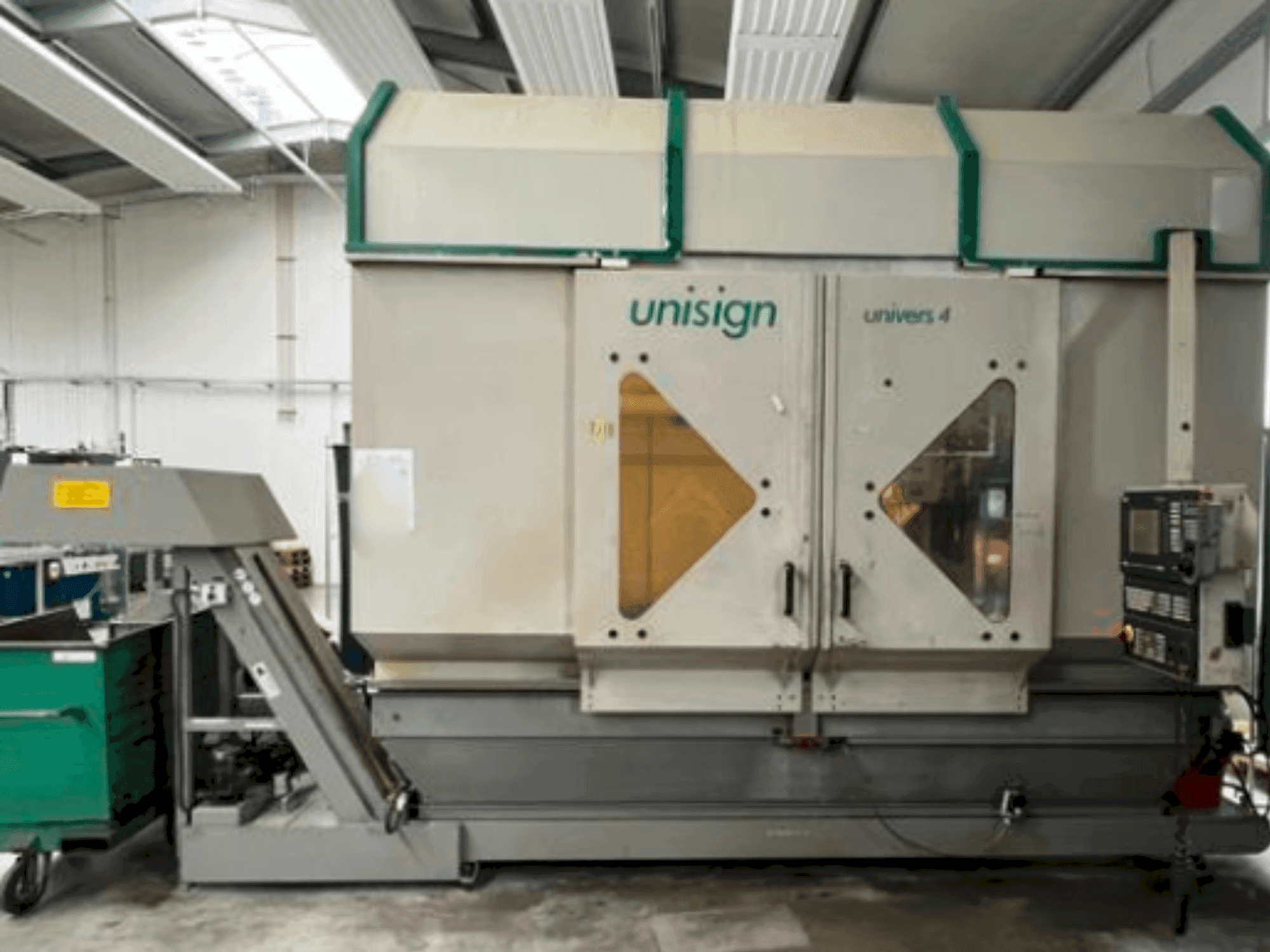

This 4-axis Unisign Univers 4 was manufactured in 2004, featuring X-travel of 1600mm, Y-travel and Z-travel of 400mm each, and a spindle speed up to 9000 rpm. It includes a chain tool magazine with 44 positions and a tool holder type DIN 69871-SK40. The machine weighs 9000 kg and requires a space of 6.5 x 3.5m. If you are looking to get high-quality milling capabilities consider the Unisign Univers 4 machine we have for sale. Contact us for more information.
Overview
- brand: Unisign
- year: 2004
- MODEL: Univers 4
- production hours: 19357
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
- control unit brand: SIEMENS
Technical Information - Unisign Univers 4
Control Unit
- Control Brand: SIEMENS
- Control Model: Sinumerik 810D
Dimensions
- Table Load: 150 kg
Movement
- Number of Axes: 4
Technical Specification
- Max. Tool Weight: 5 kg
- Number of Tools: 44
Additional Information
Additional equipment
- Measuring Probe RWP20.00
- Enclosed Work Area Enclosure according to UW
- Some SK40 Chucks
- Hydraulic/Pneumatic Clamping Option in the Machining Area
- Römheld 8400-185 Hydraulic Unit, Max. Pressure 500 bar
- Flushing Gun in the Machining Area
- Replacement Milling Spindle Available
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
