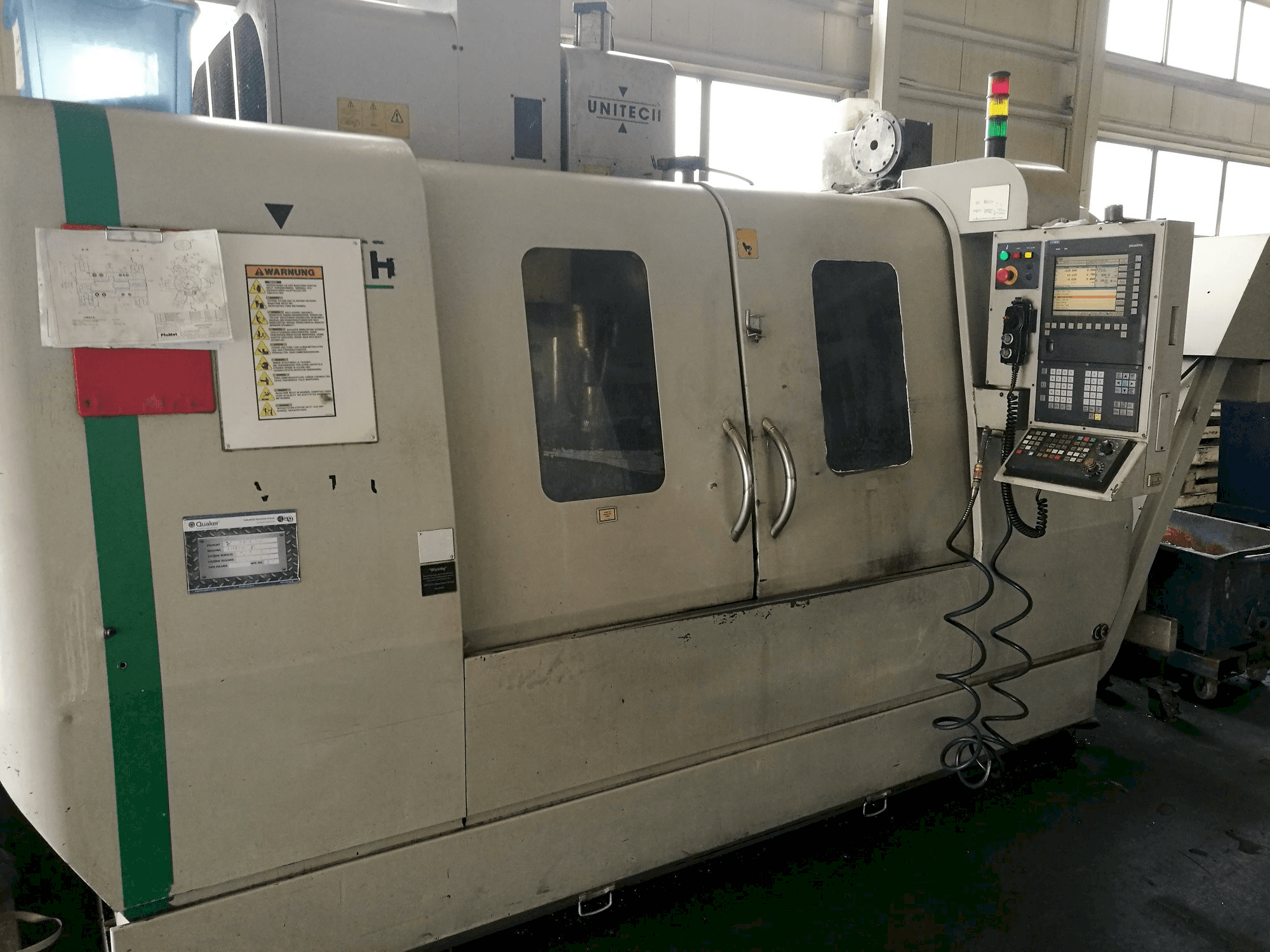

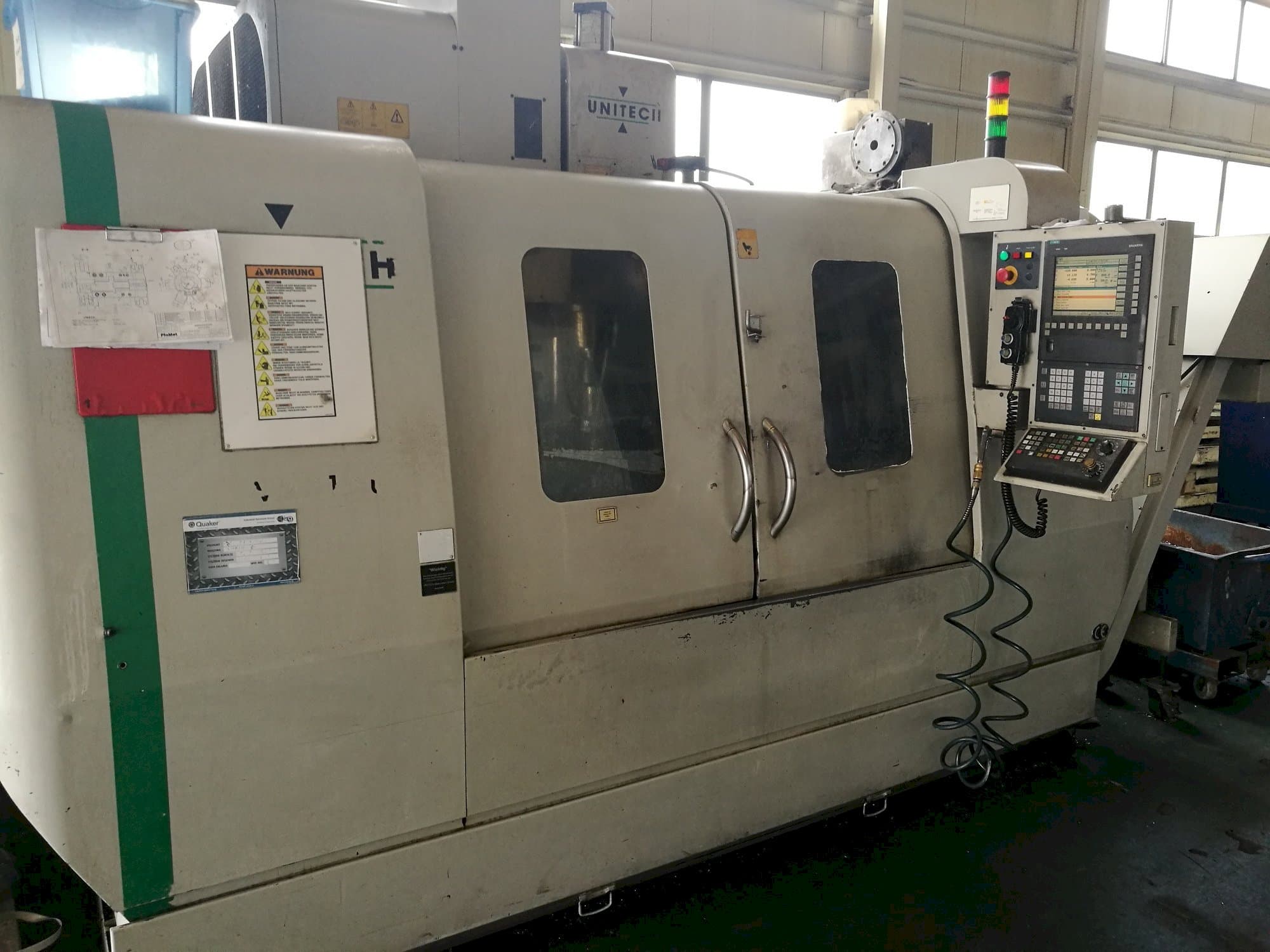

Front view of UNITECH VMC-1250P3 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

UNITECH VMC-1250P3

Photo Gallery

UNITECH - VMC-1250P3PL-MIL-UNI-2005-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
UNITECH VMC-1250P3 Vertical Machining Center

Show in original language

This UNITECH VMC-1250P3 Vertical Machining Center was manufactured in the year 2005 in Germany. It has been working for 65960 hours. It is operated through a SIEMENS SINUMERIK 810D control unit. This machine can work with 3 axis and has a 4th additional axis mounted on the table.

Overview

brand: UNITECH
year: 2005
MODEL: VMC-1250P3
production hours: 65960
application type: Milling
Location: Poland
machine type: Vertical Machining Centre
control unit brand: SIEMENS

Technical Information - UNITECH VMC-1250P3

General Data

Measurements width: 3900 mm
Measurements depth: 2520 mm
Measurements height: 2850 mm
Machine weight: 7500 kg

Control Unit

Model: SINUMERIK 810D
Brand: SIEMENS

Movement

X-AXIS Movement: 1250 mm
Y-AXIS Movement: 630 mm
Z-AXIS Movement: 600 mm

Workpiece

Workpiece weight: 1200 kg

Table

Outer length: 1370 mm
Outer width: 660 mm

Media

Main electronic connection: 400V / 50Hz
Power consumption: 46 kW
Chip conveyor: Yes
Internal cooling: Yes

Additional Information

Machine Benefits

Qualitative Machine Benefits

In 2018 the lead screws of all axes were regenerated and bearings with lead nuts replaced

Technical Machine Benefits

Additional 4th axis mounted on the table
Tool storage capacity 20 pcs
Automatic tool change
Spindle sk40
Electronic knob
Tool storage with atc

Machine History

Material thickness

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
