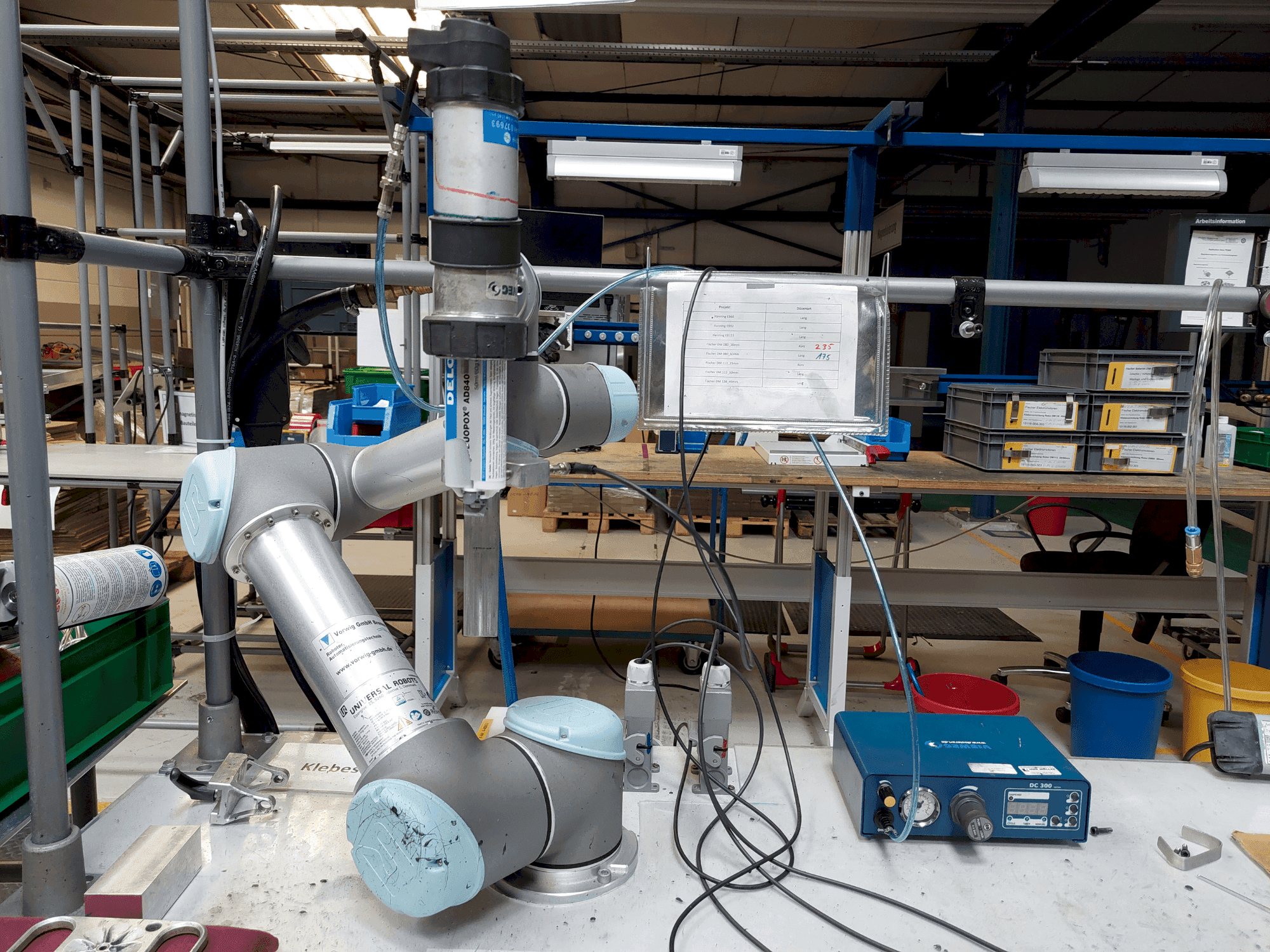

Universal Robots - UR5DE-ROB-UNI-2019-00001

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - I/o ports control box: 16 digital inputs, 16 digital outputs, 2 analog inputs, 2 analog outputs
  • - Communication: tcp/ip 1000 mbit, ieee 802. 3u, 100base-t ethernet port, modbus-tcp, ethernet/ip adapter
  • - Power supply: 24 v 2a (control box)
  • - Programming: graphical polyscope interface on 12” touchscreen
  • - Speed: joints max 180°/s, tool approx. 1 m/s
  • - Degrees of freedom: 6 rotational joints
  • - Pose repeatability: ± 0. 1 mm
  • - Maximum payload: 5 kg
  • - Robot type: ur5
  • - Joint range: ± 360° for all joints
• Qualitative Machine Benefits:
  • - Footprint: Ø149 mm
  • - Noise level: 72 db(a)
  • - Ip classification: ip54
  • - Cleanroom classification: robot arm: iso class 5, control box: iso class 6
  • - Maximum average power: approx. 390 w
  • - Maximum average power: approx. 390 w
  • - Materials: aluminum, pp plastic
  • - Temperature range: 0-50 °c
  • - Temperature range: 0-50 °c
