Victor - V-turn A200YIT-TUR-VIC-2022-00001

Name: Victor V-turn A200Y
Brand: Victor
SKU: IT-TUR-VIC-2022-00001
Price: 12489700 INR
Availability: InStock

Rs. 12,489,700

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
VICTOR V-turn A200Y (2022) Lathe

Show in original language

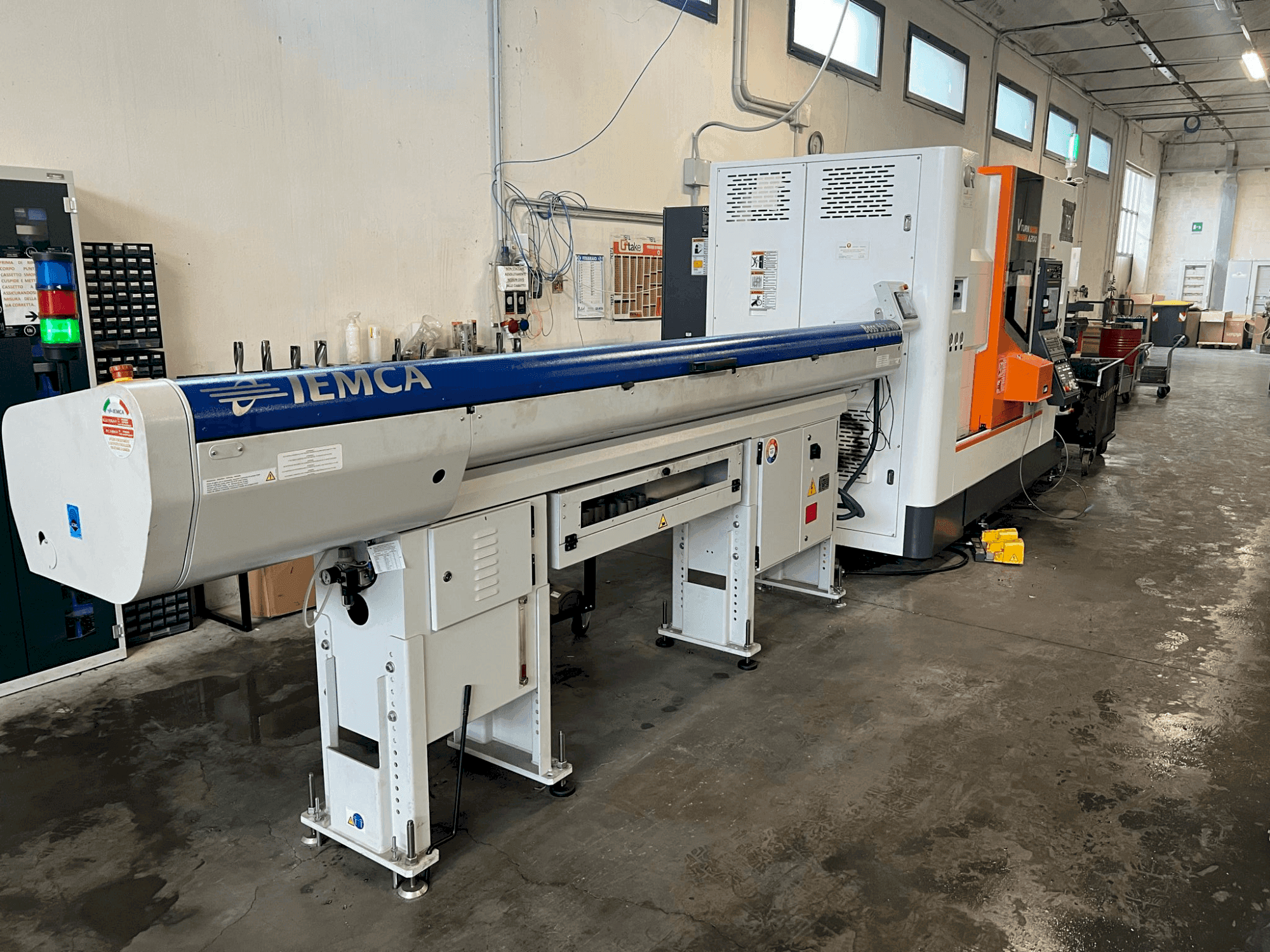

This VICTOR V-turn A200Y Lathe was manufactured in the year 2022 in Taiwan. It is equipped with FANUC Series 0i-TF Plus control unit. The machine has a spindle (Spindle nose: ASA A2-6) and a counter spindle (Spindle nose: ASA A2-5). The machine disposes of a turret with 12 positions. It comes with IEMCA bar feeder included in the scope of delivery.

Overview

brand: Victor
year: 2022
MODEL: V-turn A200Y
application type: Turning
Location: Italy
machine type: Vertical Turning Machine
availability: Immediately
control unit brand: FANUC

Technical Information - Victor V-turn A200Y

General Data

Measurements width: 2430 mm
Measurements depth: 3882 mm
Measurements height: 2286 mm
Machine weight: 7000 kg

Control Unit

Model: Series 0i-TF Plus
Brand: FANUC

Main drive

Number of spindles: 2
Spindle motor power: 11-15kW
Number of axis: 4

Movement

X-AXIS Movement: 165+50 mm
Y-AXIS Movement: +45 mm
Z-AXIS Movement: 6500 mm
B-AXIS Movement: 550 mm

Turret

Number of turrets: 1
Number of tool slots: 12

Additional equipment

- IEMCA bar feeder included

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Distance between tips: 604 mm
- - Maximum turning diameter on dear: 720 num
- - Maximum turning diameter: 390 mm
- - Spindle bar passage: 52 mm // maximum speed: 4200 rpm // spindle nose: asa a2-6
- - Counter spindle bar passage: 30 mm // maximum speed: 7000 rpm // spindle nose: asa a2-5
- - Number of turret positions: 12 // maximum speed: 6000rpm // attic turret: bmt-5
- - Rapid advances x -z: 24m/min
- - Rapid forwarding b: 15m/min
- - Counter-spindle motor: 7. 5-11 kw // powered tool motor: 5. 5 kw
- - X - z axis servomotor: 4-3kw

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
