- VOLLMER QW72 P Erosion machine

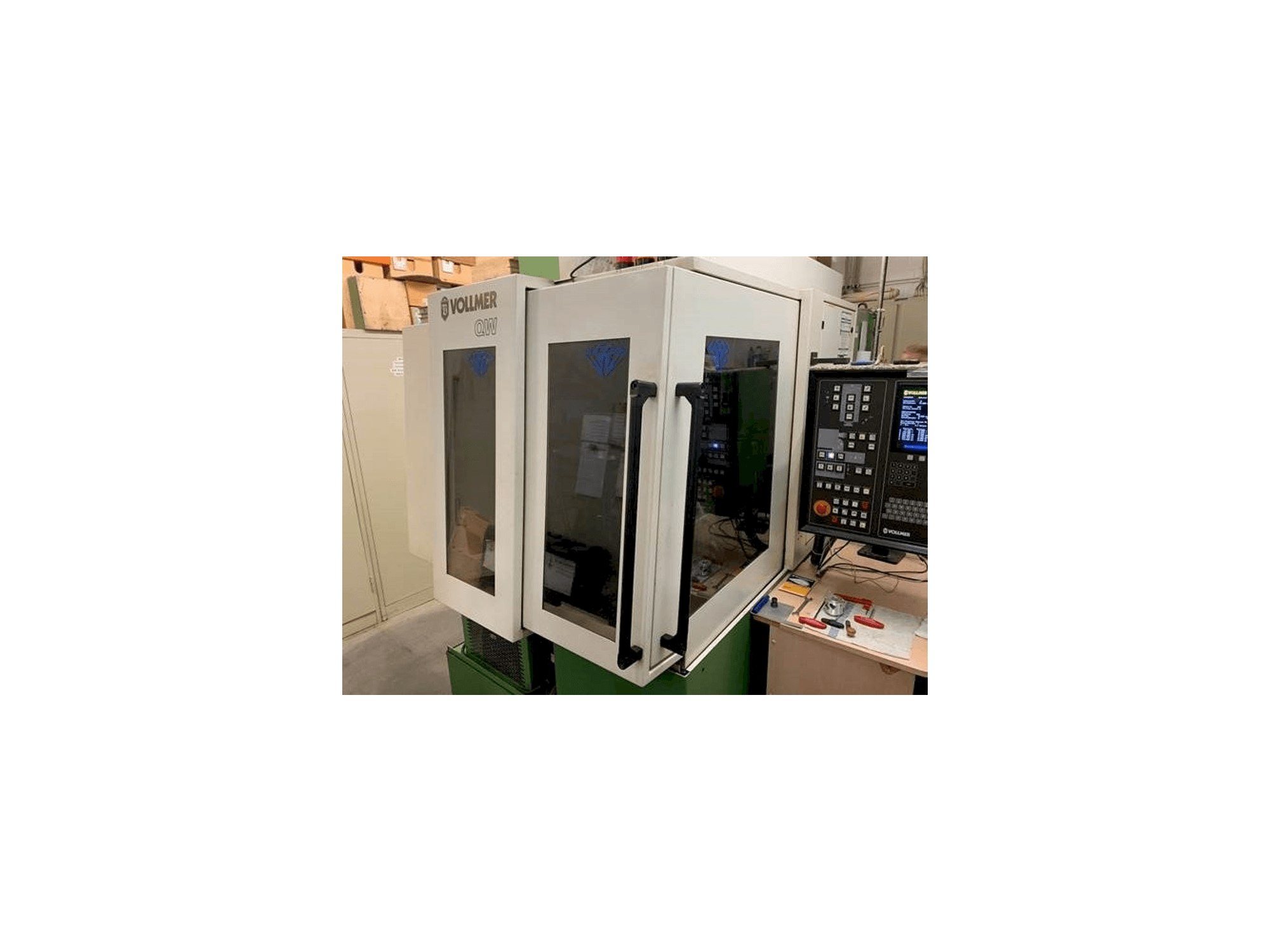

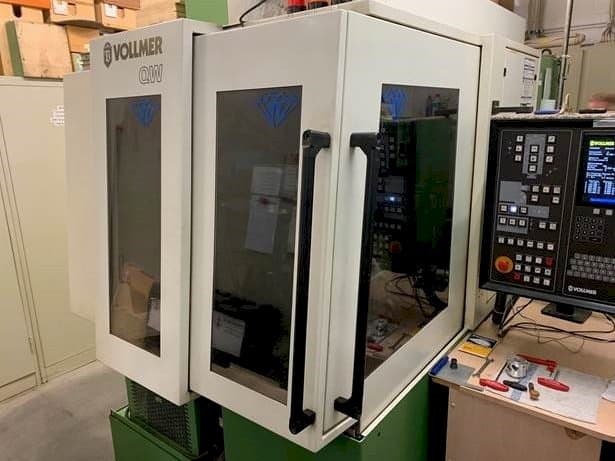

This VOLLMER QW72 P Erosion machine was manufactured in the year 1997 and has 91446 operating hours. It is equipped with a VOLLMER PMC-System control unit. The machine has a spindle speed of 4000 rpm.
Overview
- brand: VOLLMER
- year: 1997
- MODEL: QW72 P
- production hours: 91446
- application type: EDM
- Location: Germany
- machine type: Wire EDM Machine
- availability: Sold
Technical Information - VOLLMER QW72 P
Main drive
- Spindle speed range: 4000 1/MIN
Movement
- X-AXIS Movement: 280 mm
- Y-AXIS Movement: 280 mm
- Z-AXIS Movement: 330 mm
- W-Axis Movement: 50 mm
Tools
- Type of tool holder: ISO 40
Additional Information
- Technical Machine Benefits:
- - Milling cutter: outside diameter - bis 250 mm, cutting edge length - bis 100 mm
- - Shank tools: outside diameter - 10 mm bis 100 mm, cutting edge length - bis 100 mm
- - Disc-shaped tools: outside diameter - bis 45 mm, cutting edge length - bis 20 mm
- - Tool weight (with holder) max 20 kg
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
