➤ Used VOLLMER QXD 250 - Eroder For sale | gindumac.com

Show in original language

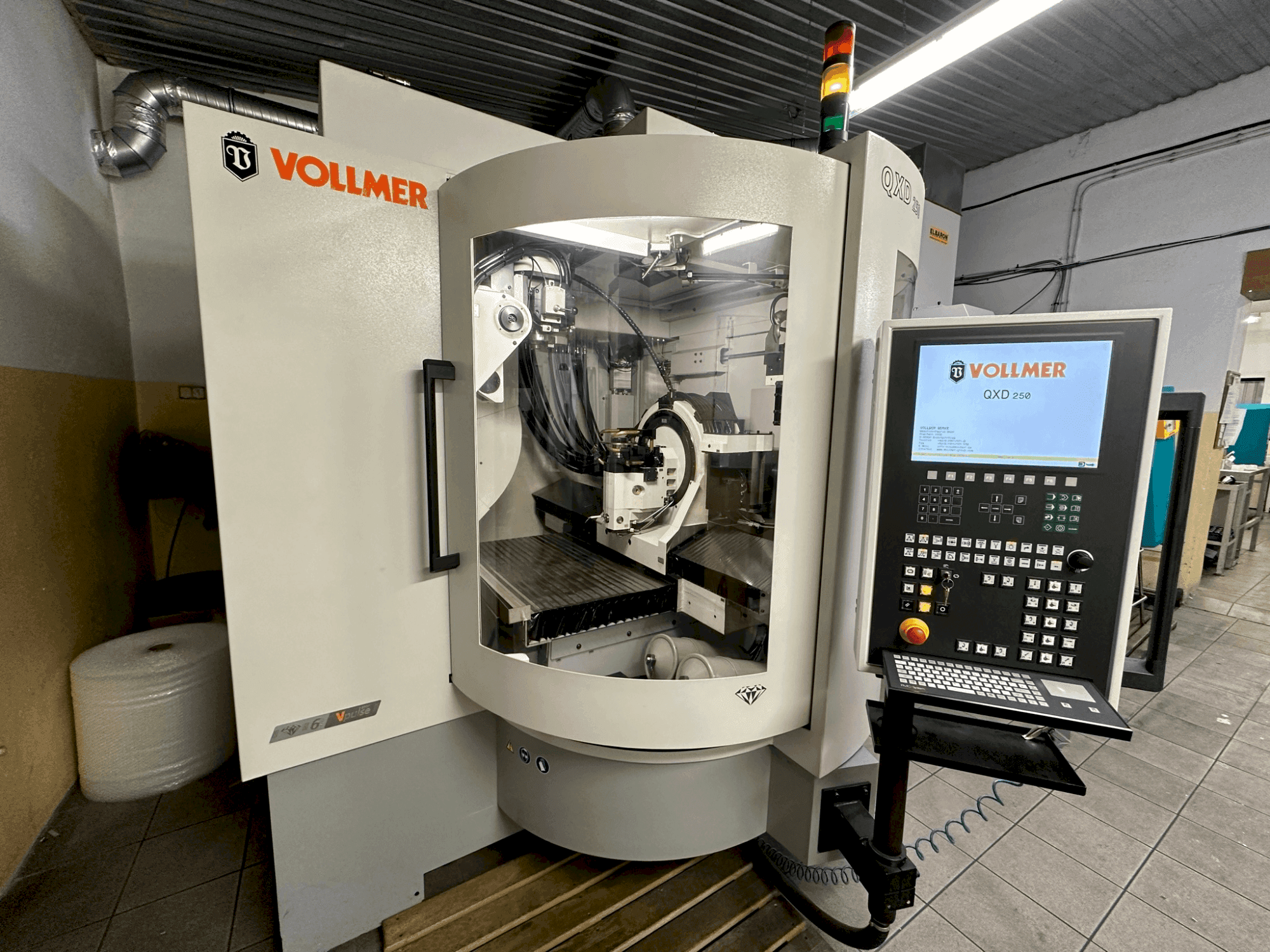

This 6-axis VOLLMER QXD 250 was manufactured in 2014 and is a Disk erosion machine for complete machining of PCD-tipped tools. It features a robust VOLLMER PIVIC-System control, with a main spindle speed of 4500 rpm and torque of 6 Nm. The machine can handle workpieces up to 320 mm in diameter and 250 mm in length. With 9111 working hours, the VOLLMER QXD 250 machine we have for sale represents a significant opportunity. Contact us for further details.

Overview

brand: VOLLMER
year: 2014
MODEL: QXD 250
production hours: 9111
application type: EDM
Location: Poland
machine type: Die-Sinking EDM Machine
availability: Immediately

Technical Information - VOLLMER QXD 250

General Data

Machine weight: 7200 kg

Main drive

Number of spindles: 1
Spindle speed range: 4500 rpm 1/MIN
Number of axis: 6

Movement

X-AXIS Movement: 520 mm
Y-AXIS Movement: 970 mm
Z-AXIS Movement: 420 mm
A-AXIS Movement: 360° MM
B-AXIS Movement: ±20° MM
E_(Distance_table/ram) Movement: 210° MM

Additional equipment

- Coolant tank capacity: 310 l

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Spindle torque: 6 nm
- - Robust control system with vollmer pivic-system
Qualitative Machine Benefits:
- - Advanced machining capabilities for pcd-tipped tools

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
