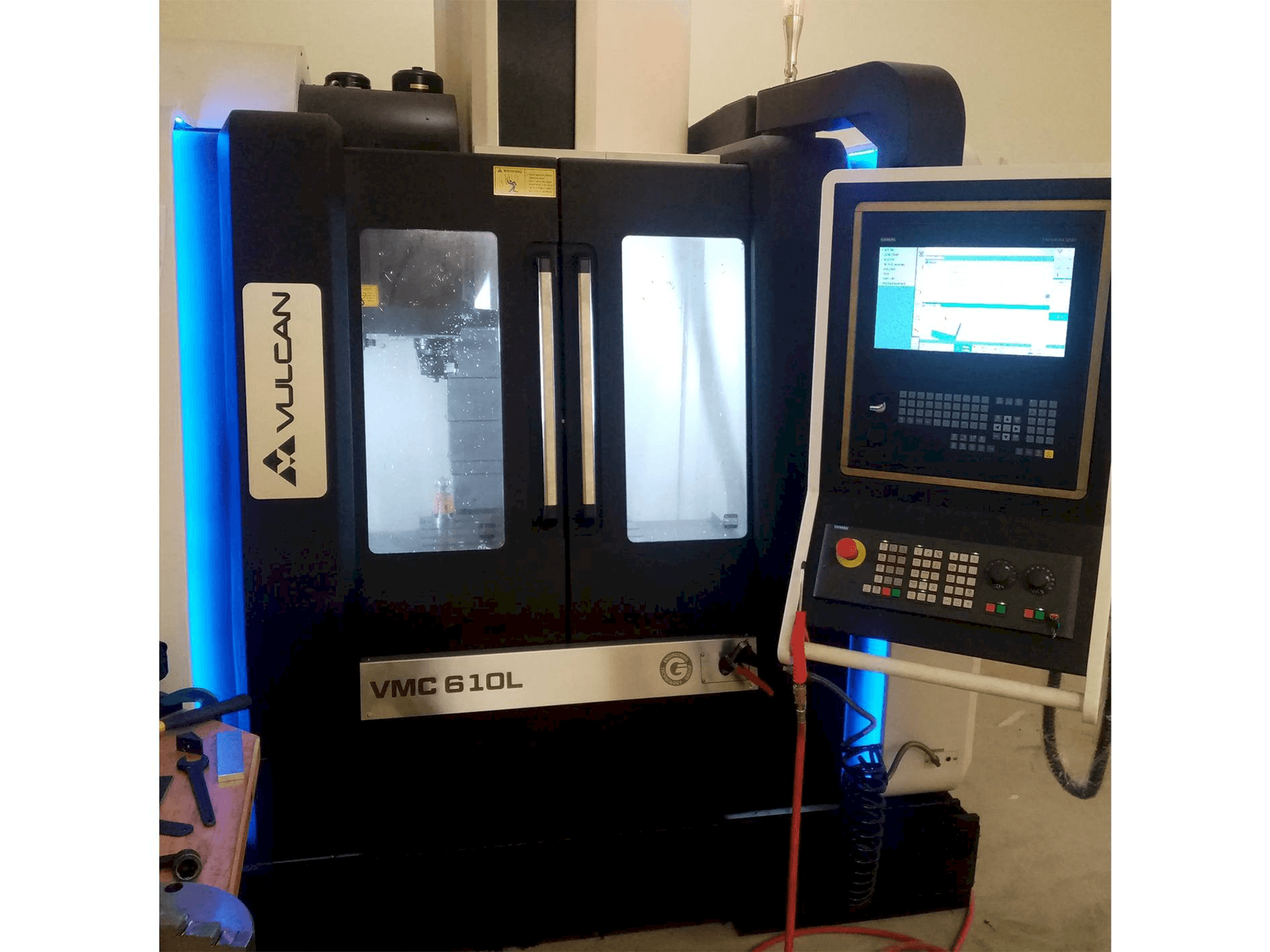

This VULCAN VMC 610L Vertical machining center was manufactured in the United Kingdom in 2020. It is equipped with a Siemens 828D / Conversational control unit. This 3 axis machine operates with a spindle speed up to 10000 rpm. Includes toolbox and tools, a spindle air blast and lubrication system with alarm.
Overview
- brand: VULCAN
- year: 2020
- MODEL: VMC 610L
- application type: Milling
- Location: Ireland
- machine type: Vertical Machining Centre
- control unit brand: SIEMENS
Technical Information - VULCAN VMC 610L
Control Unit
- Control Brand: SIEMENS
- Control Model: 828D / Conversational
Dimensions
- Machine Depth: 1852 mm
- Machine Weight: 4500 kg
- Table Length: 650 mm
- Table Load: 400 kg
- Table Width: 400 mm
Movement
- Number of Axes: 3
- X-axis Travel: 610 mm
- Y-axis Travel: 400 mm
- Z-axis Travel: 450 mm
Technical Specification
- Number of Tools: 24
- Spindle Power: 5.5 kW
- Spindle Speed: 10000 RPM
Additional Information
Machine Benefits
Qualitative Machine Benefits
- Fully enclosed splash guard
- Levelling blocks
- Toolbox and tools
- Usb interface
- Spindle oil chiller (integrated in the machine guarding)
- Spindle air blast
- Flushing wash system
- Mpg hand wheel
- 20 bar through spindle coolant
- Belt type chip conveyor with overflow type coolant tank
Technical Machine Benefits
- Spindle centre to column: 130 - 580 mm
- T-slots (no. X width x pitch): 4 x 18 x 75 mm
- Belt spindle
- Tool selection: bi-directional
- Coolant tank capacity: 256 l
- Compressed air req. (min. ): 5. 5 - 6. 5 kg/cm²
- Shop mill conversational programming
- Heat exchanger
- Lubrication system with alarm
- Led worklamps x 2 set
Extra Information
-Air and coolant gun -Built in coolant nozzles
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
