- WEGMANN-BAASEL VFA 1750 Laser Cutting Machine

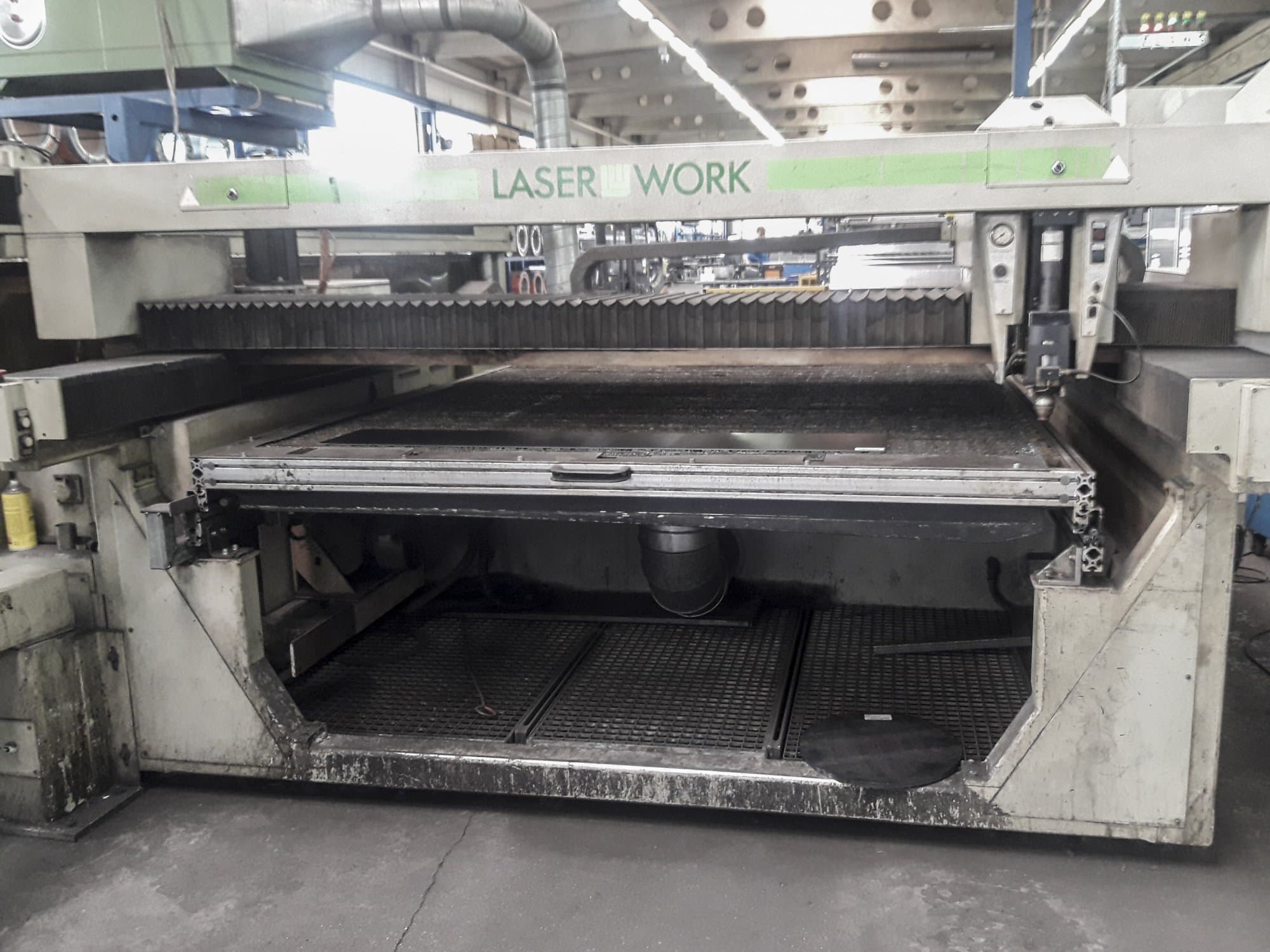

This WEGMANN-BAASEL VFA 1750 Laser Cutting Machine was manufactured in 1990 in Germany and has a working record of 16500 production hours. The machine is equipped with an IBH Macro Control unit and allows very easy programming due to ISO standards. During the past, this machine produced supplies for ventilation systems and offers an outstanding price-performance ratio.
Overview
- brand: WEGMANN-BAASEL
- year: 1990
- MODEL: VFA 1750
- production hours: 16500
- application type: Cutting
- Location: Austria
- machine type: CO2 Laser Cutting Machine
Technical Information - WEGMANN-BAASEL VFA 1750
General Data
- Measurements width: 6300 mm
- Measurements depth: 14600 mm
- Measurements height: 2000 mm
Control Unit
- Model: Macro
Main drive
- Laserpower: 1.75 kW
Movement
- X-AXIS Movement: 3000 mm
- Y-AXIS Movement: 2000 mm
- Z-AXIS Movement: 150 mm
- V-AXIS Movement: 360 mm
Workpiece
- Workpiece drm: 400 mm
- Workpiece x: 3000 mm
- Workpiece y: 2000 mm
- Workpiece z: 5 mm
Max Material thickness
- Steel: 5 mm
- Stainless steel: 3 mm
- Aluminum: 2 mm
Additional equipment
- - Movable palette
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
