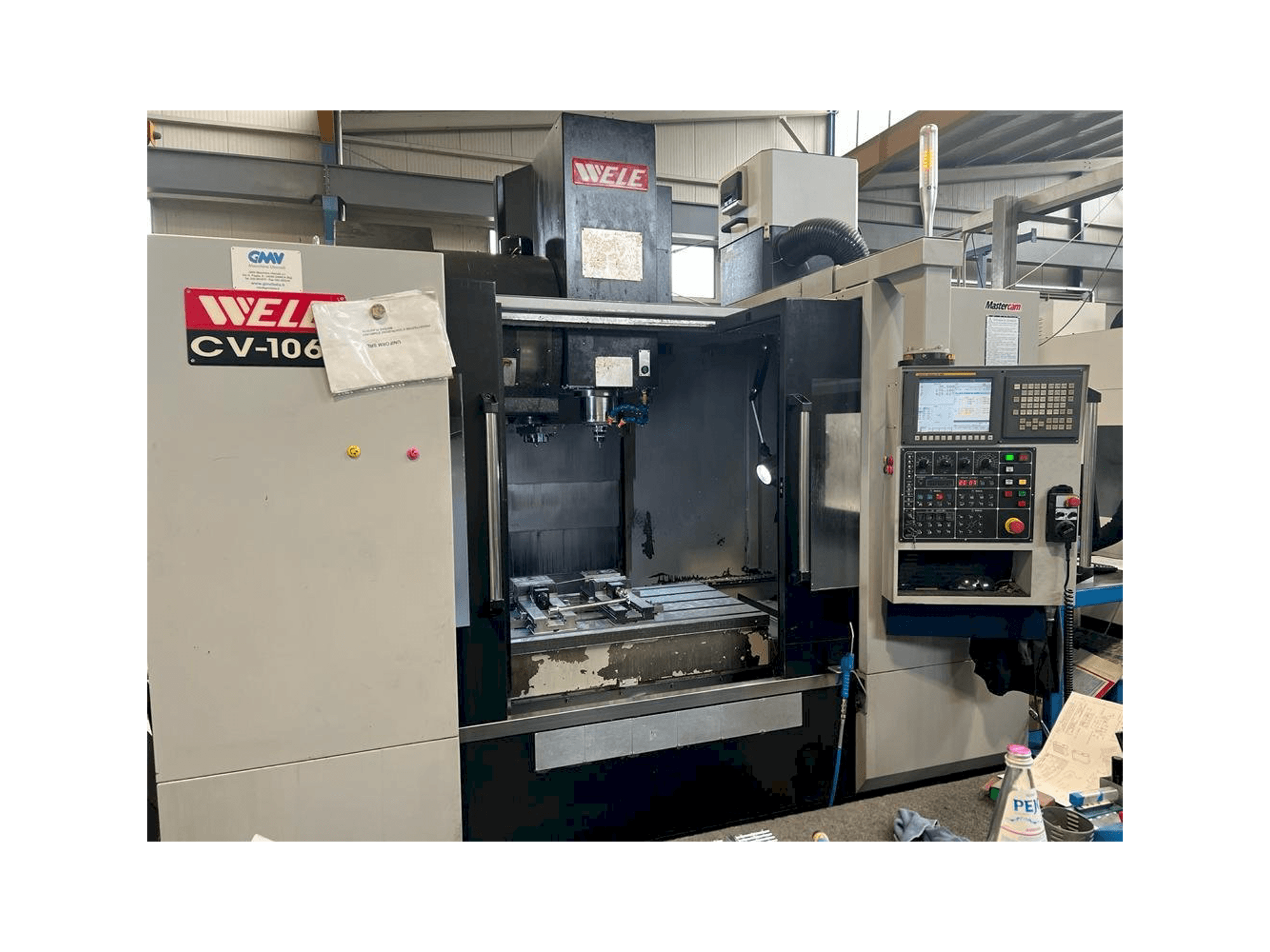

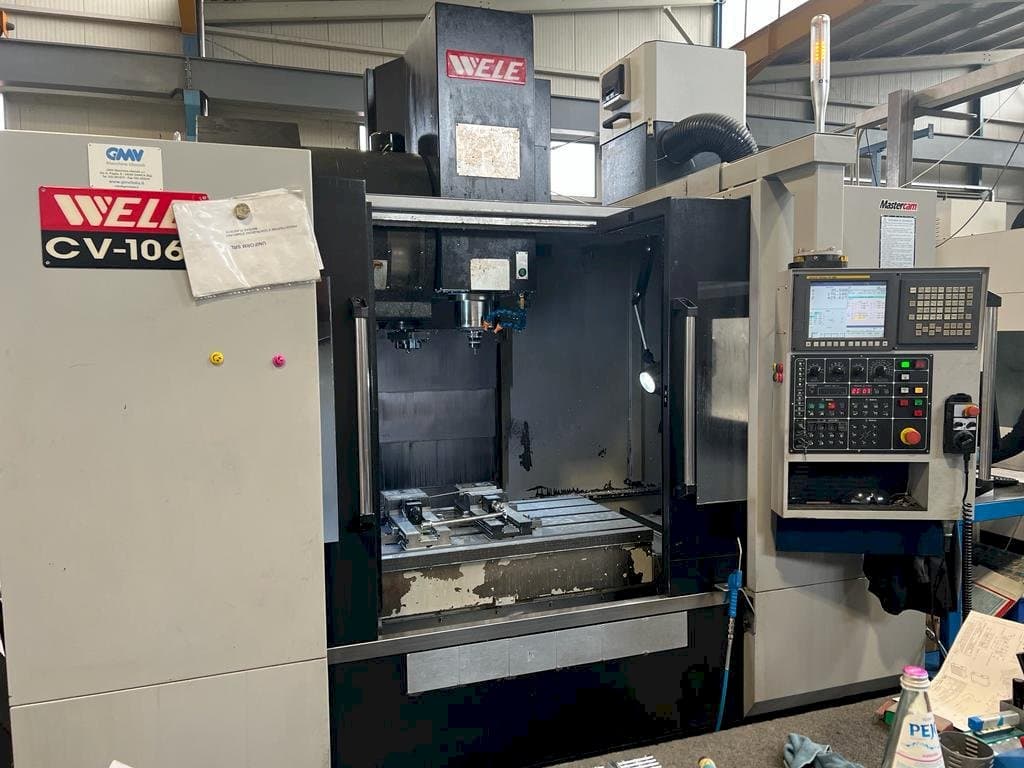

WELE CV 1060 Vertical Machining center

Show in original language

This WELE CV 1060 Vertical Machining center was manufactured in the year 2016 in China. It is equipped with a Fanuc Series Oi MD control unit and has 3 axis. The machine has a spindle speed of 10000 rpm.

Overview

brand: Wele
year: 2016
MODEL: CV 1060
application type: Milling
Location: Italy
machine type: Vertical Machining Centre
control unit brand: FANUC

Technical Information - Wele CV 1060

General Data

Measurements width: 3550 mm
Measurements depth: 2400 mm
Measurements height: 2800 mm
Machine weight: 5500 kg

Control Unit

Model: Series Oi MD
Brand: FANUC

Main drive

Spindle speed range: 10000 1/MIN
Spindle motor power: 7.5KW
Tool taper: BT40
Number of axis: 3

Movement

X-AXIS Movement: 1020 mm
Y-AXIS Movement: 600 mm
Z-AXIS Movement: 600 mm

Table

Outer length: 1150 mm
Outer width: 600 mm

Tools

Slots in storage: 24

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Distance from spindle nose to table: 105 - 705mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
