Windsor W1000 Injection Moulding Machine

Show in original language

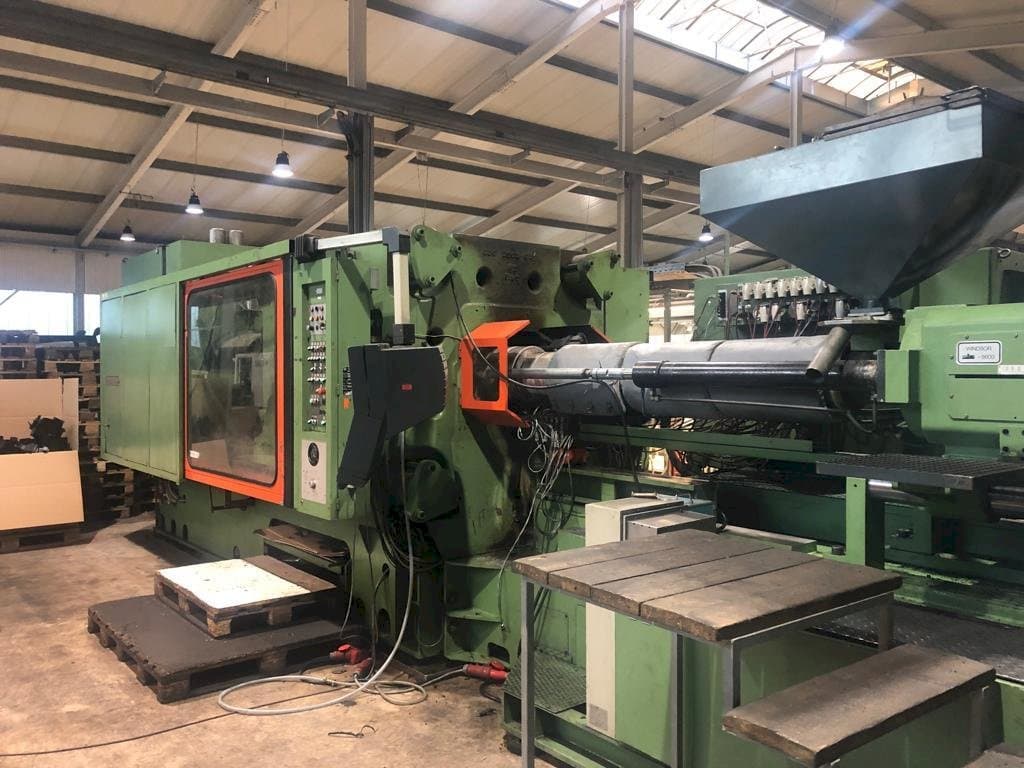

This Windsor W1000 Injection Moulding Machine was manufactured in 1992 in Germany. This machine can operate with a clamping force of 10000 kN and an injection pressure of 1800 bar. Must be noted that there is a complete, functioning card set including installation frame of the same machine.

Overview

brand: Windsor
year: 1992
MODEL: W1000
production hours: 0
application type: Injection Moulding
Location: Germany
machine type: Hydraulic Injection Moulding Machine

Technical Information - Windsor W1000

Injection Unit

Screw diameter: 115 mm
Stroke volume: 4770 CM³
Injection pressure: 1800 bar
Heating capacity: 307 kW

Clamping unit

Clamping force: 10000 kN
Opening stroke: 1488 mm
Distance between bars: 1190x1190 mm
Mould height min: 500 mm
Mould height max: 4054 g

Media

Main electronic connection: 380 V / 50 Hz
Power consumption: 307 kW

Additional equipment

- 1x IQT 350
- 1x AIO33
- 2x Temp33
- 1x DIS40
- 1x VALVE30
- 1x P&V30
- 2x DO31
- 2x DI30
- 1x CPU70
- 1x PWR30

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
