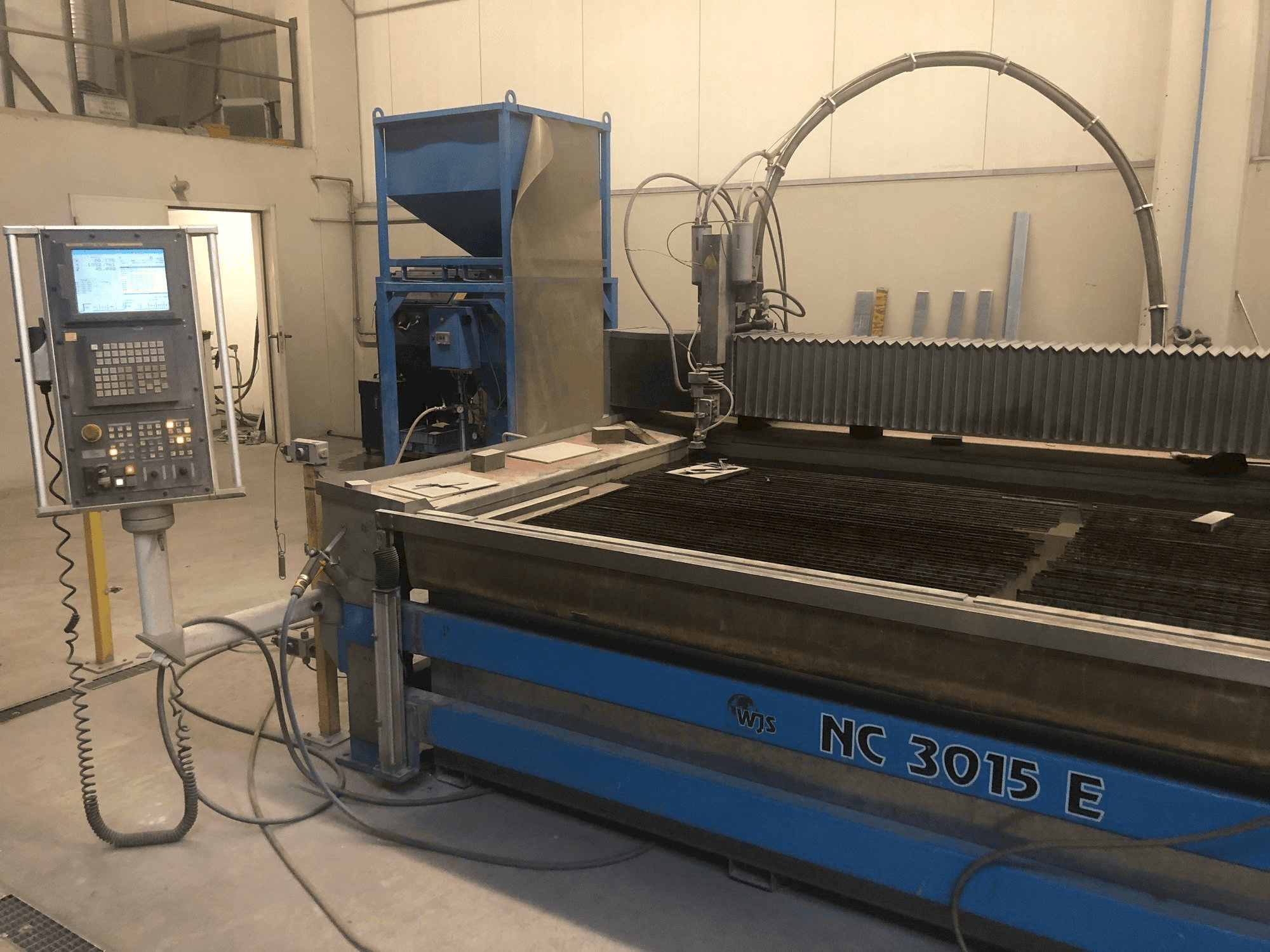

This WJS NC 3015 E Waterjet Cutting Machine was built in Sweden in 2007. It has been working for 10754 hours. It works through a GE Fanuc Series 18i-MB control unit. This machine has 2 cutting heads and a high pressure pump 6 bar. It presents accessories/tools available for additional costs

Overview

brand: WJS
year: 2007
MODEL: NC 3015 E
production hours: 10754
application type: Cutting
Location: Germany
machine type: Waterjet Cutting Machine
availability: Sold
control unit brand: FANUC

Technical Information - WJS NC 3015 E

General Data

Machine weight: 3000 kg

Control Unit

Model: Series 18i-MB
Brand: FANUC

Movement

X-AXIS Movement: 1540 mm
X-AXIS Rapid traverse: 10000 mm/min
Y-AXIS Movement: 3010 mm
Y-AXIS Rapid traverse: 10000 mm/min
Z-AXIS Movement: 175 mm
Z-AXIS Rapid traverse: 4000 mm/min

Table

Outer length: 3200 MM
Outer width: 1750 mm

Machine specific data

Number of cutting heads: 2

Media

Main electronic connection: 3 x 400 V 1004, 50Hz

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Maximum clamping load: 500kg/m2
- - Bridge length: 500 mm
- - Maximum distance between grids and nozzles (abrasive cutting): 160 mm
Qualitative Machine Benefits:
- - Accessories/tools available for additional costs

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
