ZAYER KP 6000 AR Milling machine

Show in original language

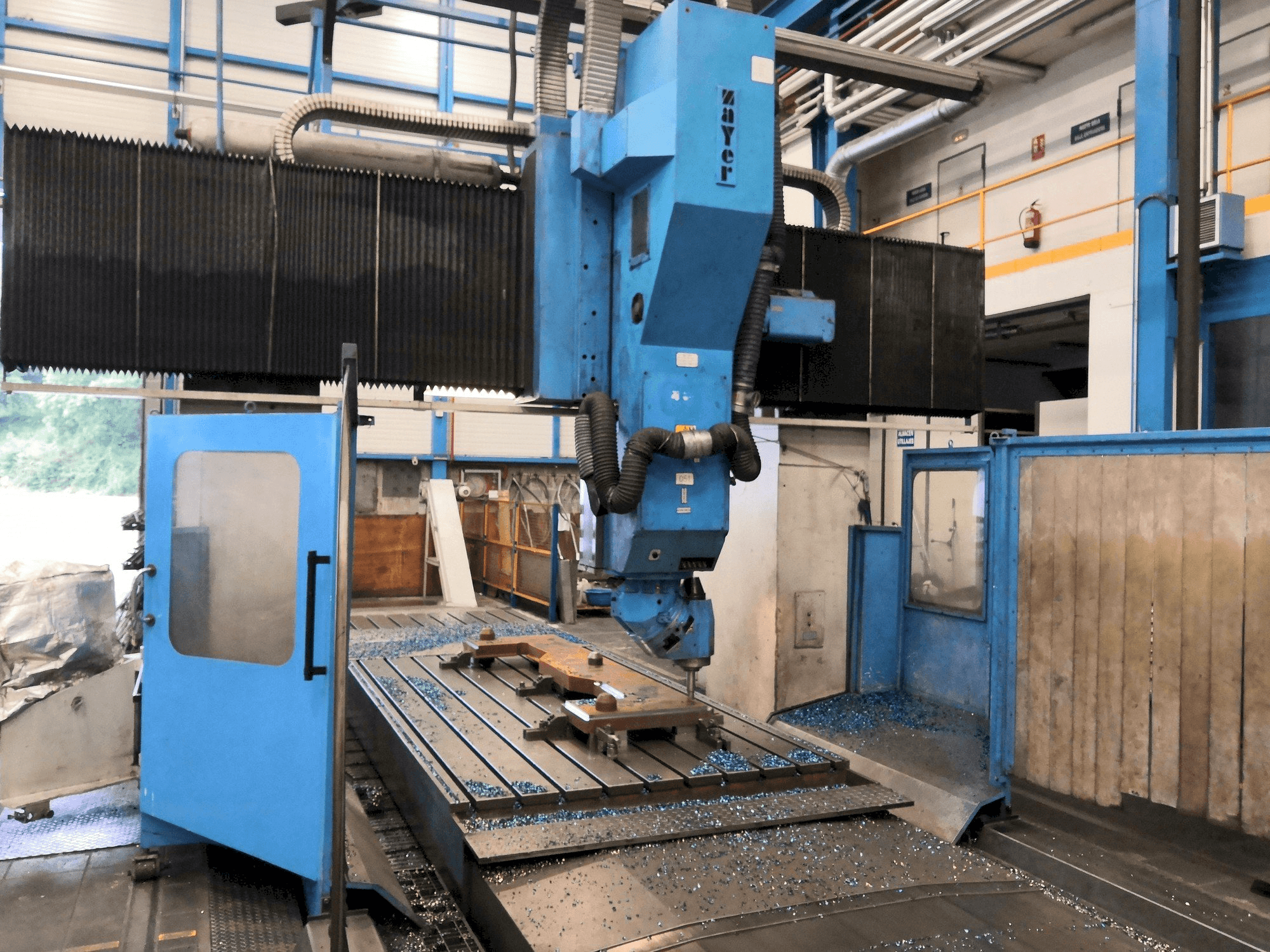

This ZAYER KP 6000 AR Milling machine was manufactured in the year 2002 in Spain and has 48852 working hours. It is equipped with a FIDIA C1 control unit and has 5 axis. The machine has a spindle speed of 5500 rpm.

Overview

brand: Zayer
year: 2002
MODEL: KP 6000 AR
production hours: 48852
application type: Milling
Location: Spain
machine type: Gantry Milling Machine
availability: Sold
control unit brand: FIDIA

Technical Information - Zayer KP 6000 AR

Control Unit

Model: C1
Brand: FIDIA

Main drive

Spindle speed range: 5500 1/MIN
Number of axis: 5

Movement

X-AXIS Movement: 6000 mm
Y-AXIS Movement: 3600 mm
Z-AXIS Movement: 1100 mm
C-AXIS Movement: 360 ª MM

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Spindle power control module installed
- - Air-cooled and external coolant
- - External dust extraction module installed. Maximum power 6 bar.
- - Make 800 mm depth bores
- - Only external cooling, air and coolant
- - Width between columns: 2800mm.
- - Gantry height to head: +/- 1100mm.
- - Gantry height without head: 1700mm.
Qualitative Machine Benefits:
- - Bearings + extension head gears replaced at 43026h
- - Bearings + angular gearboxes replaced at 45682h
- - Z-axis motor replaced at 47260h.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
