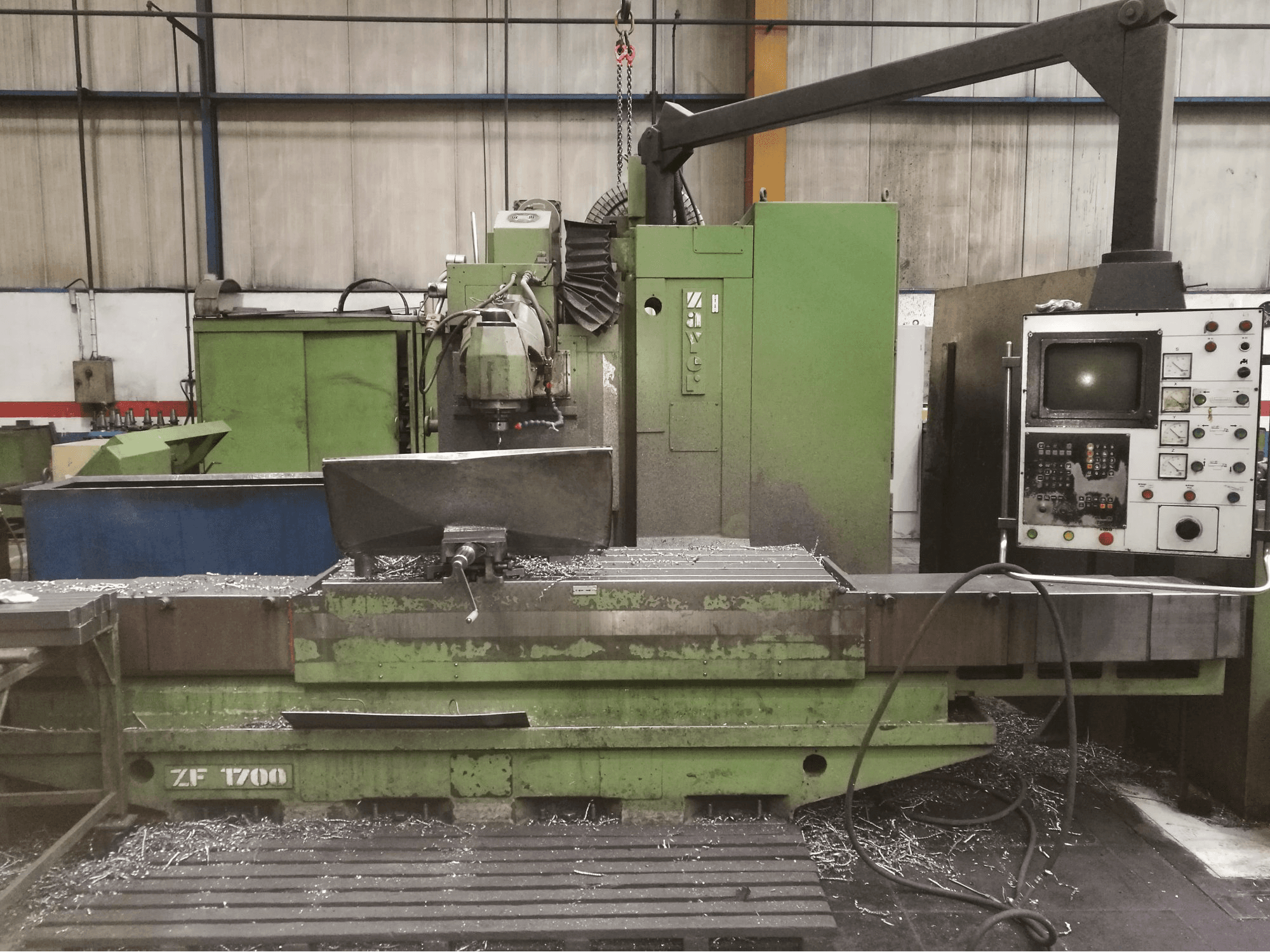

Zayer ZF 1700

Photo Gallery

Zayer - ZF 1700ES-MIL-ZAY-1990-00008

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Zayer ZF 100 Bed Type Milling Machine

Show in original language

This Zayer ZF 100 Bed Type Milling Machine from 1990 has a production record of only 20515 hours. With a spacious table of 1700 x 630 millimeters (L x W), and a range of movements of 1400, 700 and 700 millimeters (X-Axis, Y-Axis and Z-Axis respectively), the equipment is operated through a HEIDENHAIN TNC 355 Control Unit. A remote control is also included.

Overview

brand: Zayer
year: 1990
MODEL: ZF 1700
production hours: 20515
application type: Milling
Location: Spain
machine type: Gantry Milling Machine
control unit brand: HEIDENHAIN

Technical Information - Zayer ZF 1700

General Data

Measurements width: 3557 mm
Measurements depth: 5200 mm
Measurements height: 2750 mm
Machine weight: 9000 kg

Control Unit

Model: TNC 355
Remote control: Yes
Brand: HEIDENHAIN

Main drive

Spindle speed range: 3000 1/min
Spindle motor power: 14.7 kW

Movement

X-AXIS Movement: 1400 mm
X-AXIS Rapid traverse: 15 m/min
Y-AXIS Movement: 700 mm
Y-AXIS Rapid traverse: 15 m/min
Z-AXIS Movement: 700 mm
Z-AXIS Rapid traverse: 15 m/min

Workpiece

Workpiece weight: 6000 kg

Table

Outer length: 1700 mm
Outer width: 630 mm
TSlots size: 18 mm
Number of tslots: 5

Media

Main electronic connection: 380 V / 50 Hz
Power consumption: 44.5 kVA

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
