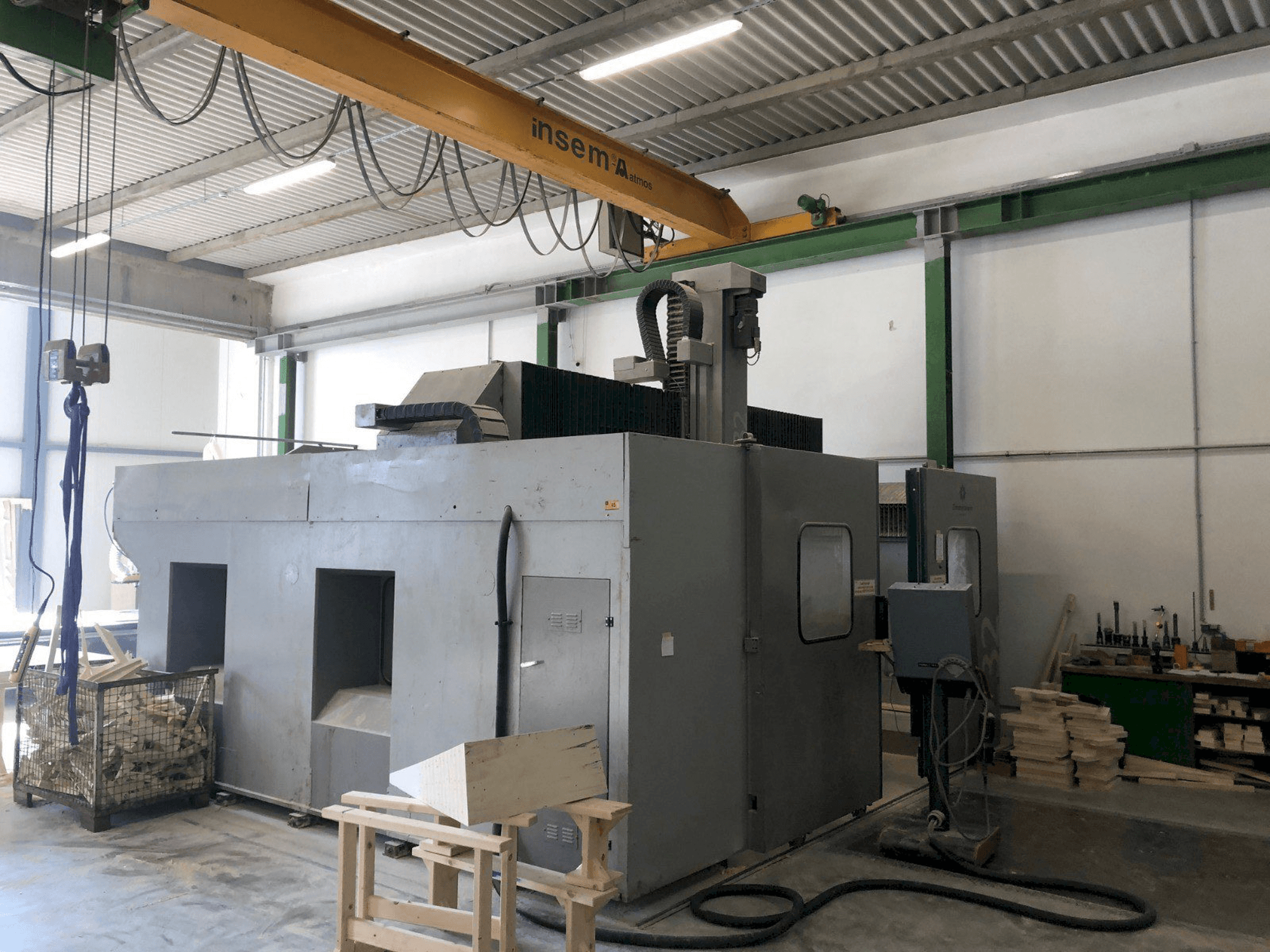

Zimmermann FZ 32 Milling Machine

Show in original language

This Zimmermann FZ 32 Milling Machine was manufactured in the year 2002 in Germany. It has been working for 32633 hours, of which 20673 are spindle hours. It is equipped with a Fidia C20 control unit. This machine can work with a spindle speed up to 18000 rpm. This 5 axis machine is ideal for milling models, for wood, for composites, for aluminium, for casting industry. The spindle head condition is in great conditions, liquid cooled with air blazers.

Overview

brand: Zimmermann
year: 2002
MODEL: FZ 32
production hours: 32633
application type: Milling
Location: Slovenia
machine type: Gantry Milling Machine
availability: Sold
control unit brand: FIDIA

Technical Information - Zimmermann FZ 32

Control Unit

Model: C20
Brand: FIDIA

Main drive

Spindle speed range: 18000 1/MIN
Tool taper: HSK 63

Movement

X-AXIS Movement: 3000 mm
Y-AXIS Movement: 3000 mm
Z-AXIS Movement: 1250 mm

Table

Outer length: 3000 mm
Outer width: 3000 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Surface of table - see pictures, only wood processing, no damages on slots or on surfaces
- - Options built in - see pictures - renishaw head2x, fidima tms, tool breakage control
Qualitative Machine Benefits:
- - Spindle / head condition - great condition - liquid cooled with air blazers

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
