Zoller H420 Measuring Machine

Show in original language

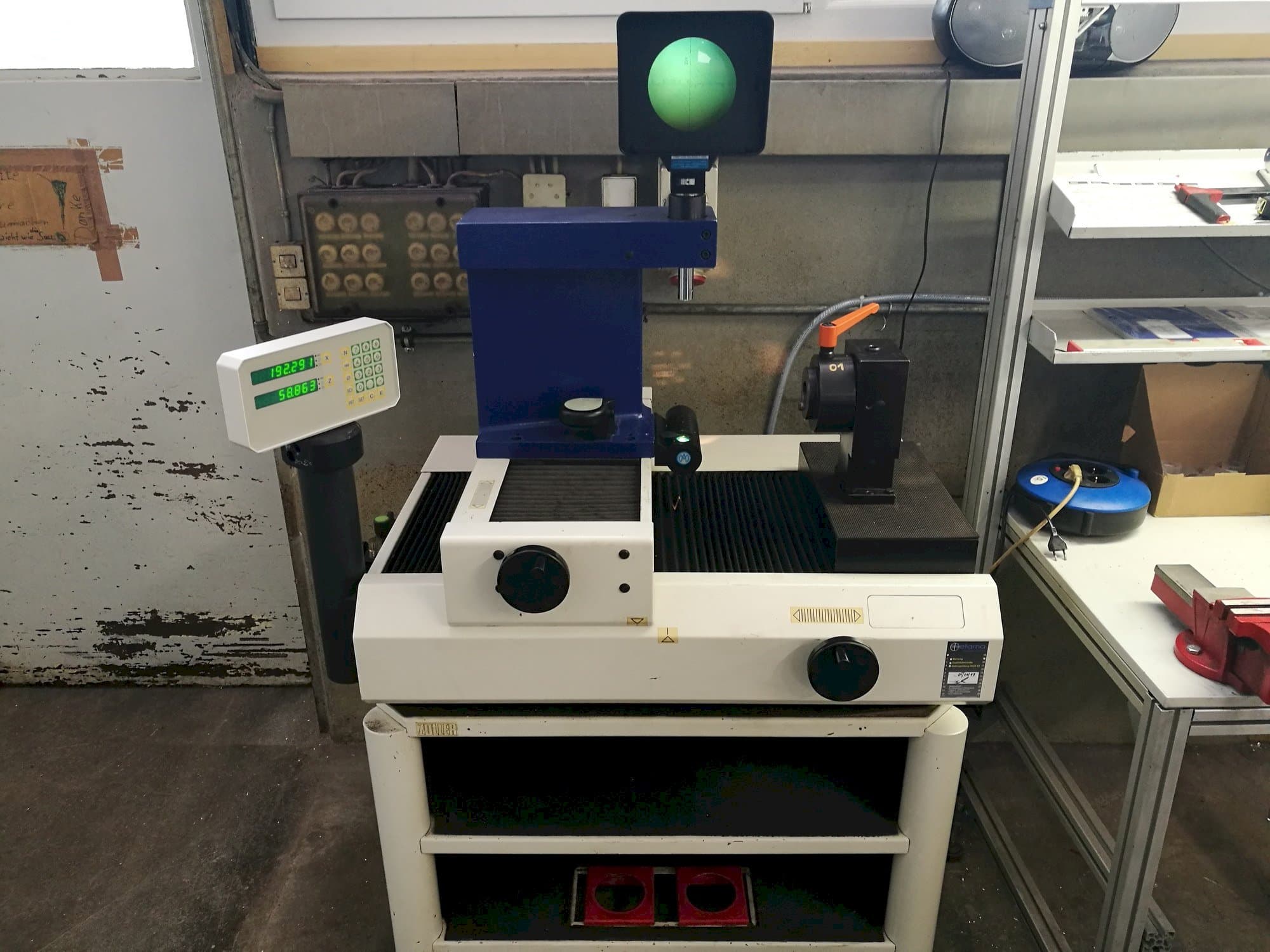

This Zoller H420 Measuring Machine was manufactured in Germany. It is equipped with a digital display control unit. This model comes with a Marcela Aubert camera and a resolution of 1 MP. The machine includes a tool holder VDI40. It was refurbished in 2018.

Overview

brand: Zoller
year: 2018
MODEL: H420
application type: Measuring
Location: Germany
machine type: Optical Measurement Machine
availability: Sold

Technical Information - Zoller H420

General Data

Measurements width: 1000 mm
Measurements depth: 800 mm
Measurements height: 1800 mm
Machine weight: 450 kg

Main drive

Camera: Marcel Aubert
Resolution: 1 MP

Movement

X-AXIS Movement: R 200 mm
Z-AXIS Movement: 400 MM

Table

Number of tslots: 1

Media

Main electronic connection: 230 V
Power consumption: 1 kVA

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Tool holder vdi40
- - Trough light projektor marcel aubert
- - 20 times magnification with rotation crosshair
- - 2 axis digital display
- - Very easy to use
- - 99 adapter zero points

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
