➤ Used ACCUWAY UT-200 For Sale | gindumac.com

Show in original language

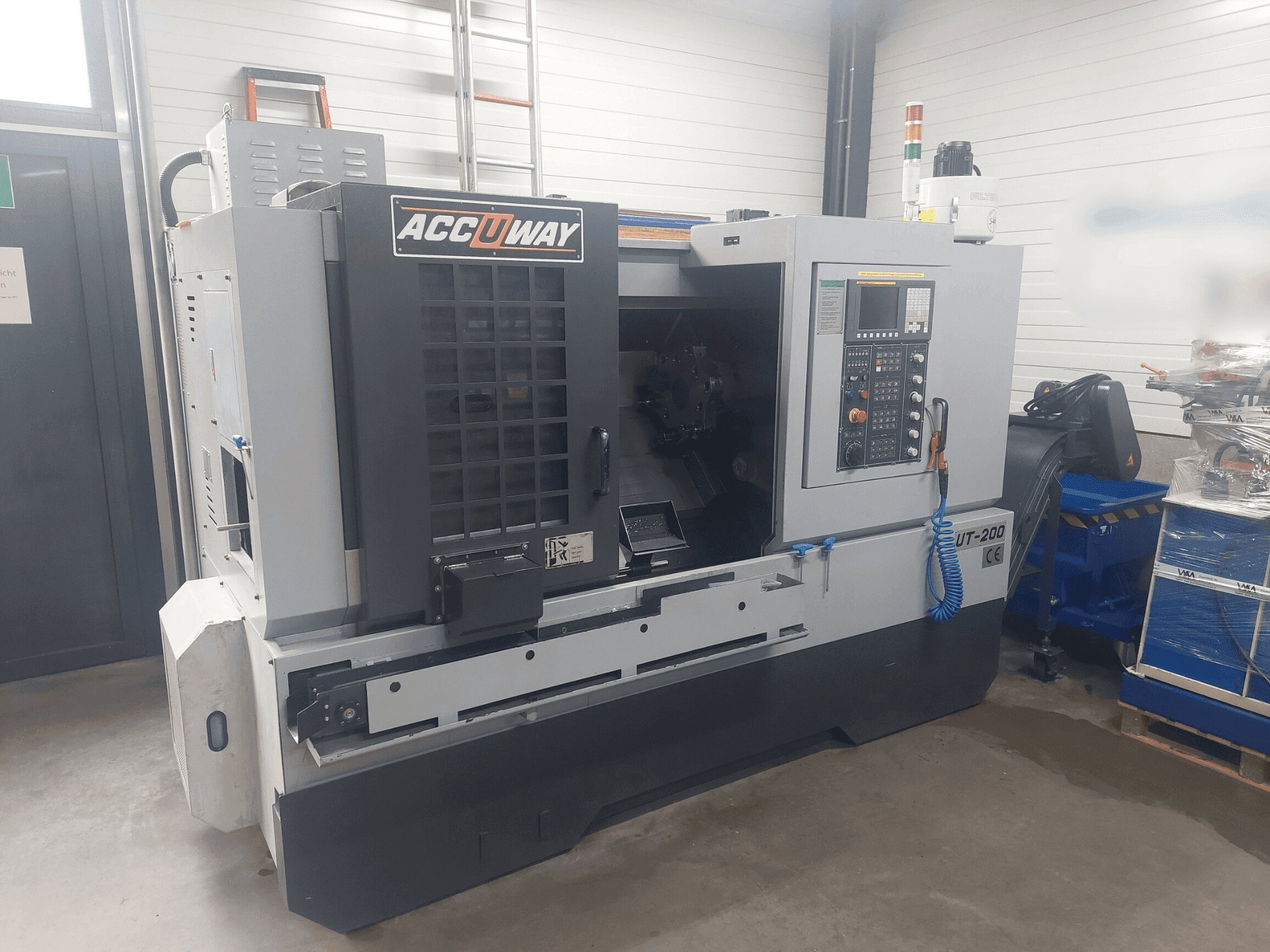

This ACCUWAY UT-200 was manufactured in 2016. A robust horizontal turning machine featuring a 12 station VDI-30 turret, Fanuc Oi-T control for advanced programming, and a main spindle with 11/15 kW power and 4,000 rpm speed. Includes a chip conveyor, high-pressure cooling, and a hydraulic unit. Ideal for precision machining with extensive tooling options and direct drive on all axes. Contact us for more information about this machine.

Overview

brand: ACCUWAY
year: 2016
MODEL: UT-200
application type: Turning
Location: Netherlands
machine type: Horizontal Turning Machine
control unit brand: FANUC

Technical Information - ACCUWAY UT-200

Control Unit

Brand: FANUC
Model: Oi-T

Main drive

Spindle speed range: 4000 1/MIN
Spindle motor power: 11/15 kW
Tool taper: A2-6

Movement

X-AXIS Movement: 220 + 50 MM
X-AXIS Rapid traverse: 20 m/min
Z-AXIS Movement: 600 MM
Z-AXIS Rapid traverse: 20 m/min

Media

Chip conveyor: Yes

Additional equipment

- Hydraulic unit
- Programmable center
- Central lubrication
- Heat exchanger
- Cooling tank with high pressure pump
- Chuck including soft (3 sets) and hard (1 set) jaws
- 3 color warning light including buzzer
- Set of tool holders
- Skimmer
- Filter mist

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Automatic acceleration and deceleration
- - Axes interpolation
- - Memory capacity: 640 meters
- - Program memory: 400
- - Tool offsets: 64
- - 8. 4 inch color screen
- - Graphic display
- - C. A. P. Dialog programming
- - Constant cutting speed
- - Nose radius correction
Qualitative Machine Benefits:
- - Thread cutting
- - Rigid tapping
- - Alarm diagnosis
- - Electronic handwheel
- - Direct drive on all axes
- - Bar passage: 65 mm
- - Vdi-30 servo
- - Number of positions: 12
- - Tool holder: 20 mm
- - Round tool: 32 mm

Extra information

- Machine still Under Power Toolsetter Collection tray/belt Collet chuck 185E High pressure cooling pump Air through turret

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
