ACCUWAY - UT-300NL-TUR-ACC-2018-00001

Name: ACCUWAY UT-300
Brand: ACCUWAY
SKU: NL-TUR-ACC-2018-00001
Price: 16248350 INR
Availability: InStock

Rs. 16,248,350

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used ACCUWAY UT-300 For Sale | gindumac.com

Show in original language

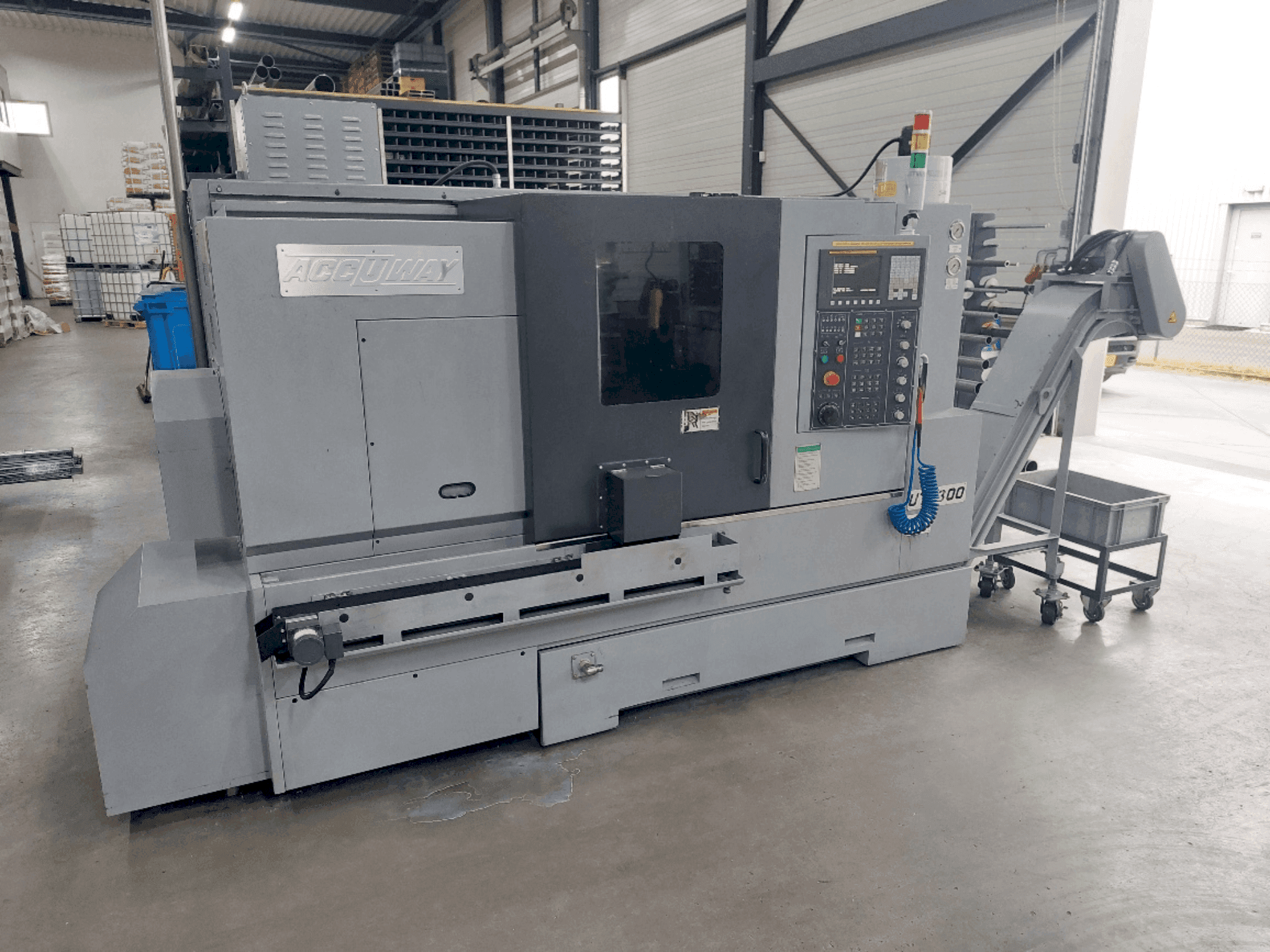

This ACCUWAY UT-300 horizontal turning machine was manufactured in 2018. It features a 12 station VDI-40 servo turret, a high-pressure cooling pump, and a Fanuc Oi-T control system with comprehensive capabilities including rigid tapping and thread cutting. The main spindle supports a 2,700 rpm speed and a bar passage of 90mm. Consider the opportunity to buy this ACCUWAY UT-300 horizontal turning machine. Contact us for more information.

Overview

brand: ACCUWAY
year: 2018
MODEL: UT-300
application type: Turning
Location: Netherlands
machine type: Horizontal Turning Machine
control unit brand: FANUC

Technical Information - ACCUWAY UT-300

Control Unit

Brand: FANUC
Model: Oi-T

Movement

X-AXIS Movement: 250 + 50 MM
X-AXIS Rapid traverse: 20 m/min
Z-AXIS Movement: 700 MM
Z-AXIS Rapid traverse: 24 m/min

Media

Chip conveyor: Yes

Additional equipment

- Hydraulic unit
- VDI-40 servo 12 station turret
- Programmable center
- Central lubrication
- Heat exchanger
- Cooling tank with high pressure pump
- Chuck including soft (3 sets) and hard (1 set) jaws
- 3 color warning light including buzzer
- Skimmer
- Filter mist

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Automatic acceleration and deceleration
- - Axes interpolation
- - Memory capacity 640 meters
- - Program memory 400
- - Tool offsets 64
- - 8. 4 inch color screen
- - Graphic display
- - C. A. P. Dialog programming
- - Constant cutting speed
- - Nose radius correction
Qualitative Machine Benefits:
- - Thread cutting
- - Rigid tapping
- - Alarm diagnosis
- - Electronic handwheel
- - Turning diameter over slide: 388 mm
- - Turning diameter over bed: 612 mm
- - Tool holder: 25 mm
- - Round tool: 40 mm
- - Collection tray / belt
- - Collet chuck 185e

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
