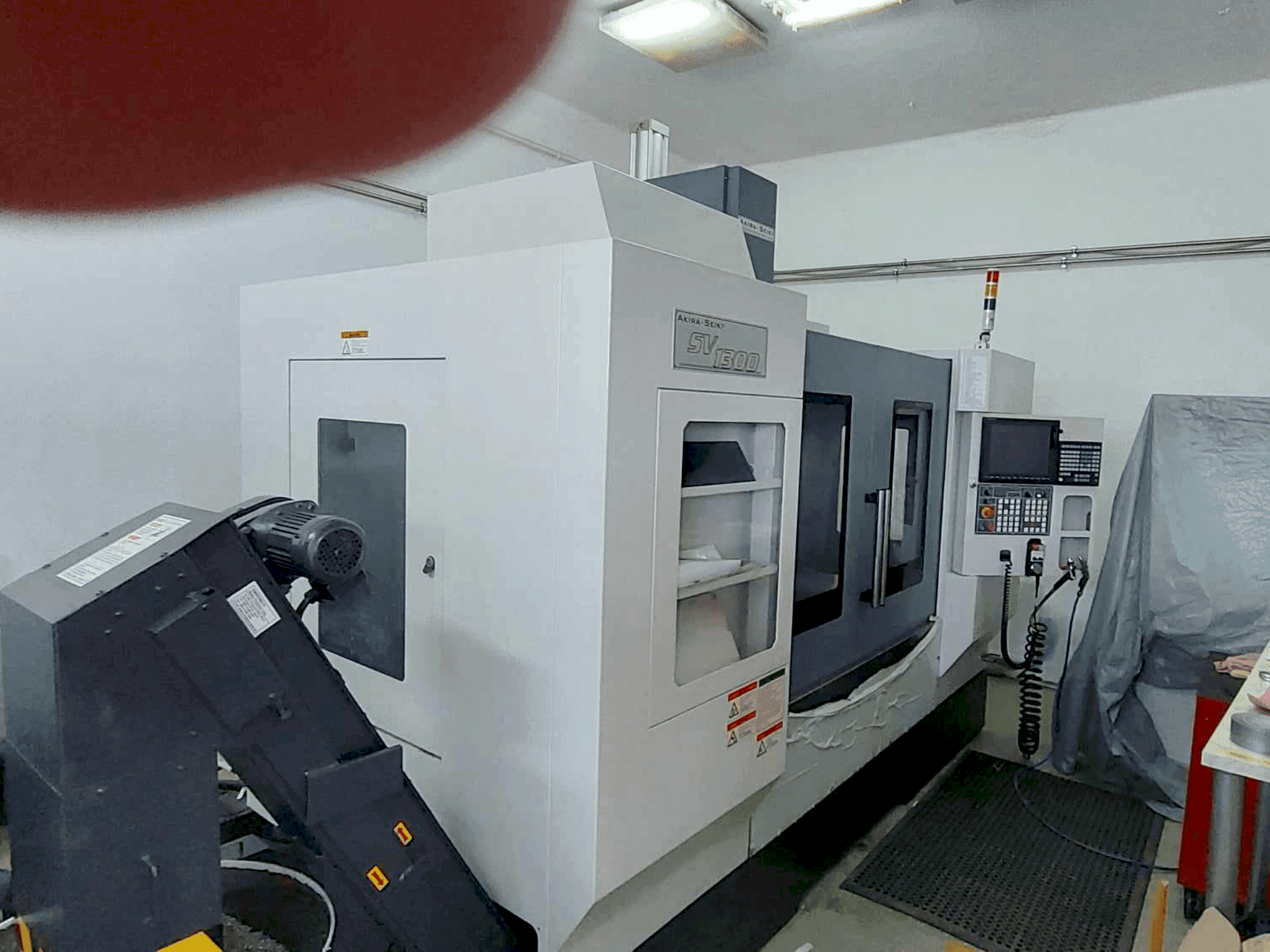

Front view of Akira Seiki SVI300 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Akira Seiki SV 1300

Photo Gallery

Akira Seiki - SV 1300HU-MIL-AKI-2015-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Akira Seiki SV 1300 For Sale | gindumac.com

Show in original language

This 4-axis Akira Seiki SV 1300 vertical machining centre was manufactured in 2015. It features a robust BBT40 spindle with a maximum speed of 15,000 RPM and oil chilling for optimal performance. The machine offers a large table size, rapid feed rates, and a high-capacity ATC with 36 tool slots. Ideal for precision machining with its extensive travel distances and high load capacity. Consider the opportunity to buy this Akira Seiki SV 1300 vertical machining centre. Contact us for more information.

Overview

brand: Akira Seiki
year: 2015
MODEL: SV 1300
production hours: 600
application type: Milling
Location: Hungary
machine type: Vertical Machining Centre
control unit brand: MITSUBISHI

Technical Information - Akira Seiki SV 1300

General Data

Measurements width: 4200 mm
Measurements depth: 2240 mm
Machine weight: 7900 kg

Control Unit

Brand: MITSUBISHI
Model: M720

Main drive

Spindle speed range: 15000 RPM 1/MIN
Spindle motor power: 42 HP
Tool taper: BBT40
Number of axis: 4

Movement

X-AXIS Movement: 1300 mm
X-AXIS Rapid traverse: 48 / M/min
Y-AXIS Movement: 540 mm
Y-AXIS Rapid traverse: 48 / M/min
Z-AXIS Movement: 560 mm
Z-AXIS Rapid traverse: 36 M/min

Tools

Number of index: 36T
Max weight: 7 kg
Max tool diameter: 65 mm
Max tool length: 250 mm

Media

Internal cooling: Yes

Additional equipment

- Chip Disposal: Chain Type Chip Conveyor
- Least command increment: 0.1 μm (Input setting increment 0.1μm)
- Number of index 36T
- Max weight 7 kg
- Max tool diameter 65 mm
- Max tool length 250 mm
- 4.th. Axis drive card and hydraulic unit
- Optional servo rotary table D=255mm, with hydraulic brake
- x and y linear guides: Japanese THK type

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Method of spindle chilling: oil chilling
Qualitative Machine Benefits:
- - Coolant tank capacity: 350/400 liter

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
