AXA VCC 1200 Vertical Machining Center

Show in original language

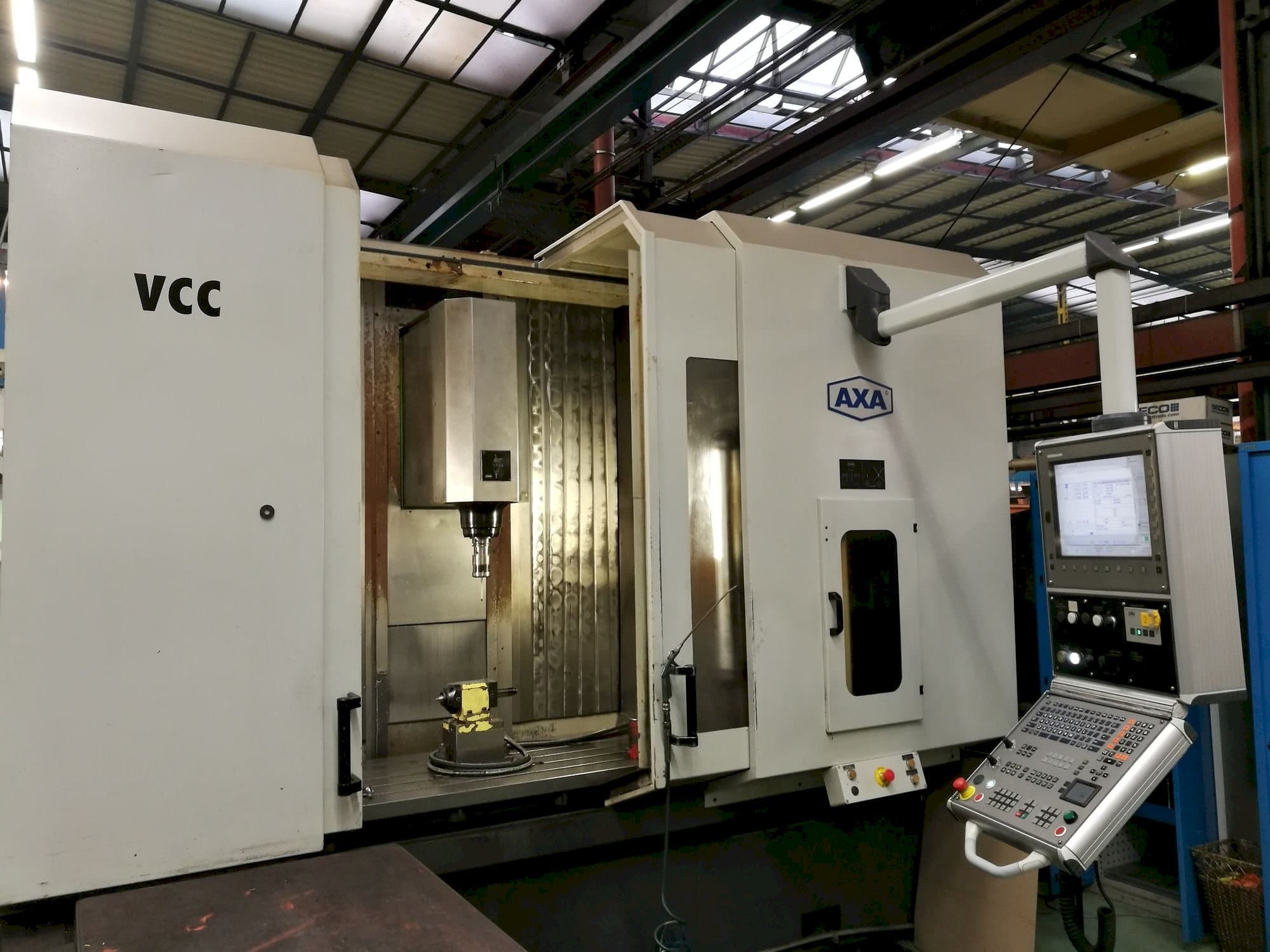

This AXA VCC 1200 Vertical Machining Center was manufactured in Germany in the year 2012. It has been working for 33704 hours since then. It is equipped with a Heidenhain iTNC 530 control unit. This machine has a spindle speed range up to 12000 rpm. It includes a tool holders, a renishaw workpiece probe, and a Heidenhain TT 140 tool probe. This AXA has been regularly maintained and serviced.

Overview

brand: AXA
year: 2012
MODEL: VCC 1200
production hours: 33704
application type: Milling
Location: Czech Republic
machine type: Vertical Machining Centre
control unit brand: HEIDENHAIN

Technical Information - AXA VCC 1200

General Data

Measurements width: 3300 mm
Measurements depth: 2300 mm
Measurements height: 2700 mm
Machine weight: 9000 kg

Control Unit

Model: iTNC 530
Brand: HEIDENHAIN

Main drive

Number of spindles: 1
Spindle speed range: 12000 1/MIN

Movement

X-AXIS Movement: 1200 mm
Y-AXIS Movement: 600 mm
Z-AXIS Movement: 700 mm

Tools

Slots in storage: 30
Max weight: 8 kg
Max tool diameter: 85/135 mm
Max tool length: 400 mm
Type of tool holder: HSK-A63

Media

Power consumption: 55 kVA
Chip conveyor: Yes

Additional Information

Machine Benefits

Qualitative Machine Benefits

Regularly maintained and serviced

Technical Machine Benefits

Spindle power (40/100% ed) 30/20 kw
Spindle torque (40/100% ed) 143/95 nm
4th axis nikken cnc 321
Central oil lubrication
Cooling thru spindle
Flushing gun
Filtermist
Electronic handwheel
External & internal air cooling

Machine History

Industries

Automotive, various

Material type

Grey steel
