AXA VSC 3 Vertical Machining Center

Show in original language

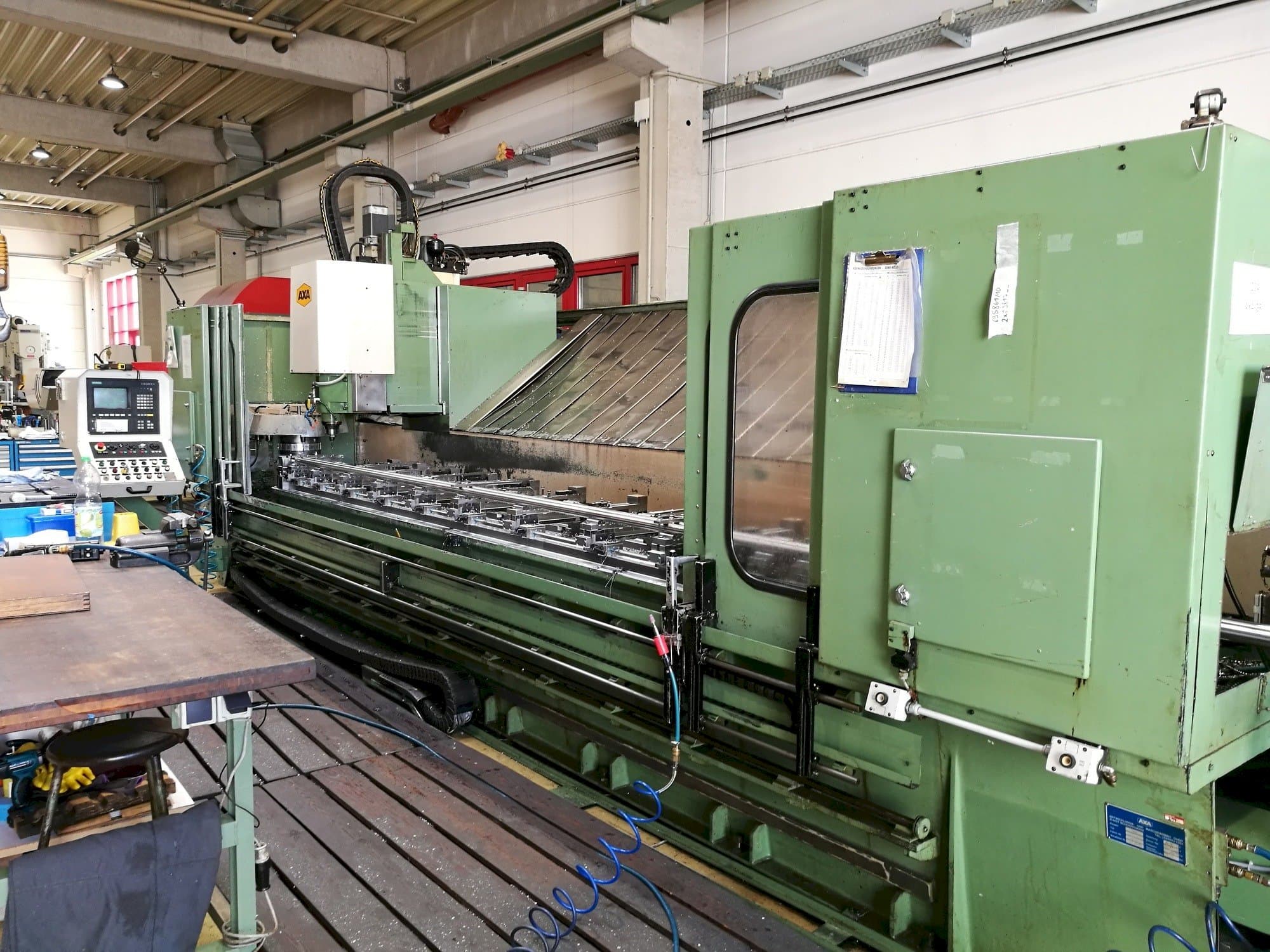

This AXA VSC 3 Vertical Machining Center was made in 1992 in Germany and has been on for 30753 hours. Equipped with a SMENES 810 D Control unit, this machine has a spindle speed range of 60 to 6000 rpm. It presents perfectly good conditions, as it has been regularly serviced.

Overview

brand: AXA
year: 1992
MODEL: VSC 3
production hours: 30753
application type: Milling
Location: Austria
machine type: Vertical Machining Centre
control unit brand: SIEMENS

Technical Information - AXA VSC 3

General Data

Measurements width: 7200 mm
Measurements depth: 3400 mm
Measurements height: 3100 mm
Machine weight: 18000 kg

Control Unit

Model: 810D
CNC main language: German
CNC language customizable: Yes
Brand: SIEMENS

Main drive

Number of spindles: 1
Spindle speed range: 60-6000 1/MIN

Movement

X-AXIS Movement: 4635 mm
Y-AXIS Movement: 700 mm
Z-AXIS Movement: 480 mm

Table

Outer length: 4000 mm
Outer width: 400 mm

Tools

Slots in storage: 2 times 22
Type of tool holder: SK40 DIN69871

Media

Main electronic connection: 3x380 V
Power consumption: 28 kVA
Chip conveyor: Yes
Internal cooling: Yes

Additional Information

Additional equipment

B axes - round table (adjustable)- upon request

Machine Benefits

Qualitative Machine Benefits

New chip conveyor
Regularly serviced

Technical Machine Benefits

300 liter cooling tank
7 bar cooling pressure
2 toolchange (left and right at the end of x axes)

Machine History

End product

Linear guidance parts

Material type

Steel

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
