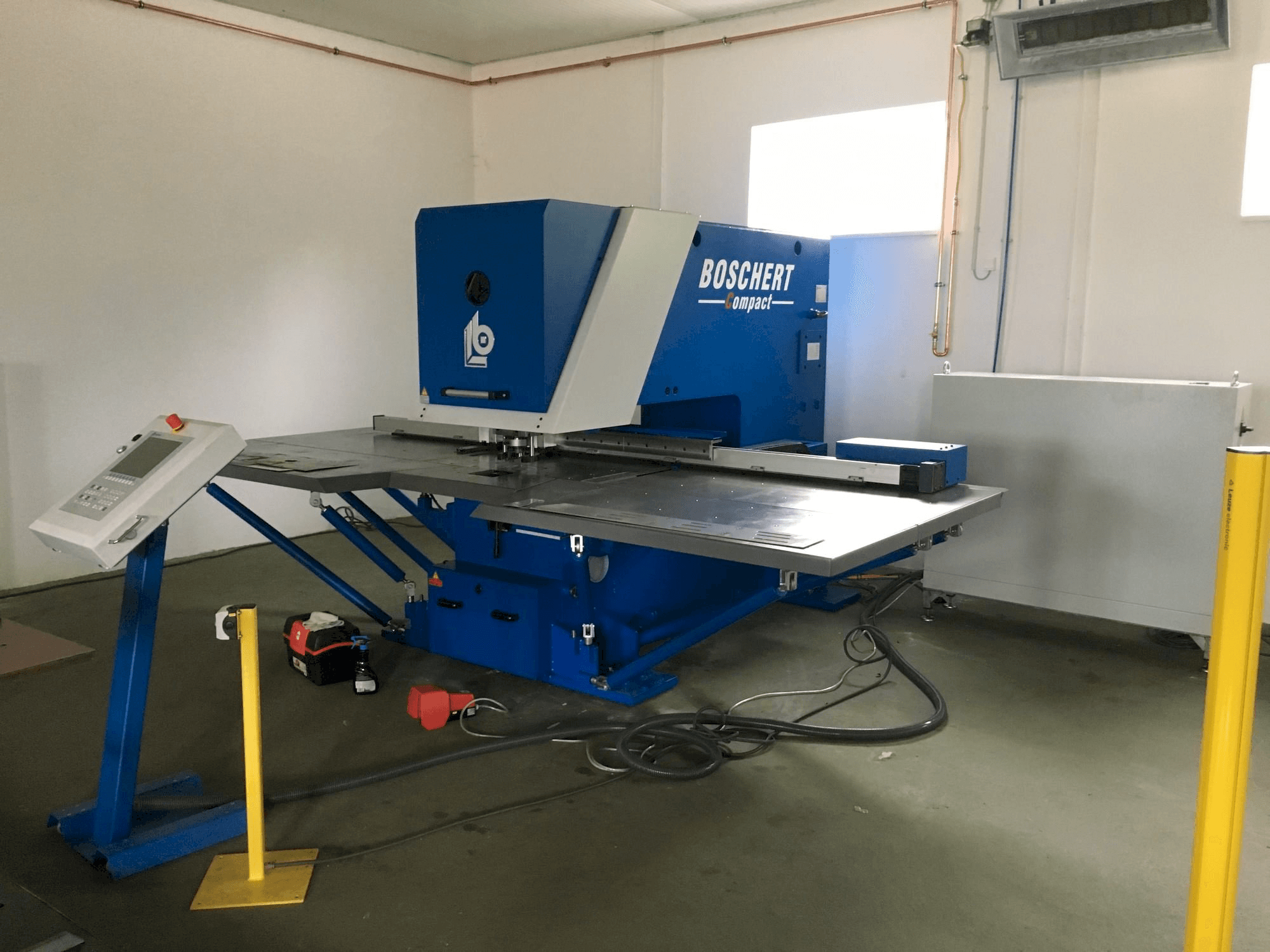

This BOSCHERT Compact 750 Punching machine was manufactured in 2018. It has a table size of 750 mm (X-axis) and 2000 mm (Y-axis) and a punching depth of 750 mm with a maximum punching diameter of 105 mm. This punching machine is equipped with a punching force of up to 40 tons. Maximum cutting thickness for normal steel is at 6mm. It is build in a C-frame construction with appropriate oversizing. The cantilever structure allows for machining of parts larger than the machining space.
Overview
- brand: BOSCHERT
- year: 2018
- MODEL: Compact 750 (2018)
- production hours: 40
- application type: Punching
- Location: Hungary
- machine type: Turret Punch Press
- control unit brand:
Technical Information - BOSCHERT Compact 750 (2018)
Dimensions
- Machine Depth: 3165 mm
- Machine Height: 2100 mm
- Machine Weight: 14500 kg
Movement
- X-axis Travel: 750 mm
- Y-axis Travel: 2000 mm
Additional Information
Additional equipment
- Stripper holder with slots for pins
- Punch adjustment ring for punches up to diam. 30mm
- Punch adjustment ring for punches over diam. 30mm
- Punch holder for needles up to 6mm
- Punch holder for needles up to 10.5mm
- Punch adjustment unit for rectangle. oblong and square tools
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
