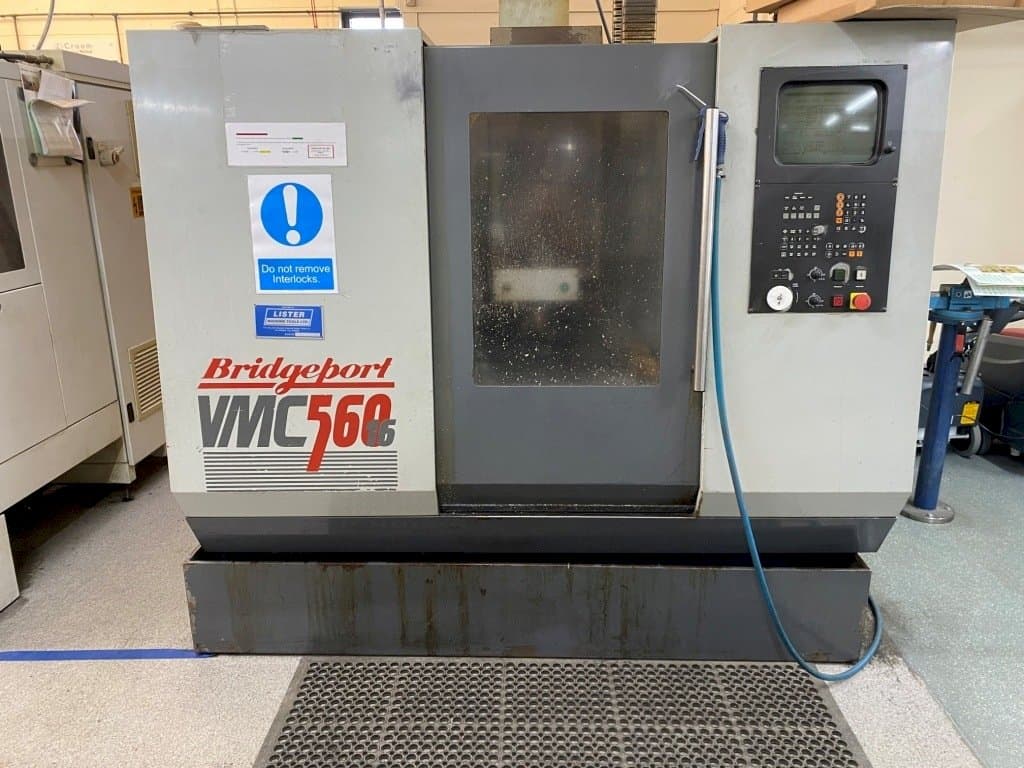

Front view of Bridgeport VMC 560/16 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Bridgeport VMC 560/16

Photo Gallery

Bridgeport - VMC 560/16IE-MIL-BRI-1992-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Bridgeport VMC 560/16

Show in original language

This Bridgeport VMC 560/16 Vertical Machine Center was built in United Kingdom in the year 1992. This 3 axis machine operates through a Heidenhain CNC2500 control unit. It has a spindle speed up to 6000 rpm. This machine has mainly worked in the medical device industry. It is a well maintained machine and in good condition.

Overview

brand: Bridgeport
year: 1992
MODEL: VMC 560/16
application type: Milling
Location: Ireland
machine type: Vertical Machining Centre
control unit brand: HEIDENHAIN

Technical Information - Bridgeport VMC 560/16

General Data

Measurements width: 2100 mm
Measurements depth: 2000 mm
Measurements height: 2500 mm
Machine weight: 2500 kg

Control Unit

Model: CNC2500
CNC main language: ENGLISH
Brand: HEIDENHAIN

Main drive

Number of spindles: 1
Spindle speed range: 6000 1/MIN
Number of axis: 3

Movement

X-AXIS Movement: 560 MM
Y-AXIS Movement: 410 MM
Z-AXIS Movement: 520 MM

Table

Outer length: 840 MM
Outer width: 420 MM

Tools

Slots in storage: 16
Max weight: 6 KG
Max tool diameter: 75 MM
Max tool length: 250 MM
Type of tool holder: BT40

Media

Main electronic connection: 400 V

Additional Information

Machine Benefits

Qualitative Machine Benefits

Well maintained machine
In good condition

Machine History

Industries

Medical device industry

End product

Medical device parts

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
