Bridgeport VMC 800.22 Machining Center

Show in original language

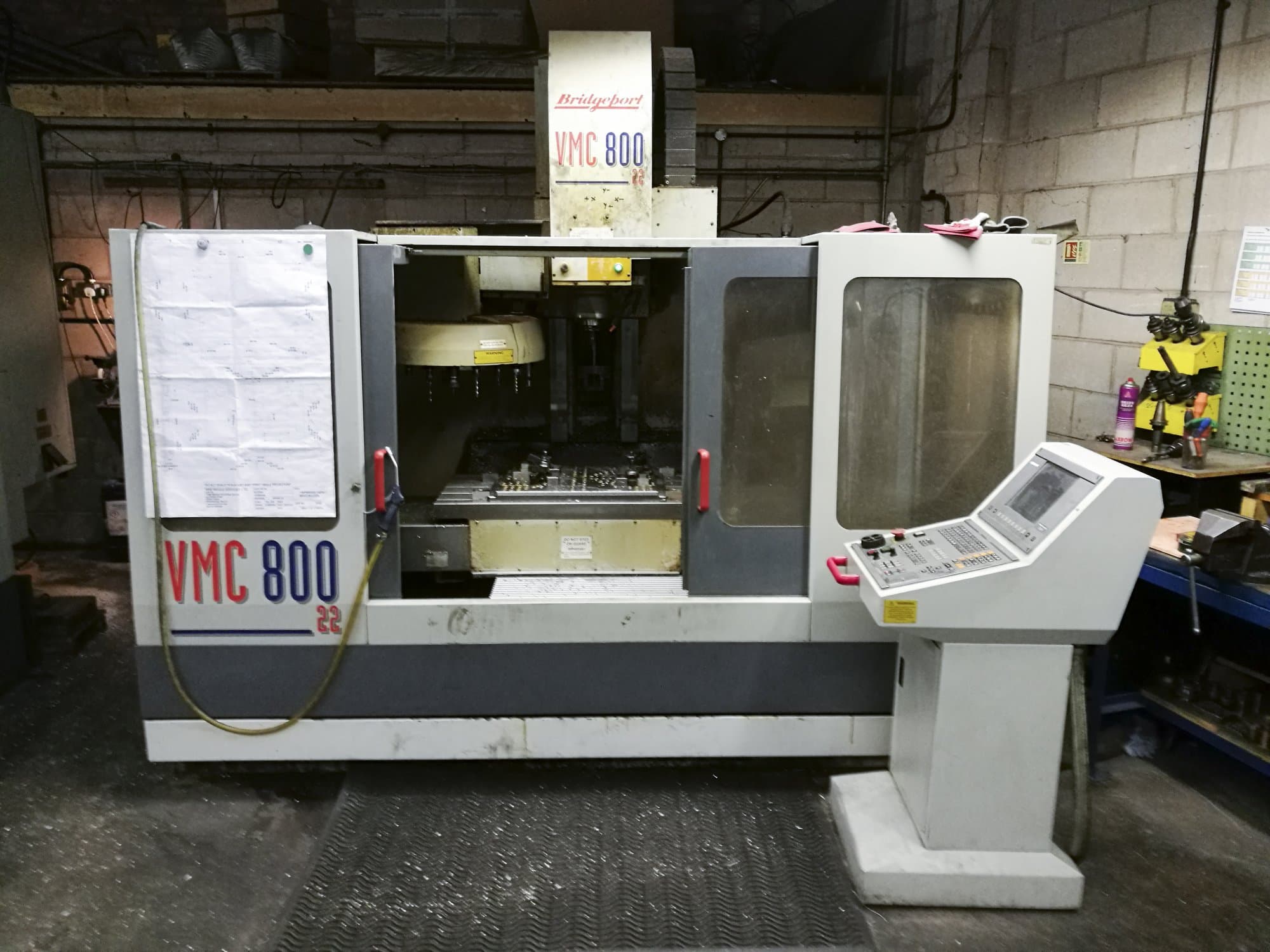

This Bridgeport VMC 800.22 Machining Center from 1997 is operated through a HEIDENHAIN control unit. Aside from its 900-kilogram workpiece weight capacity, the machine stands out for its 22x tool changer.

Overview

brand: Bridgeport
year: 1997
MODEL: VMC 800.22
application type: Milling
Location: United Kingdom
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - Bridgeport VMC 800.22

General Data

Measurements width: 3000 mm
Measurements depth: 2000 mm
Measurements height: 2300 mm
Machine weight: 3600 kg

Control Unit

Brand: HEIDENHAIN

Main drive

Number of spindles: 1
Spindle speed range: 40-6000 1/min
Tool taper: BT40

Movement

X-AXIS Movement: 800 mm
Y-AXIS Movement: 510 mm
Z-AXIS Movement: 500 mm

Workpiece

Workpiece weight: 900 kg

Table

Outer length: 1000 mm
Outer width: 490 mm
Number of tslots: 5

Tools

Slots in storage: 22
Max tool length: 250 mm

Media

Main electronic connection: 400 V / 50 Hz
Power consumption: 11 kVA

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
