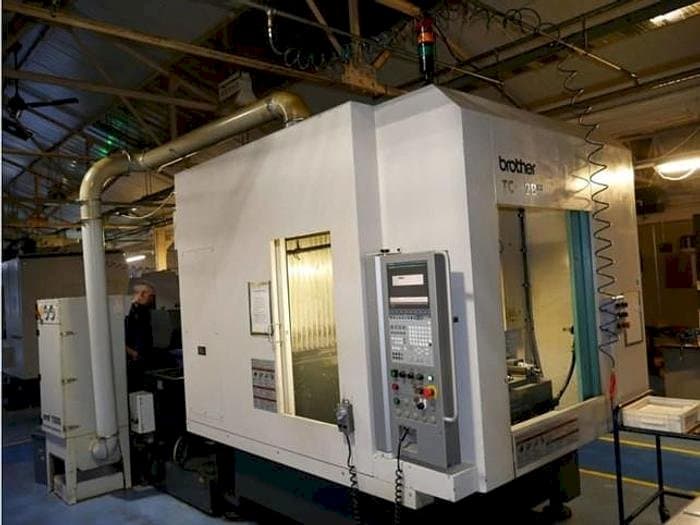

Brother TC-32 BN QT Vertical Machine Center

Show in original language

This Brother TC-32 BN QT Vertical Machine Center was manufactured in 2006. It is equipped with a Brother control unit. The machine has a spindle speed of 16 - 16000 rpm.

Overview

brand: Brother
year: 2006
MODEL: TC-32 BN QT
application type: Milling
Location: Italy
machine type: Vertical Machining Centre
availability: Sold
control unit brand: BROTHER

Technical Information - Brother TC-32 BN QT

Control Unit

Brand: BROTHER

Main drive

Spindle speed range: 16 - 16000 1/MIN
Spindle motor power: 10 kw
Number of axis: 3

Movement

X-AXIS Movement: 550 mm
X-AXIS Rapid traverse: 70 m/min
Y-AXIS Movement: 400 mm
Y-AXIS Rapid traverse: 70 m/min
Z-AXIS Movement: 415 mm
Z-AXIS Rapid traverse: 70 m/min

Table

Outer length: 600 mm
Outer width: 425 mm
Table load: 200 kg

Additional equipment

- Chip conveyor, Through spindle coolant

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Distance between table-spindle nose: 645 mm
- - Spindle taper: nikken nc5
- - Tool turret atc: 26+1 positions

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
