Butler Elgamill Milling machine

Show in original language

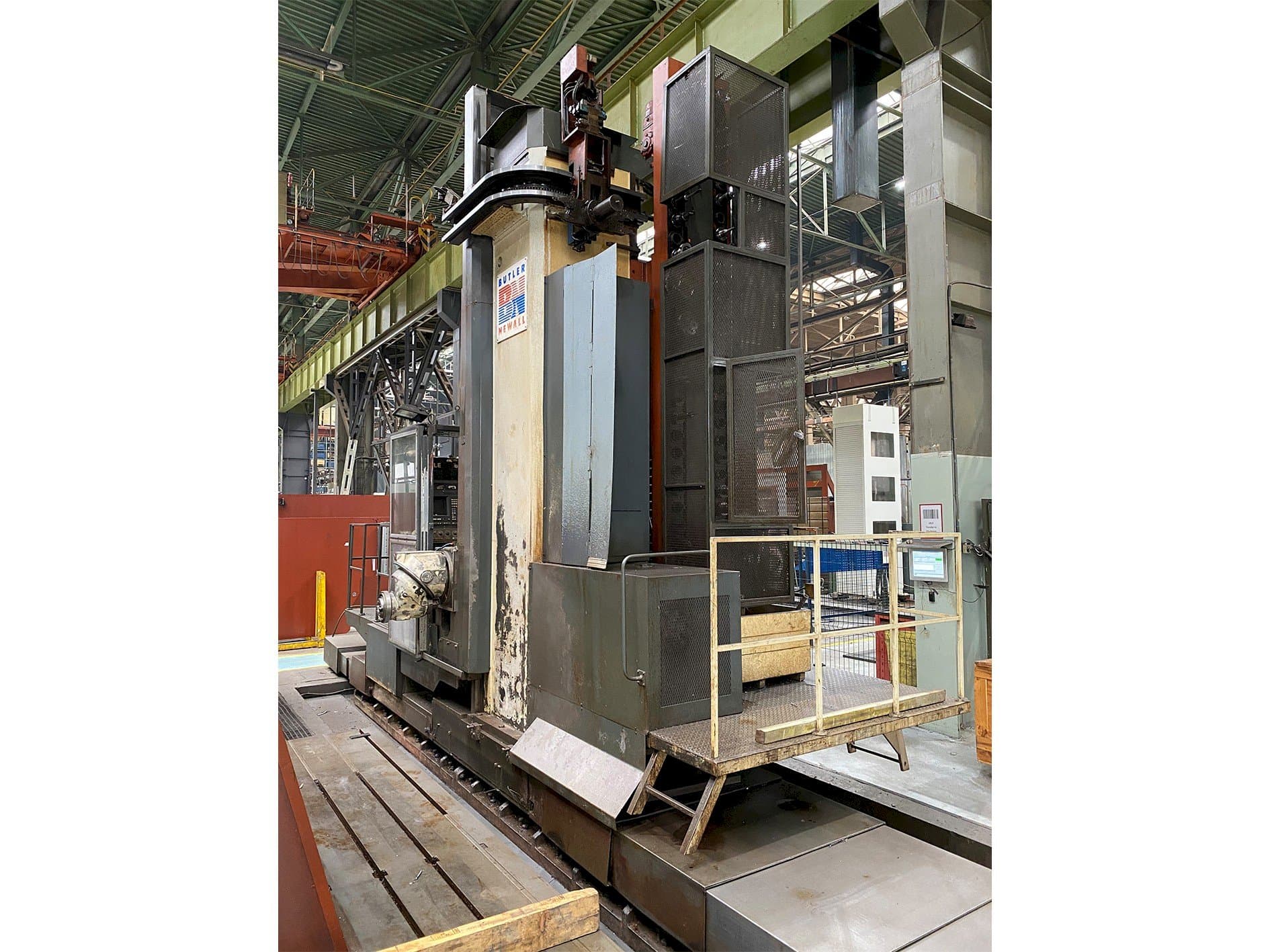

This Butler Elgamill Milling machine was built in 1991 in France. It operated through a Siemens Sinumerik 850 control unit. This machine has a spindle speed up to 2000 rpm and an universal head.

Overview

brand: Butler
year: 1991
MODEL: Elgamill
application type: Milling
Location: Slovakia
machine type: Gantry Milling Machine
availability: Sold
control unit brand: SIEMENS

Technical Information - Butler Elgamill

Control Unit

Model: Sinumerik 850
Brand: SIEMENS

Main drive

Spindle speed range: 2000 1/MIN

Movement

X-AXIS Movement: 20000 mm
Y-AXIS Movement: 2800 mm
Z-AXIS Movement: 1050 mm

Workpiece

Workpiece weight: 1200 kg

Tools

Slots in storage: 60
Max weight: 25 kg
Max tool diameter: 120/200 mm
Max tool length: 440 mm
Type of tool holder: ISO 50

Additional Information

Machine history

End product: Machinery

Machine Benefits

Technical Machine Benefits:
- - Main motor power 30 kw
- - Max. Feedrate 7000 mm/min
- - Universal head
- - Rotary table tos iso 16, 2200x2000 mm, capacity 16 ton
- - Floor plates (fixed tables), 4 pieces 5000x2000 mm
Qualitative Machine Benefits:
- - Defunct control system needs repair

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
