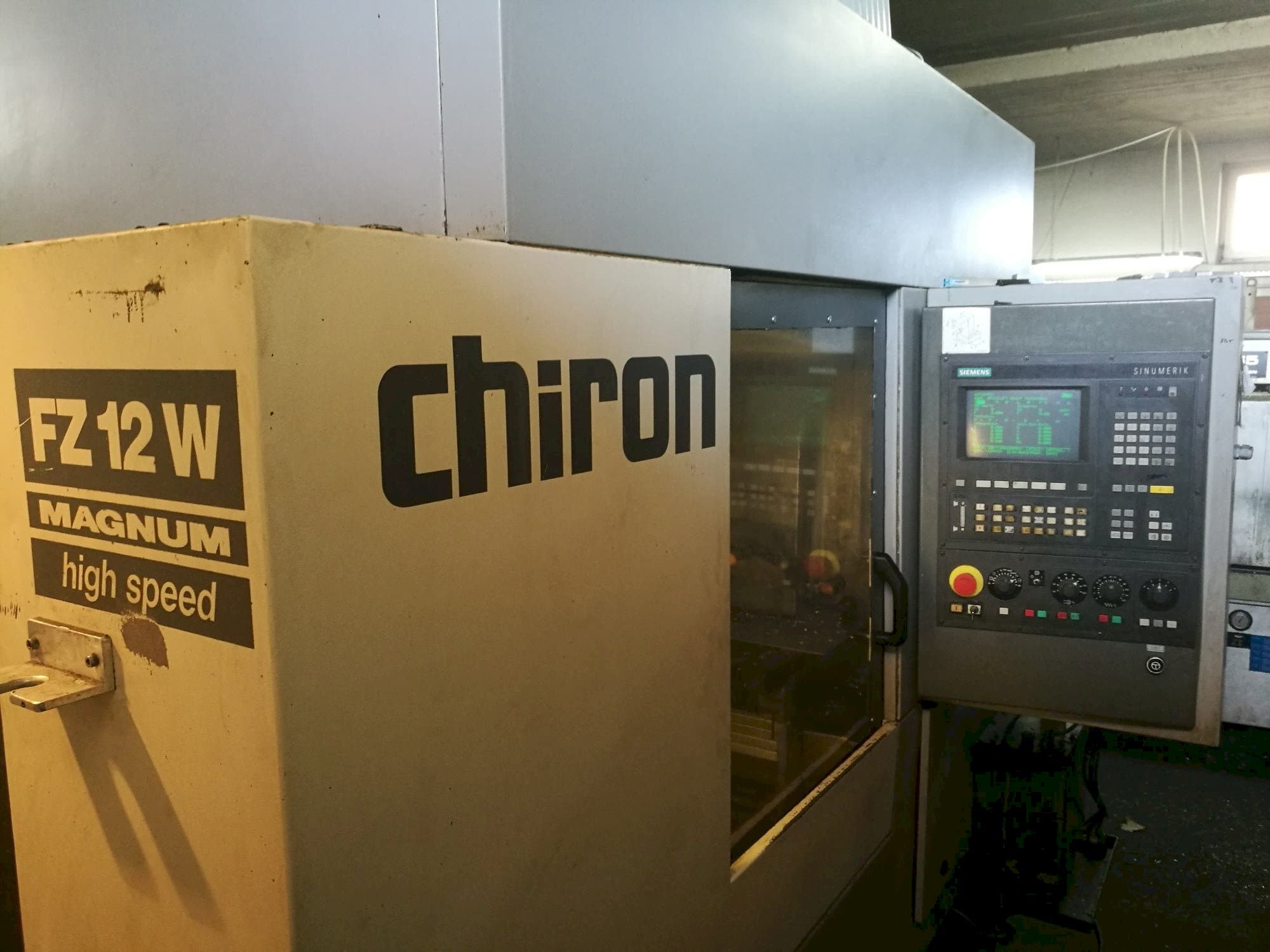

Front view of CHIRON FZ 12 W Magnum machine
Front view of CHIRON FZ 12 W Magnum machine

Thank you for your visit

This machine was recently sold.

Browse similar machines

CHIRON - FZ 12 W MagnumPL-MIL-CHI-1996-00001

Sold

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This Chiron FZ 12 W Magnum Vertical Machining Center was made in Germany in 1996 and is operated through a Siemens Sinumerik 810 M control unit. This model comes with a chip conveyor KNOLL, a filter KNOLL and a 2 x 4th axis Peiseler RT 160 with hydraulic brake.

Overview

  • brand: CHIRON
  • year: 1996
  • MODEL: FZ 12 W Magnum
  • application type: Milling
  • Location: Poland
  • machine type: Vertical Machining Centre
  • availability: Sold
  • control unit brand: SIEMENS

Technical Information - CHIRON FZ 12 W Magnum

General Data

  • Measurements width: 2240 mm
  • Measurements depth: 3550 mm
  • Measurements height: 2450 mm
  • Machine weight: 4000 kg

Control Unit

  • Model: Sinumerik 810 M
  • Brand: SIEMENS

Movement

  • X-AXIS Movement: 550 mm
  • Y-AXIS Movement: 300 mm
  • Z-AXIS Movement: 425 mm

Table

  • Outer length: 300 mm
  • Outer width: 660 mm

Media

  • Main electronic connection: 3 x 400V 50/60Hz
  • Power consumption: 19 kVA
  • Chip conveyor: Yes
  • Internal cooling: Yes

    Additional equipment

    • - Chip conveyor KNOLL
    • - Filter KNOLL
    • - 2 x 4th axis Peiseler RT 160 with hydraulic brake

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

    Your account manager:

    Sergi Guardia

    Sergi Guardia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

    get in contact

    Payment Terms

    • Payment in advance

    • Asset Financing
