➤ Used CHIRON FZ08S | Vertical Machining Center

Show in original language

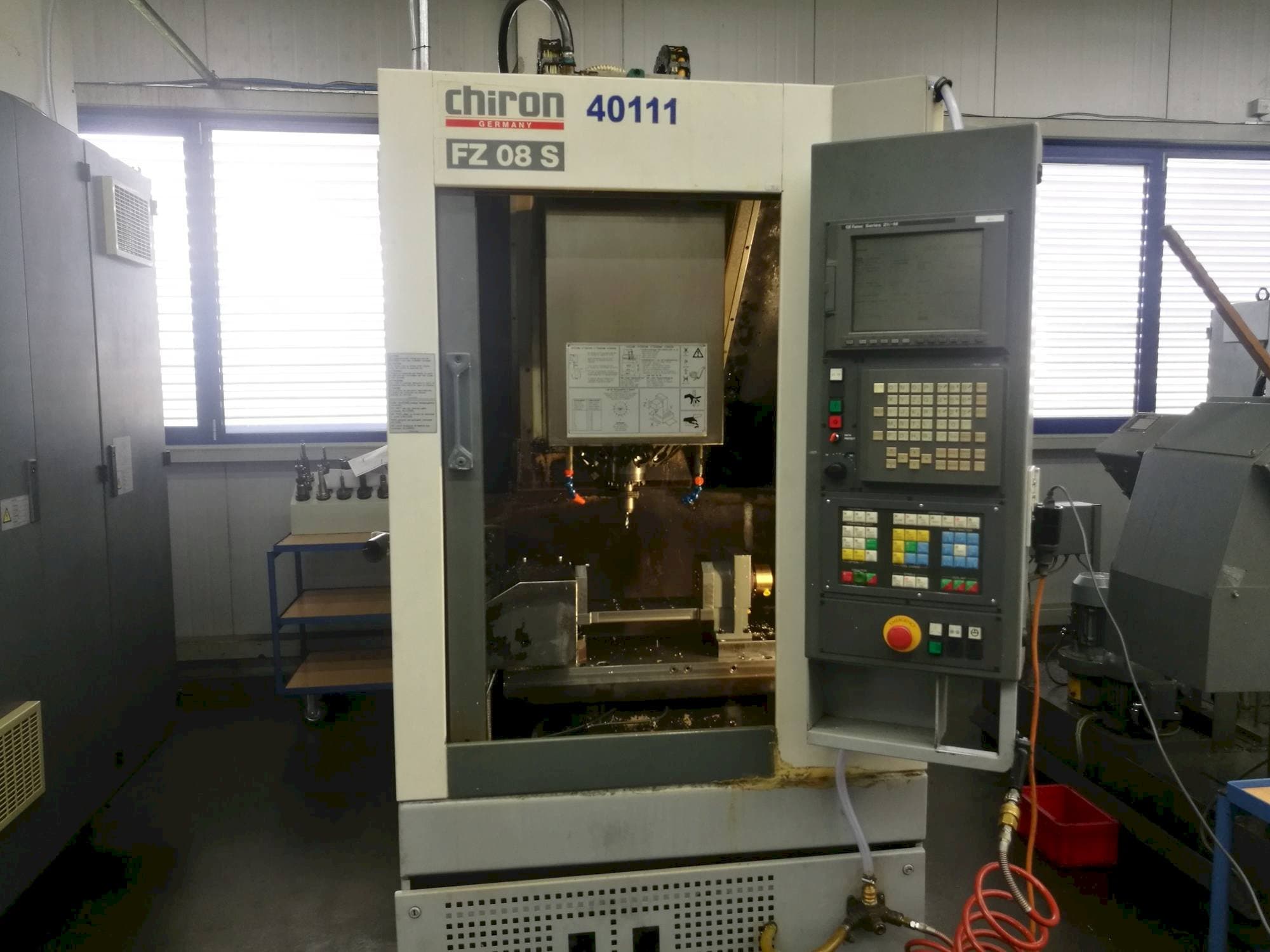

This CHIRON FZ08S Vertical Machining Center was built in the year 2000 in Germany and has a production record of 40500 hours. Equipped with a FANUC 21 iM Control unit, this fast machine incorporates a spindle speed up to 10500 rpm. It presents perfectly good conditions, as it has been regularly maintained.

Overview

brand: CHIRON
year: 2000
MODEL: FZ08S
production hours: 40500
application type: Milling
Location: Croatia
machine type: Vertical Machining Centre
control unit brand: FANUC

Technical Information - CHIRON FZ08S

General Data

Measurements width: 1000 mm
Measurements depth: 2000 mm
Measurements height: 2350 mm
Machine weight: 1820 kg

Control Unit

Model: 21 iM
CNC main language: German
CNC language customizable: Yes
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 10500 rpm 1/MIN

Movement

X-AXIS Movement: 300 mm
Y-AXIS Movement: 250 mm
Z-AXIS Movement: 425 mm
B-AXIS Movement: 360° MM

Table

Outer length: 620 mm
Outer width: 260 mm

Tools

Slots in storage: 12
Max tool diameter: 63 mm
Max tool length: 160 mm
Type of tool holder: HSK32

Media

Main electronic connection: 380 V
Power consumption: 13 kVA

Additional equipment

- 4axis rotary unit 360° Peiesler 250x100mm
- chip box
- tool holders

Additional Information

Machine history

Material type: Aluminium
End product: Medical instruments
Industries: Medical industry

Machine Benefits

Technical Machine Benefits:
- - 4 axis rotary unit
Qualitative Machine Benefits:
- - Regulary maintained

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
